4.1.2 Center Winder Option Terminals

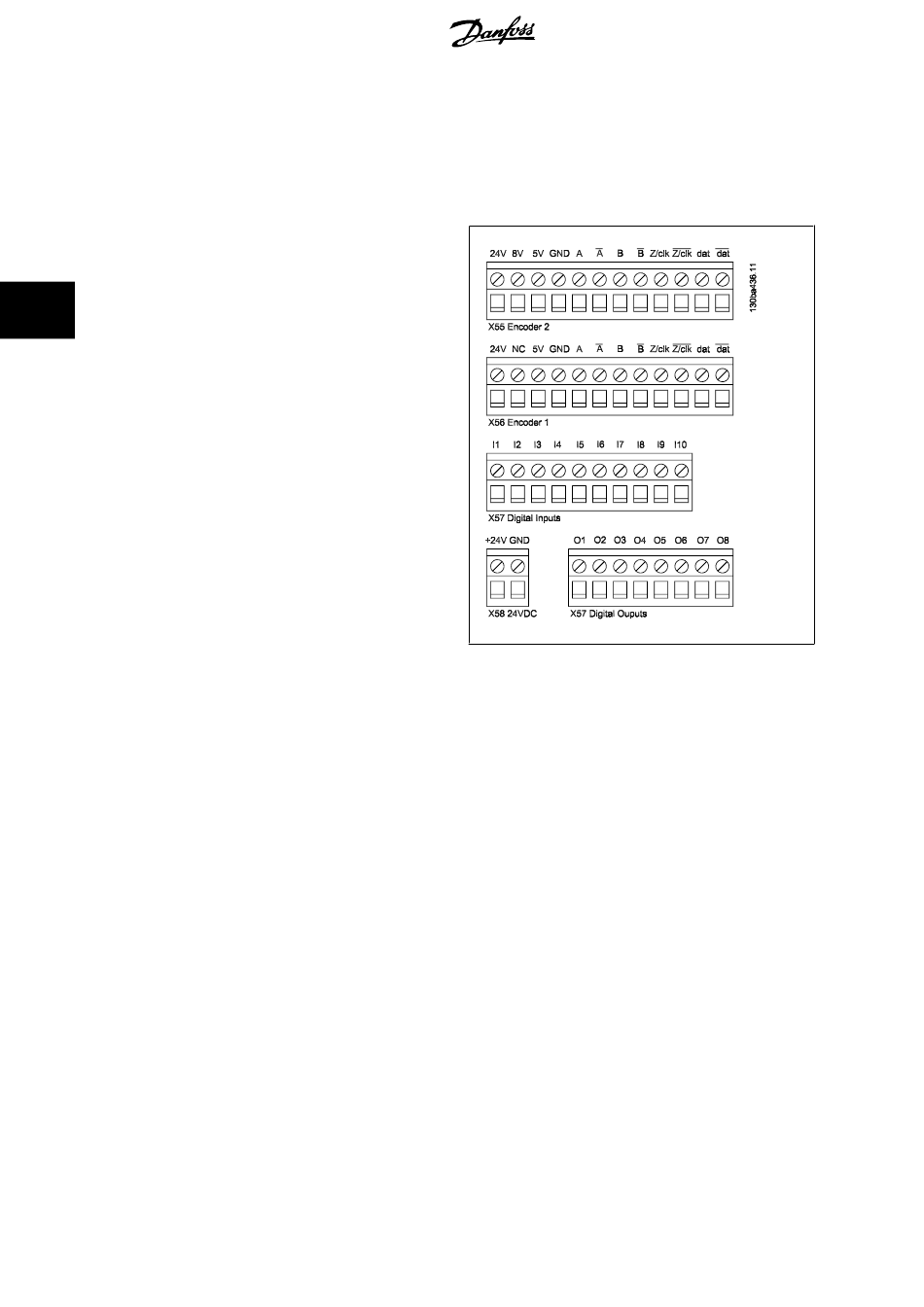

The figure below shows the five green terminal strips on the MCO 305 Option Card. The 24V supply on the digital input and output terminal strips are
internally connected to the VLT AutomationDrive +24V supply available at terminals 12 & 13. The COM is connected to VLT AutomationDrive terminal
39. An external 24 VDC power supply can be used. See the MCO 305 Instruction Manual for details on setting MCO Supplied by external 24 VDC (parameter
33-85). The isolated 5V/400mA and 8V/250mA encoder supply is generated on the MCO 305 Card from the 24 V power supply.
X55
is always used for winder/unwinder speed
X56
4
is always used for line speed
X57 Digital Inputs
I1 Over/under winding
I2 Winder jog reverse
I3 Winder jog forward
I4 Partial roll select
I5 Tension on/off (reset)
I6 Material select
I7 Core select
I8 Diameter reset
X59 Digital Outputs
O1 End of roll indicator
O2 TLD indicator
O3 Running on tension
O4 Ready
