The FC 300 Graphical and Numerical LCP

The easiest programming of FC 300 frequency converters is performed by the Graphical Local Control
Panel (G-LCP). It is necessary to consult FC 300 Design Guide when using Numeric Local Control Panel
(N-LCP).

How to Programme on the Graphical LCP

The following instructions are valid for the graphical LCP ( LCP 102 ):

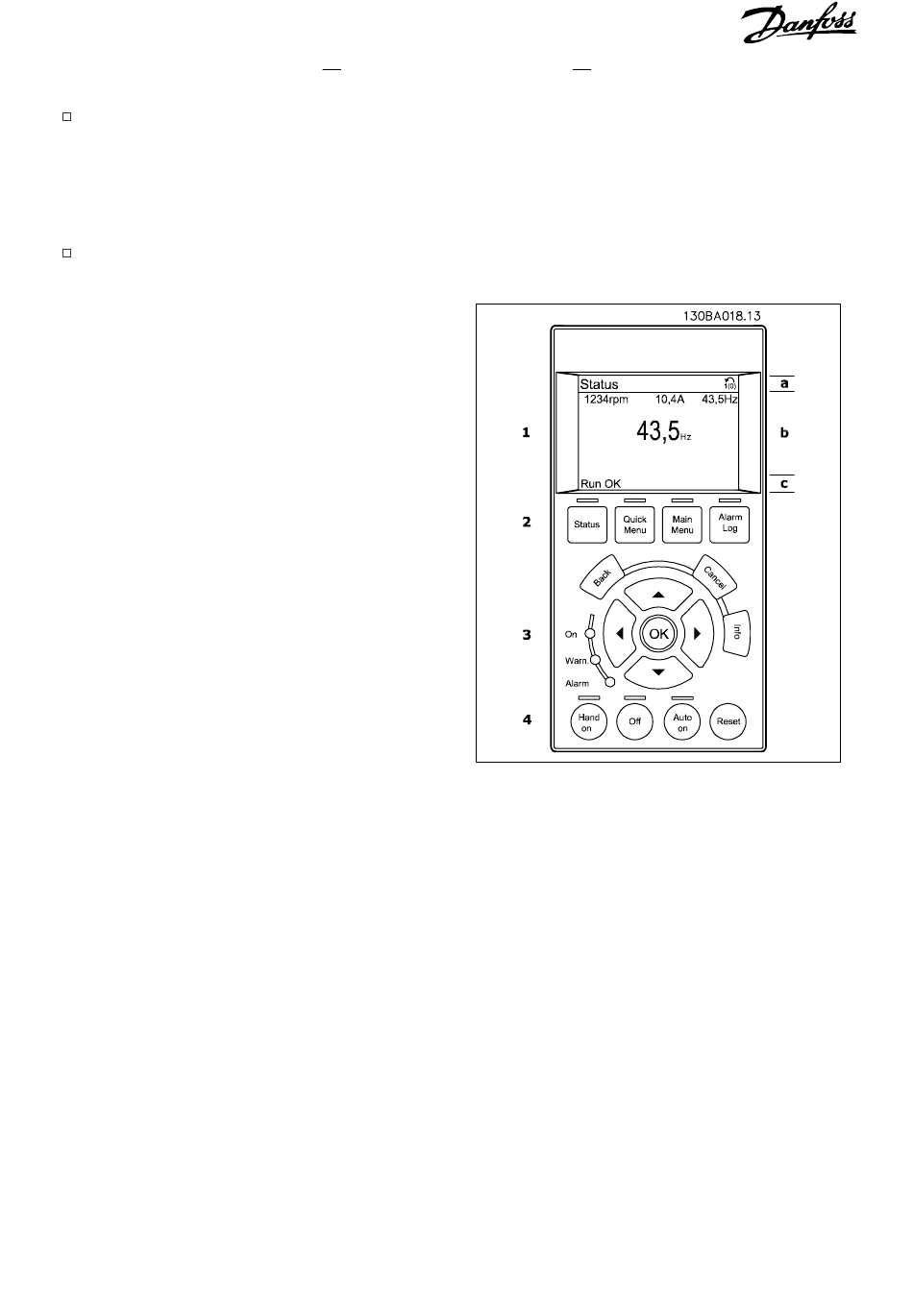

The control panel is divided into four functional
groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights - changing
parameters and switching between dis-
play functions.
3. Navigation keys and indicator lights
( LEDs ).
4. Operation keys and indicator lights
(LEDs).
All data is displayed in a graphical LCP display,
which can show up to five items of operating data
while displaying [Status].
Display lines:
a. Status line: Status messages display-
ing icons and graphic.
b. Line 1-2: Operator data lines displaying
data defined or chosen by the user. By
pressing the [Status] key, up to one extra
line can be added.
c. Status line: Status messages displaying
text.

How to Programme
