Connection Examples; Start/Stop; Pulse Start/Stop - Danfoss VLT AutomationDrive FC 300 Operating Instructions Manual

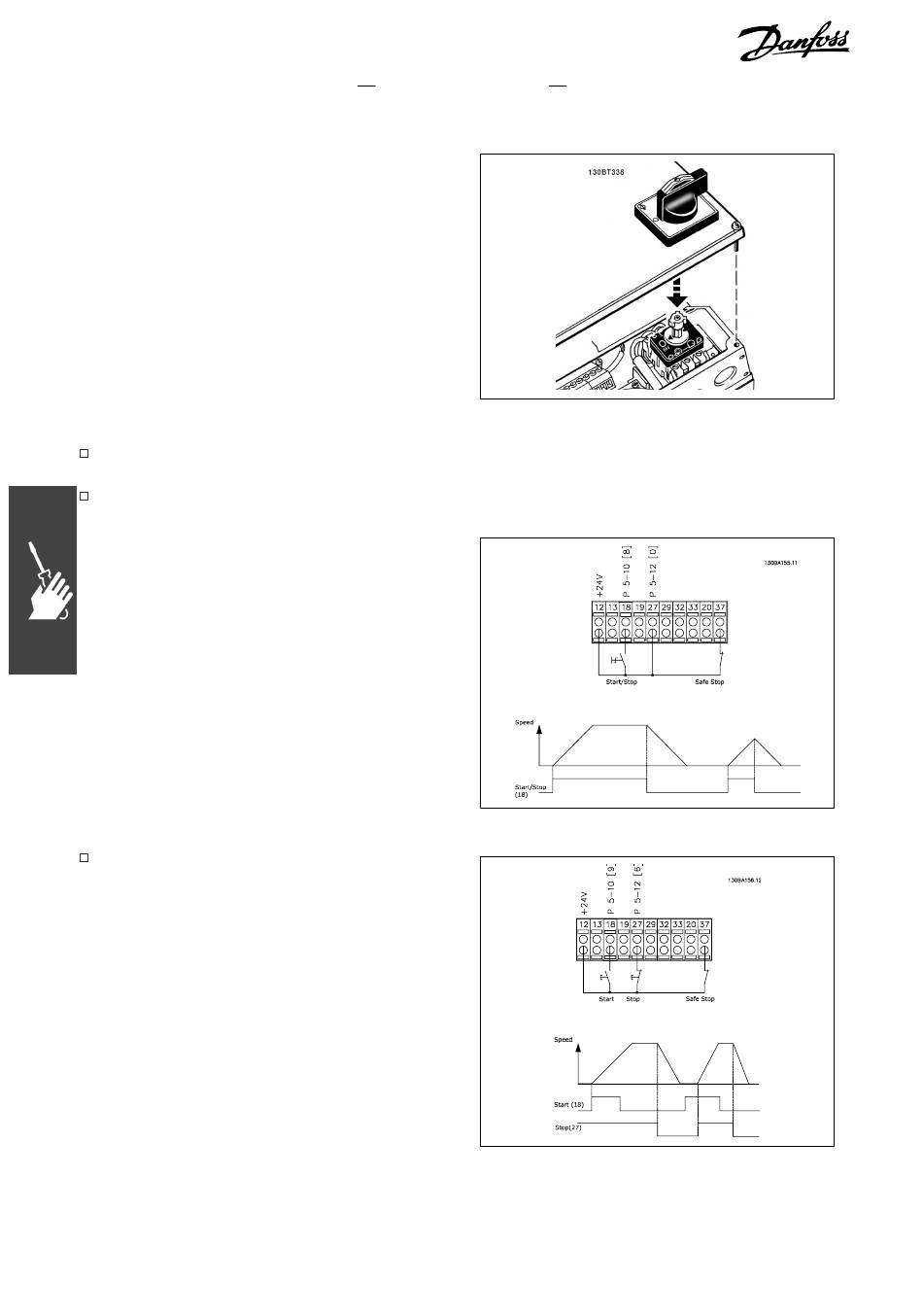

Assembling of IP55 / NEMA Type 12 (A5 housing) with mains disconnector
Mains switch is placed on left side on B1, B2, C1
and C2 enclosures. Mains switch on A5 enclosure
is placed on right side

Connection Examples

Start/Stop

Terminal 18 = Par. 5-10 [8] Start
Terminal 27 = Par. 5-12 [0] No operation (Default
coast inverse)
Terminal 37 = Safe stop (FC 302 and FC 301 A1
only)

Pulse Start/Stop

Terminal 18 = Par. 5-10 [9] Latched start
Terminal 27= Par. 5-12 [6] Stop inverse
Terminal 37 = Safe stop (FC 302 and FC 301 A1
only)
28
How to Install
MG.33.A8.02 - VLT is a registered Danfoss trademark
