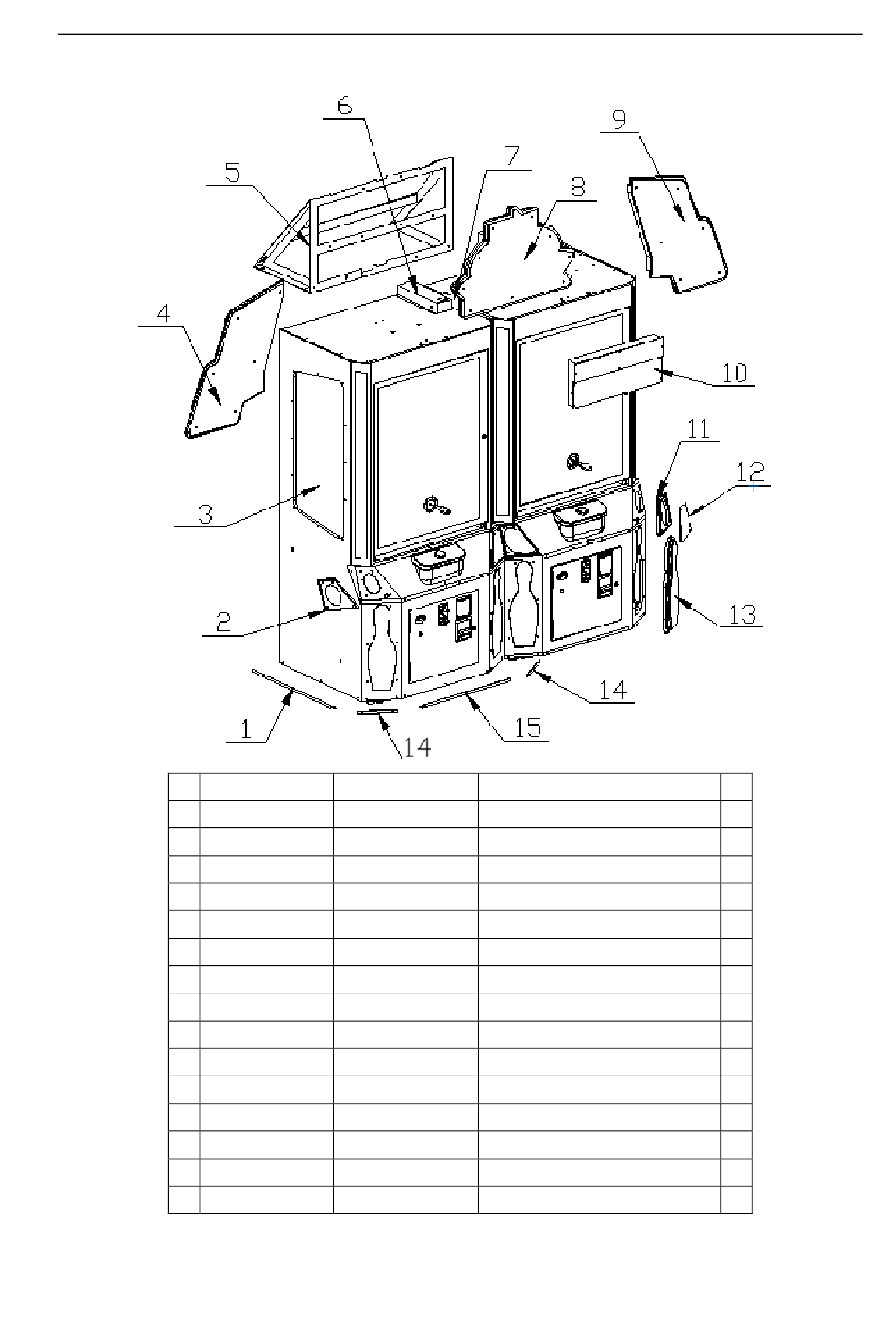

9. OVERALL CONSTRUCTION

9.1 General Assembly
No.
1 P139-117-000 20221701A011
2 P139-107-000 20621701A002
3 P139-138-000 20621701A030
4 P139-006-000 29921701A011
5 P139-142-000 20221701A045 Marquee mounting bracket 1
6 P139-143-000 20221701A042
7 P139-140-000 20221701A021
8 P139-007-000 29921701A009
9 P139-005-000 29921701A012
10 P139-004-000 29921701A013
11 P139-122-000 20621701A003
12 P139-108-000 20221701A050
13 P139-722-000 20521701A002
14 P139-106-000 20221701A003
15 P139-130-000 20221701A018
Part No.
Code No.
Name
L&R side banding
L speaker plastic
L&R side window
L marquee assy.
Wiring cover plate
Connecting plate
Logo Marquee assy.
R marquee assy.
Display assy.
R speaker plastic
Speaker net
Bottom plastic decal
Side banding
Front side banding
Pin Setter Manual
Qty
2
2
4
1
1
1
1
1
1
2
4
4
2
2
27
