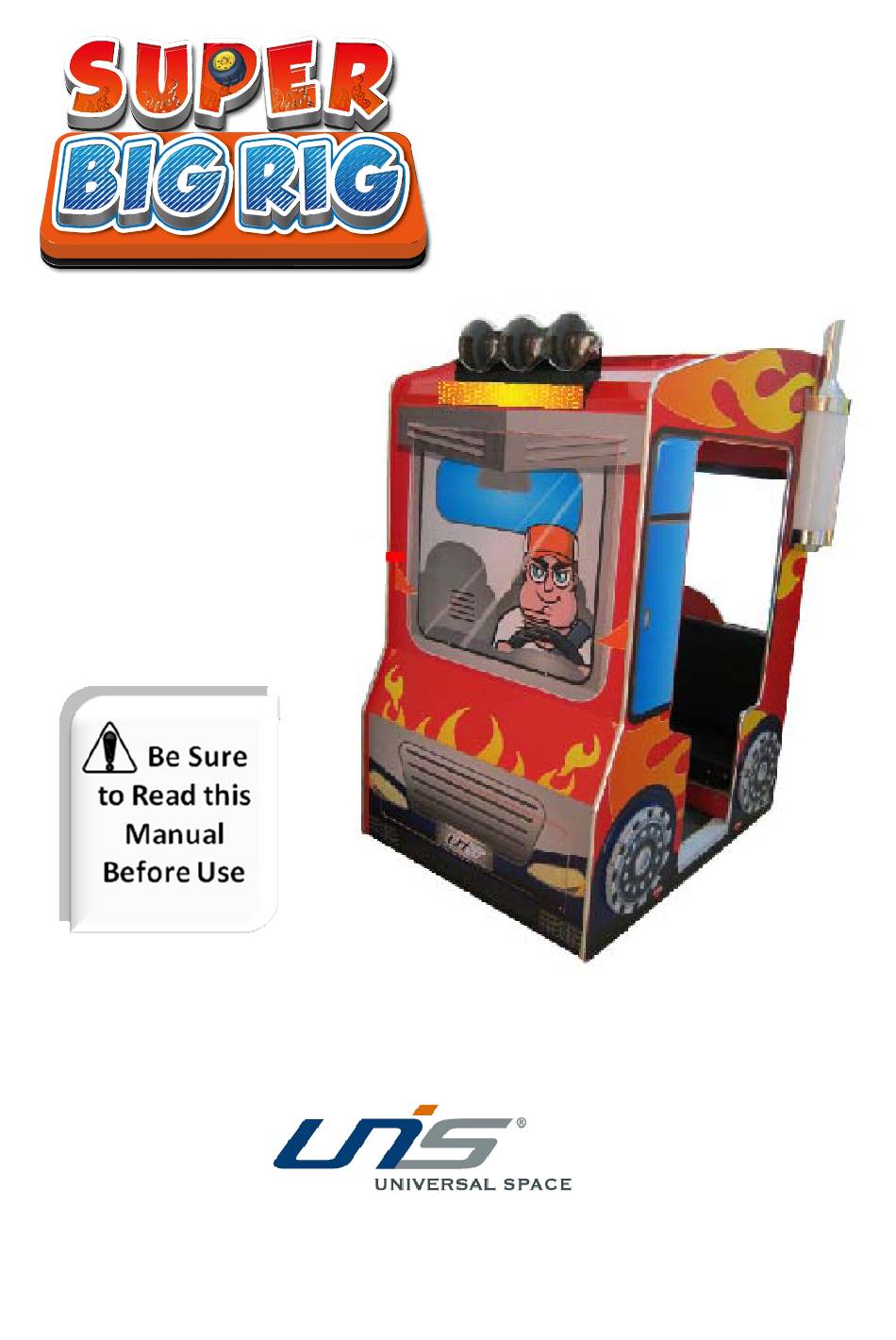

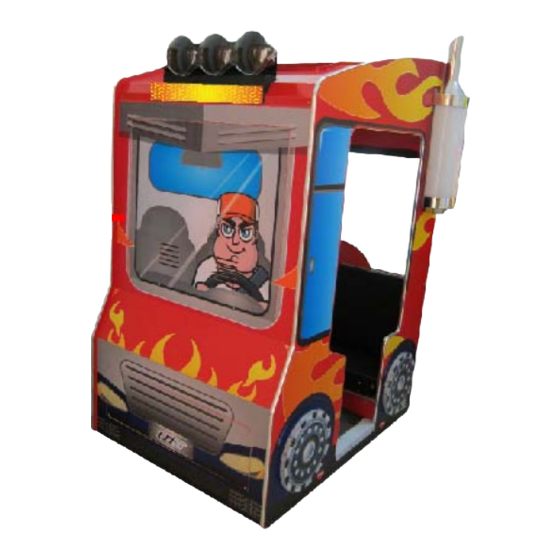

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Super big rig Manual Rev.1.0 CONTENT IMPORTANT SAFETY INSTRUCTIONS ............2 1. SPECIFICATIONS ..................4 2. PACKAGE CONTENTS ................5 3. PART NAME ....................6 4. SET UP & INSTALLATION ................. 7 5. HOW TO PLAY ..................10 6. GAME OPTION ..................15 7.

  • Page 3: Important Safety Instructions

    Super big rig Manual Rev.1.0 Thank you for purchasing Super big rig. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Super big rig Manual Rev.1.0 Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 5: Specifications

    Super big rig Manual Rev.1.0 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz Min. Power consumption: 170W Max. Power consumption：260W Dimensions： W1240×D1330×H1920 (mm) Weight： Approximately 280kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Package Contents

    Super big rig Manual Rev.1.0 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. 1 x Body Assembly 2. Following accessories Part No. Code Name Spec. Picture S127-443-000 23301000001 Power cord 10A/250V 1.8M Φ5×20mm T10A...

  • Page 7: Part Name

    Super big rig Manual Rev.1.0 3. PART NAME Top Marquee Rear Marquee Microphone 32” Display Chimney Assy. Pull-cord Switch Spare tire Assy. Steering wheel Taillight Assy. Coin mech.

  • Page 8: Set Up & Installation

    Super big rig Manual Rev.1.0 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Super big rig Manual Rev.1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction.
  • Page 10 Super big rig Manual Rev.1.0 an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.  Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.

  • Page 11: How To Play

    Super big rig Manual Rev.1.0 5. HOW TO PLAY 5.1 Game interface A：Items to Deliver and game time. B：Game start.
  • Page 12 Super big rig Manual Rev.1.0 A：There will be different tasks in the game. A：There will be different tasks in the game.
  • Page 13 Super big rig Manual Rev.1.0 Game Introduction: Announcement of the results...
  • Page 14 Super big rig Manual Rev.1.0 5.2 Task Setting. Set three tasks in the game.
  • Page 15 Super big rig Manual Rev.1.0 5.3. Scene setting There are two scenes in the game. Scenes 1 Scenes 2...

  • Page 16: Game Option

    Super big rig Manual Rev.1.0 6. GAME OPTION 6.1 Adjustment button instruction Test Service Reset Open the coin door there is a meter panel. Press service button to get into the setting menu. 6.2 Setting menu 6.2.1 Main Menu Main Menu...
  • Page 17 Super big rig Manual Rev.1.0 6.2.3 Customized Setting Customized Setting Fixed Ticket Two Tickets Equal One The Best Truck Driver An Excellent Truck Driver A Great Driver A Good Driver Back&Save Back Super BigRig1.0 6.2.4 Input Test and Output Test...
  • Page 18 Super big rig Manual Rev.1.0 6.2.6 Date/Time Setting Date/Time Setting Year 2014 Month Hour(24) Minute Second Back&Save Back Super BigRig1.0 6.2.7 Bookkeeping Bookkeeping Player Coins Tickets Payout NON RESETTABLL POINTS NON RESETTABLE TICKETS Back Super BigRig1.0 6.2.9 Daily Record Daily Record...
  • Page 19 Super big rig Manual Rev.1.0 6.2.10 About this game About This Game Press Setting Button to Back Intel(R)Core(TM)i5-3450CPU@3.10GHz MainBoard ST500DM002-1BD142 ATA Device 465GB 3553MB Monitor LT32BM20(L) Screen 1360X768 Version Super BigRig1.0 Super BigRig1.0...

  • Page 20: Error Message And Recovery

    Super big rig Manual Rev.1.0 7. ERROR MESSAGE AND RECOVERY 7.1 Trouble Shootings  Please confirm whether every connector connected tightly. Troubles Cause Methods Frame assembly connector fall off Please plug in connector tightly Cannot start Frame assembly fault Please contact with dealer Please turn on power SW again.
  • Page 21 Super big rig Manual Rev.1.0 7.2 System Recovery Operation 1. Turn off the game. Insert the memory stick into the USB port at the back of the computer. 2. Restart PC to enter the system recovery screen as shown. 3. The game will automatically start recovery which will last about 5 minutes.

  • Page 22: Maintenance & Inspection

    Super big rig Manual Rev.1.0 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 23: Overall Construction

    Super big rig Manual Rev.1.0 9. OVERALL CONSTRUCTION 9.1 General Part 1...
  • Page 24 Super big rig Manual Rev.1.0 Part No. Code Name Spec. 1 S127-105-000 20251408004 Long line slot Q235 2 S127-104-000 20251408003 Short line slot Q235 3 S127-155-000 20251408054 Toplight bracket cover Q235 4 S127-154-000 20251408053 Toplight bracket Q235 5 S127-106-000 20251408005 Speaker net cover...
  • Page 25 Super big rig Manual Rev.1.0 9.2 Control panel plastic Part No. Code Name Spec. 1 S127-440-000 22804000008 Microphone Microphone 181 1 2 S127-210-000 20651408012 Microphone fixed glue 3 S127-189-000 20251408090 Microphone seat Aluminum alloy 1 4 S127-713-000 20551408002 Microphone plastic decal Clear plastic...
  • Page 26 Super big rig Manual Rev.1.0 9.3 Chimney Assy. Part No. Code Name Spec. 1 S127-203-000 20651408005 Chimney bottom ABS Chrome 1 2 S127-714-000 20551408004 Chimney cover decal Clear plastic 1 3 S127-171-000 20251408070 Light fixed plate SECC 4 S127-170-000 20251408069 chimney pipe buckle...
  • Page 27 Super big rig Manual Rev.1.0 9.4 Pull-cord Switch Assy. Part No. Code Name Spec. Qty Q235 1 1 S127-129-000 20251408028 Pull-cord SW cover Q235 1 2 S127-130-000 20251408029 Pull-cord SW fixed plate yellow 1 3 S127-188-000 20251408089 Tassel rope 4 S127-436-000 22606040001 Dual-direction pull-cord SW FHKT2 1...
  • Page 28 Super big rig Manual Rev.1.0 9.5 Shockproof Part Part No. Code Name Spec. Qty Green 1 S127-435-000 22604000007 Micro SW S127-134-000 20251408033 Reset SW cover plate Q235 1 Q235 1 S127-132-000 20251408031 Point angle S127-212-000 20651408014 Reset SW limit set 1...
  • Page 29 Super big rig Manual Rev.1.0 9.6 Steering wheel Assy. Part No. Code Name Spec. PU + Aluminum 1 S127-463-000 41106000021 Black steering wheel alloy 2 S127-181-000 20251408082 Steering wheel shaft Color zinc plating 3 S127-141-000 20251408040 Steering wheel frame Q235...
  • Page 30 Super big rig Manual Rev.1.0 9.7 PC Assy. Part No. Code Name Spec. 1 S127-194-000 20251408A001 PC hoop SECC 2 S127-231-000 20251408073 PC fixed plate SECC 3 S127-527-000 20351408A001 PC bed plate MDF red mica 1...
  • Page 31 Super big rig Manual Rev.1.0 9.8 Rear Marquee Assy. Part No. Code Name Spec. 1 S127-143-000 20251408042 Sheet metal frame Q235 2 S127-173-000 20251408074 Light belt fixed sheet metal SECC 3 S127-145-000 20251408044 Head guard plate Assy. 4 S127-714-000 20551408007 Rear Marquee plastic...
  • Page 32 Super big rig Manual Rev.1.0 9.9 Seat Assy.
  • Page 33 Super big rig Manual Rev.1.0 Part No. Code Name Spec. 1 S127-146-000 20251408045 Non-woven press plate Q235 2 S127-218-000 20651408020 Non-woven Black 3 S127-147-000 20251408046 Front connection sheet metal Q235 4 S127-174-000 20251408075 Rear sheet metal SECC 5 S127-175-000 20251408076 Front sheet metal...
  • Page 34 Super big rig Manual Rev.1.0 Taillight Assy. 9.10 Part No. Code Name Spec. 1 S127-177-000 20251408078 Taillight frame SECC 2 S127-178-000 20251408079 Exhaust pipe bracket SECC 3 S127-197-000 20651401A014 Double rear light cover ABS 4 S127-198-000 20651401A017 Exhaust pipe 5 S127-716-000 20551408008 License plate plastic...
  • Page 35 Super big rig Manual Rev.1.0 Caster Assy. 9.11 Part No. Code Name Spec. 1 S127-356-000 20104010002 Cross recessed hexagon bolt Q235 2 S127-223-000 26000008000 2.5”leveller Q235 3 S127-455-000 25501000056 2.5”castor 3-2689-52 4 4 S127-224-000 26000010000 2.5”castor support bracket Q235...
  • Page 36 Super big rig Manual Rev.1.0 9.12 Electrical Part 1 Part No. Code Name Spec. S127-424-000 22003070014 Blue mushroom light E14-22-MG5050B-Z9-DC12V 2 S127-423-000 22003070013 Red mushroom light E14-22-MG5050R-Z9-DC12V 4 S127-420-000 22002013013 LED flexible lamp belt DC12V 3528LED 60z/m blue 1 Part No.
  • Page 37 Super big rig Manual Rev.1.0 Part No. Code Name Spec. 1 S127-438-000 22801000085 Speaker 4”5Ω 20W 2 S127-439-000 22803010001 Amplifier board GC2.2 3 S127-415-000 21603020001 Adapter DC14/15-3AGF 4 S127-457-000 29740917006 PCB board XMJZ-LEDKZ.PCB V1.1 1 5 S127-413-000 21201032004 32”display S127-413-000 Part No.
  • Page 38 Super big rig Manual Rev.1.0 Decal 9.13 Part No. Code Name 1 S127-701-000 20551408018 Front marquee decal 2 S127-702-000 20551408013 Front head decal 3 S127-703-000 20551408017 Top decal 4 S127-704-000 20551408010 L side board decal 5 S127-705-000 20551408011 L side board decal...
  • Page 39 Super big rig Manual Rev.1.0 Part No. Code Name 1 S127-714-000 20551408007 Rear marquee plastic 2 S127-715-000 20551408001 Display plastic 3 S127-716-000 20551408008 license plate plastic 4 S127-717-000 20551408004 Chimney cover plastic 5 S127-718-000 20551408015 Speaker board decal 6 S127-719-000 20551408009 Wheel cover B...

  • Page 40: Wiring Diagram

    Super big rig Manual Rev.1.0 Wiring Diagram...
  • Page 41 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
