Summary of Contents for Universal Space PIN SETTER

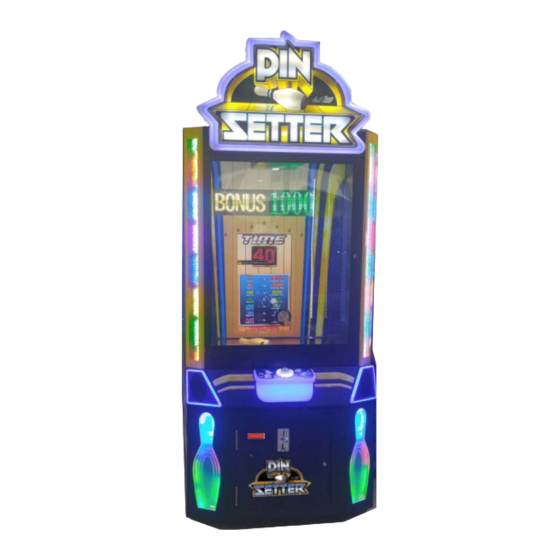

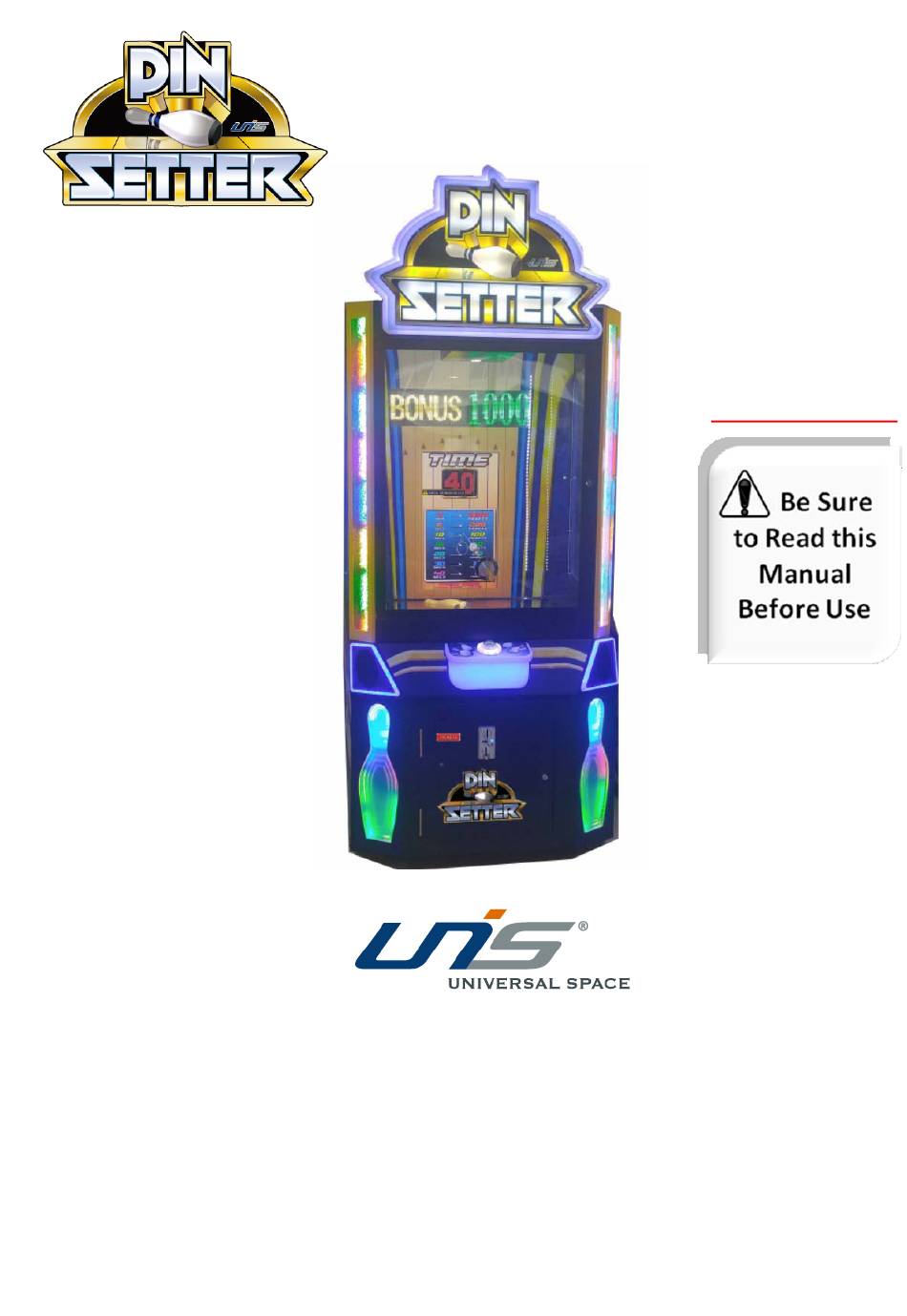

  • Page 1 IMPORTANT www.universal-space.com Operation Manual...
  • Page 2 Pin Setter Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com 12/29/2017...

  • Page 3: Table Of Contents

    Pin Setter Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ..................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ......................12 6. GAME OPTION ....................... 13 7.

  • Page 4: Important Safety Instructions

    Pin Setter Manual Thank you for purchasing Pin Setter. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Pin Setter Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Pin Setter Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 150W Max. Power consumption: 180W Dimension: W 40 x D 34.3 x H 99.7 in Weight：Approximately 547 lb Part No: P135 Model No: C-503 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Pin Setter Manual The dimension during transportation: W 81.3×D 34.2×H 81.3 in Note: Game specifications are subject to change without notice. 12/29/2017...

  • Page 8: Contents Of The Accessory Kit

    Pin Setter Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture 1 P135-801-000 25300171002 2 P135-802-000 25300172002 3 P135-803-000 21901000013 Fuse 4 P135-804-000 23301010042...

  • Page 9: Part Name

    Pin Setter Manual 3. PART NAME Key Components Display 27" monitor Start button Ticket dispenser assy. Coin mech. assy 12/29/2017...

  • Page 10: Set Up & Installation

    Pin Setter Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 11 Pin Setter Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 12 Pin Setter Manual 4.4 Marquee Installation Step 1 Open the front window and loosen 2 wing nuts manually. Step 2 Hold up the marquee as picture shown. Step 3 Install the wing nuts to tighten the marquee plate and the wood plate as much as possible.

  • Page 13: How To Play

    Pin Setter Manual 5. HOW TO PLAY 5.1 Insert coins or swipe card 5.2 Press the start button to begin 5.3 Hold the rod handle to control the rod to play. carefully lift the pin up. Once the pin is standing, you win tickets.

  • Page 14: Game Option

    Pin Setter Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.2 Basic Setting 6.2.1 Main menu...
  • Page 15 Pin Setter Manual 6.2.4Input Test 6.2.5 Output Test OFF/ON Insert coin Ticket driver OFF/ON Front window Card reader inhibit OFF/ON Go button Card reader enable OFF/ON Rod laying down Two side light bar OFF/ON Rod pulling up Control panel light...
  • Page 16 Pin Setter Manual 6.2.10 Daily Record Date Weekday RunTime Coins Tickets Payout 2014-06-061 Fri 00:01 0.00 Prev. Page Next Page Clear Back 6.2.11 Calibrate the detecting area Pin is set: No Pin is set: No Detecting time:1.5 Detecting time:1.5 Operation tips Operation tips 1.4 red points will appear after the pin is...

  • Page 17: Troubleshooting

    Pin Setter Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 18 Pin Setter Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose ports of the PC or IO IO board and PC are loose.
  • Page 19 Pin Setter Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove recovery USB from the machine. (Note: This process may take up to 60 minutes) Insert the memory stick into the USB port at the back of the computer.

  • Page 20: Maintenance & Inspection

    Pin Setter Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.
  • Page 21 Pin Setter Manual Step 2 Wrap around and tighten the nylon wiring as red area indicated. Cut the unnecessary part. 8.3.2 Making the Bowling pin bottom assy. If you already get this part and the problem happens again, please replace the string.
  • Page 22 Pin Setter Manual How to tie the knots? (Figure-eight knot) Cross the string Make the string Pull the end of the Tightening the knot. into “8” shape string into the first circle. 12/29/2017...

  • Page 23: Wiring Diagram

    Pin Setter Manual 9. WIRING DIAGRAM XKX2-PX-01 12/29/2017...
