Universal Space Pin Setter Operation Manual page 11

Pin Setter Manual
4.4 Marquee Installation
Before processing with assembly assure you have the following tools.
No.
1
2
Step 1

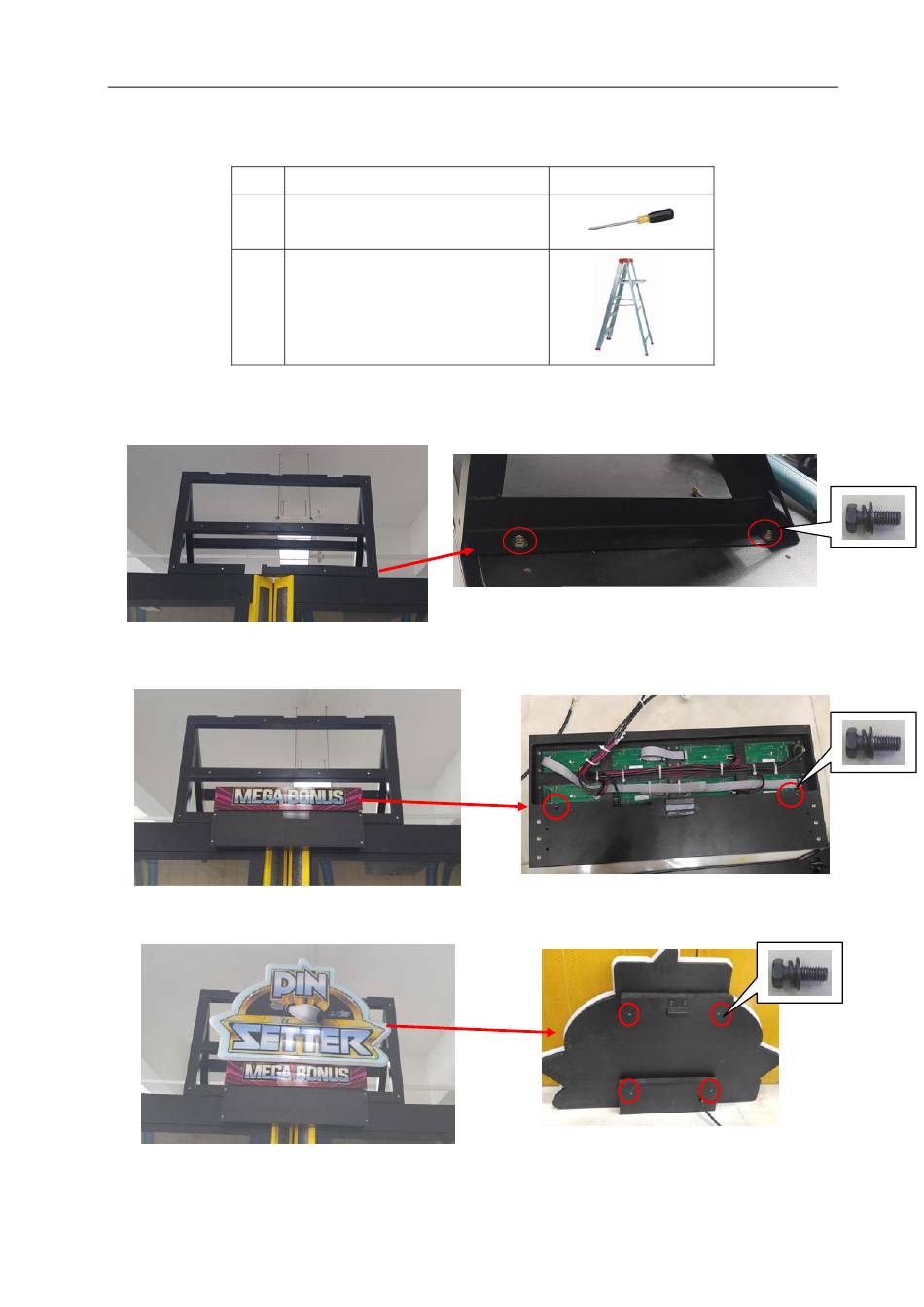

Stand on the ladder and place the marquee bracket on the top of the cabinet and fix it
with four screws as picture shown.
Step 2
Place the MEGA BONUS marquee assy. on bracket and fix it with two screws as picture
shown. Please connect the plugs.
Step 3
Place the LOGO marquee assy. on the bracket and fix it with four screws as picture
shown. Please connect the plug.
10
04/18/2018
(This process requires assistance.)
Name
Phillips screwdriver
Ladder
2 screws one side
