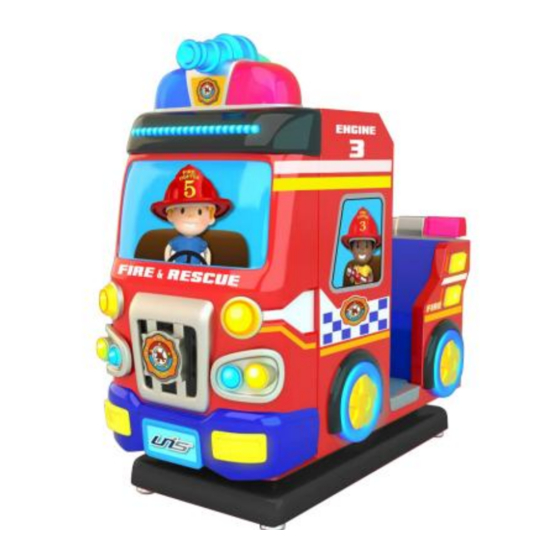

Universal Space Fire Rescue Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fire Rescue and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space Fire Rescue

Summary of Contents for Universal Space Fire Rescue

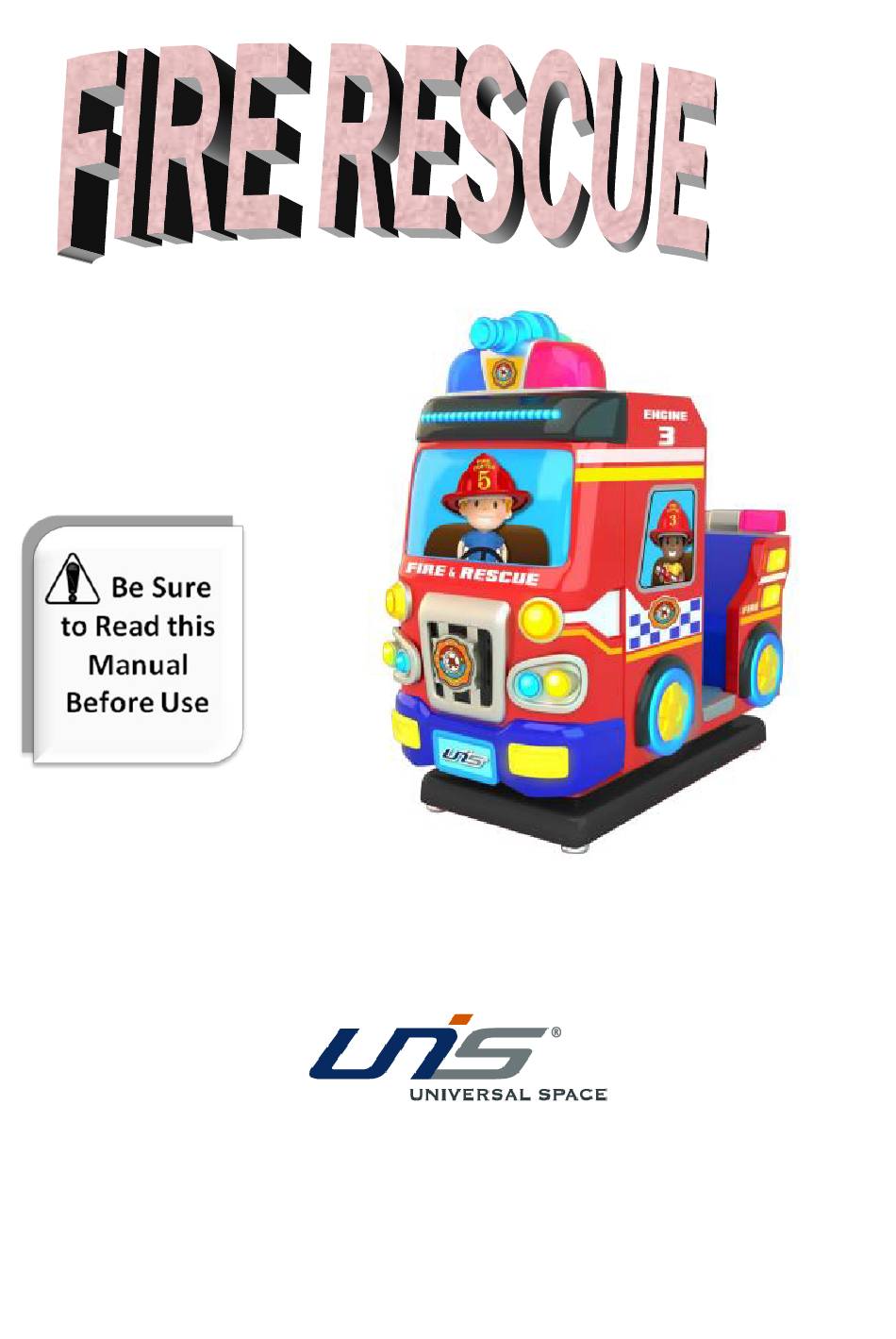

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Fire Rescue Manual CONTENT Important Safety Instructions...........2 1. SPECIFICATIONS ..............4 2. PACKAGE CONTENTS ............5 3. PART NAME ................6 4. SET UP & INSTALLATION ............7 5. HOW TO PLAY ..............10 6. MAINTENANCE & INSPECTION .......... 11 7.

  • Page 3: Important Safety Instructions

    Fire Rescue Manual Thank you for purchasing FIRE RESCUE from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Fire Rescue Manual safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Fire Rescue Manual 1. SPECIFICATIONS Rated power supply: AC220-240V, AC110V 50/60Hz Min. Power consumption: 100W Max. Power consumption：320W Dimensions： W1904× D946× H1520(mm) Weight： Approximately 190kg Load weight: 150kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Package Contents

    Fire Rescue Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Name SPEC. Illustration F143-101-000 AH57 F143-102-000 AH78 F143-401-000 Power cord 1.5M F143-801-000 Manual Φ5×20mm...

  • Page 7: Part Name

    Fire Rescue Manual 3. PART NAME Tap light Fiberglass Seat Cabinet Logo Wheel light Footboard Cabinet base Unis Logo...

  • Page 8: Set Up & Installation

    Fire Rescue Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Fire Rescue Manual 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE  Be careful not to damage the machine during transport.
  • Page 10 Fire Rescue Manual WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous. To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.

  • Page 11: How To Play

    Fire Rescue Manual 5. HOW TO PLAY 5.1 Game Operation Insert coin(s) Game start Cabinet rock Gun spray water Sound button started Player puts out a fire Press sound button Win tickets Game over Demo 5.2 How To Play Shoot these 5 targets when the light is up.

  • Page 12: Maintenance & Inspection

    Fire Rescue Manual 6. MAINTENANCE & INSPECTION 6.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 13: Trouble Shooting

    Fire Rescue Manual 7. TROUBLE SHOOTING Problem 1: The machine without respond when power on. Solution: A. Check the machine external power supply is normal. B. Check the power SW is “NO” status. C. Check if the fuse blown out.
  • Page 14 Fire Rescue Manual Problem 3: The machine without response when inserted coin(s). Solution: A. Check the coin mech. and cables are normal. B. Insert coin(s), check the coin meter is normal, then check the main board is normal. C. Change new coin mech.

  • Page 15: Overall Construction

    Fire Rescue Manual 8. OVERALL CONSTRUCTION 8.1 General assembly Shoot target Firemen Control panel Fiberglass Base Coin door...
  • Page 16 Fire Rescue Manual Fire truck assy. Firemen assy. Control panel assy. Base assy.
  • Page 17 Fire Rescue Manual 8.2 Firemen assembly...
  • Page 18 Fire Rescue Manual Part No. Name Material Qty. F143-103-000 Water gun Stainless steel F143-601-000 Firemen Plastic F143-104-000 Doll Br. Stainless steel F143-602-000 Decorative bracket Blue POM F143-105-000 Up fixed plate Stainless steel F143-106-000 Optical coupler block Stainless steel F143-107-000 Up support...
  • Page 19 Fire Rescue Manual 8.3 Control Panel Assembly Part No. Name Material Qty. 1 F143-111-000 Steering wheel 2 F143-112-000 Steering wheel shaft 3 F143-113-000 BR.626 4 F143-114-000 Button 5 F143-115-000 Control panel plastic Plastic 6 F143-116-000 Control panel metal Q235 7 F143-117-000 Spring...
  • Page 20 Fire Rescue Manual 8.4 Game Panel Assembly Part No. Name Material Qty. 1 F143-122-000 Hinge Q235 2 F143-603-000 Window Plexi. 3 F143-604-000 Game panel Plexi. 4 F143-123-000 Scoreboard Stainless steel 5 F143-124-000 Bob-weight 1 Stainless steel 6 F143-125-000 Bob-weight Stainless steel...
  • Page 21 Fire Rescue Manual 8.5 Cabinet Assembly...
  • Page 22 Fire Rescue Manual Part No. Name Material Qty. 1 F143-408-000 Lock AH57 lock 2 F143-606-000 Glass door lock washer 3 F143-127-000 Glass door Glass 4 F143-128-000 Glass frame Stainless steel 5 F143-607-000 Car top water gun Molding 6 F143-608-000 Top light cover...
  • Page 23 Fire Rescue Manual 8.6 Base Assembly...
  • Page 24 Fire Rescue Manual Part No. Name Material Qty. 1 F143-135-000 Top swing bracket Q235 2 F143-409-000 Br. UCP205 3 F143-136-000 Bottom swing bracket Q235 4 F143-621-000 Base cover ABS black 5 F143-410-000 Frequency converter 6 F143-411-000 Joint Br. M16 outer 7 F143-412-000 Joint Br.
  • Page 25 Fire Rescue Manual 8.7 Electrical Part Part No. Name SPEC. Qty. 1 F143-425-000 Motor 5rev 12v 2 F143-426-000 3 F143-427-000 Light belt White 4 F143-428-000 Main board SXKJ 2013.PCB 5 F143-429-000 Ribbon cable 6 F143-430-000 Solid state relay SSR-10 DA...
  • Page 26 Fire Rescue Manual Part No. Name SPEC. Qty. 1 F143-439-000 Coin door Steel 2 F143-401-000 AH 57 lock 3 F143-440-000 Ticket light Red light 4 F143-441-000 Coin mech. TW-131 5 F143-139-000 Coin box steel 6 F143-402-000 AH 58 lock 7 F143-442-000 Tik. dispener...
  • Page 27 Fire Rescue Manual Part No. Name SPEC. Qty. 1 F143-448-000 Speaker 2 F143-449-000 White plexi. 3 F143-450-000 Speaker light PCB Red light 4 F143-451-000 Speaker cover TW-131 Part No. Name SPEC. Qty. 1 F143-452-000 Fuse base 2 F143-453-000 Power cord 6.3A...
  • Page 28 Fire Rescue Manual 8.8 Decal Part Part No. Name SPEC. Qty. 1 F143-701-000 Window decal PVC sticker 2 F143-702-000 Background decal PVC sticker 3 F143-703-000 Side B + front door decal Sticker 4 F143-704-000 Side C + top decal Sticker...
  • Page 29 Fire Rescue Manual...
  • Page 30 Fire Rescue Manual Part No. Name SPEC. Qty. 1 F143-714-000 Fill valve decal 2 F143-715-000 High voltage warning decal PVC sticker 3 F143-716-000 Drain valve decal 4 F143-717-000 Force point decal PVC sticker 5 F143-718-000 Ticket out decal PVC sticker...
  • Page 31 9. IO CHART Item Option Coin per game Game time (s) Demo music Mercy ticket Item Option Score ticket Target score Free Play Data memory...
  • Page 32 Fire Rescue Manual 13×3 80×3 L E D d i s p la y GN D 80 K GN D 30×6 Co in s ig nal 30×7 +12 V 80×7 +12 V DB V s ign al Fireman s ou nd bu tton...
  • Page 33 Fire Rescue Manual Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
