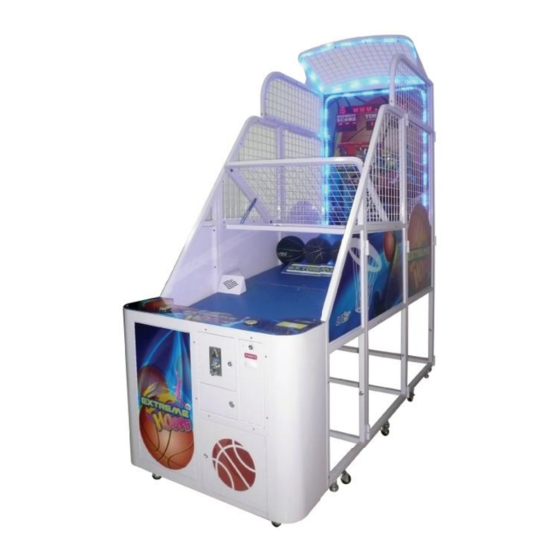

Universal Space Extreme Hoops Operation Manual

Hide thumbs Also See for Extreme Hoops:
Table of Contents

Advertisement

Quick Links

Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extreme Hoops and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space Extreme Hoops

Summary of Contents for Universal Space Extreme Hoops

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Extreme Hoops operation manual CONTENT IMPORTANT SAFETY INSTRUCTIONS............2 1. SPECIFICATIONS...................4 2. PACKAGE CONTENT................5 3. ASSEMBLY STEPS.................8 4. SET UP & INSTALLATION ..............16 5. DISASSEMBLY……………………………………...........19 6. HOW TO PLAY..................20 7. SWITCH ES CONTROL SIGNAL…............20 8. PARAMETER SETTINGS..............24 9. GAME INSTALLATION AND SERVICE…………........28 10.

  • Page 3: Important Safety Instructions

    Extreme Hoops operation manual Thank you for purchasing Extreme Hoops from UNIVERSAL SPACE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Extreme Hoops operation manual This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: • Places subject to rain/moisture, or places subject to high humidity.

  • Page 5: Specifications

    Extreme Hoops operation manual 1. SPECIFICATIONS 2717mm 2350mm Rated power supply：AC220V-240V 50Hz or 110V±10 60Hz (1) Power consumption: Mini power consumption: 45W Max power consumption: 90W (2) Dimensions: W1030×D2200×H2243 (mm) (3) Weight : Approximately 288Kg (4) Environment condition: (Indoor) temperature：-10 ~+40 ℃...

  • Page 6: Package Content

    Extreme Hoops operation manual 2. PACKAGE CONTENTS 2.1 Open the package and make sure all the items are included: • 1 x Body Assembly • Following accessories Part No. Name Illustration Body E101-001-000 assembly Control panel E101-002-000 assembly Ball gate...

  • Page 7: Assembly Steps

    Extreme Hoops operation manual 2.2 Accessories List Part No. Code No. Name Specification E101-401-000 23301000004 Power cord 10A/250V-3m E101-423-000 21901000013 Fuse φ5×20mm T10A 250VAC 1 E101-701-000 41411013002 Operation manual English E101-403-000 25300171002 E101-404-000 25302222002 2222 E101-405-000 20106000082 Bearing with shaft...
  • Page 8 Extreme Hoops operation manual 3.1 Cabinet Assembly Open the package and take the main cabinet other parts out...
  • Page 9 Extreme Hoops operation manual Install upper bracket Open the middle bracket...
  • Page 10 Extreme Hoops operation manual Install the beam and bracket 1 Install the beam and bracket2 Open front bracket Install control panel fix board...
  • Page 11 Extreme Hoops operation manual Screw Screw Install ball gate assembly Install playfield Screw Screw Screw Screw...
  • Page 12 Extreme Hoops operation manual Install header assembly Screw at the back Install front panel Fix control panel...
  • Page 13 Extreme Hoops operation manual 3.2 Control Pane Layout Link wire “Link2” exit High voltage exit Link wire “Link1” exit Low voltage exit Power cord exit Low voltage High voltage wires wires go through this through this hole hole link1 link2...
  • Page 14 Extreme Hoops operation manual 3.3 Linking Games There are two buttons on the control panel: Link Game button：Press this button to compete with others. Single Player：Press this button for single player game. ² Linked game Schematics: Link2 Link1 Link2 Link1 How to link games: Connect Link 2 (in Game①) to Link 1 (in Game②).
  • Page 15 Extreme Hoops operation manual Notice: ² When linking the game, there should be one machine set as Game #1. Any of the machines can be set as Game #1. The rest of the machines can be #2 to #30 but the numbers cannot repeat.

  • Page 16: Set Up & Installation

    Extreme Hoops operation manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors. l Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid l Place the unit on a dry level surface l Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
  • Page 17 Extreme Hoops operation manual 4.2. Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction.

  • Page 18: Disassembly

    Extreme Hoops operation manual WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. • Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.
  • Page 19 Extreme Hoops operation manual dismantle and assemble the game rightly to make sure it can be operated normally. ² To remove the control panel: Step 1: Unplug the connectors from the Step 2: Unplug the high voltage and low voltage connectors as pictured.

  • Page 20: How To Play

    Extreme Hoops operation manual Step5: Pull the control panel in the front. Step 6: The package should be the same as the factory original packing. 6.HOW TO PLAY ü Insert coin(s). Press “single player” button or “link game” button to start the game.
  • Page 21 Extreme Hoops operation manual RESET button TEST button Test: Press “test” to this mode, go into 0, press “test” after 1 second to go to 1. The other is the same. TEST Content Explanation Jackpot Led_J33 2-1 flash and display “-0” to Test 0. the rest will display LED...
  • Page 22 Extreme Hoops operation manual Sensor detection board Sensor light: To detect if the rim is in the center or not. If the sensor detects the rim, it will light up. The rim is out of the position of the sensor. It can’t detect the signal so...
  • Page 23 Extreme Hoops operation manual Ticket drive board: 7.4 DIP Setting (Default setting） 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Notice The above technical instructions would change without notice. The parameter setting of the IO chart subject to the game only.

  • Page 24: Parameter Settings

    Extreme Hoops operation manual 8. PARAMETER SETTING (1) Coin per game： SW1-1 and SW1-2 are the switches to adjust how many coins to start the game. There are 4 options. DIP SW1 Item Content Note Free play Coin per 1 coin for one game...
  • Page 25 Extreme Hoops operation manual (6) Game time SW2-3~ SW2-4 are the switches to adjust the play time for each round. There are 4 options. DIP SW2 Item Content Note Select project A Select project B Game time Select project C...
  • Page 26 Extreme Hoops operation manual (11) 3 Point time SW3-5 is the switch to adjust the time during 3 point shooting, There are 2 options. DIP SW1 Item Content Note 3 Point Select project A time Select project B (12) Win JP ticket SW3-6~SW3-7 are the switches to adjust tickets on JP.
  • Page 27 Extreme Hoops operation manual DIP SW Item Content Main NO 1 NO 2 NO 3 NO 4 NO 5 NO 6 NO 7 NO 8 NO 9 NO 10 NO 11 NO 12 Game NO 13 NO 14 NO 15...

  • Page 28: Game Installation And Service

    Extreme Hoops operation manual 9 GAME INSTALLATION AND SERVICE 9.1 Installation 1 Firstly check the assembling instructions and assemble the game. 2 Secondly, adjust the leveler of the game on even ground. 3 After installation, plug in. check the game operation. If there is a problem, stop the game and please check the trouble shooting section of this manual.

  • Page 29: Trouble Shootings

    Extreme Hoops operation manual 10. TROUBLE SHOOTINGS Problem Cause Possible solution 1. No tickets in the game. 1. Refill and press reset button 2. Tickets are jammed. No ticket 2. Take the jammed tickets out and dispensed then press the reset button 3.

  • Page 30: Overall Structure

    Extreme Hoops operation manual 11. OVERALL STRUCTURE 11.1 Main Part 1...
  • Page 31 Extreme Hoops operation manual No. Part No. Code No. Name Material Qty. E101-411-000 20211013048 Guide 1 Q235 Cross recessed pan head E101-412-000 20101020034 Q235 screw kit E101-600-000 20611013003 Cover Clear PVC E101-433-000 20104023001 Cross recess pan head bolt kit Q235...
  • Page 32 Extreme Hoops operation manual No. Part No. Code No. Name Material Qty. E101-006-000 20211013051 Right speaker δ1.5white E101-150-000 29911013010 Right front bracket assy E101-147-000 29911013009 Right middle bracket assy E101-143-000 29911013008 Right back bracket assy E101-013-000 29911013011 Right top bracket assy...
  • Page 33 Extreme Hoops operation manual 11.2 Main Part 2...
  • Page 34 Extreme Hoops operation manual Part No. Code No. Name Material Qty. E101-107-000 20211013043 Beam bracket2 Q235 28 E101-108-000 20211013042 Beam bracket 1 Q235 29 E101-504-000 20211013049 LED fix board Q235 E101-441-000 20101048004 Hexagon flat head screw Q235 E101-109-000 20211013047 Control panel fix board...
  • Page 35 Extreme Hoops operation manual Part No. Code No. Name Material Qty. 50 E101-168-000 20211013033 Sundry nets shaft cover Cross recessed pan head M6×20 color 51 E101-443-000 20101020090 screw kit zinc 52 E101-167-000 20211013029 Front bracket white 53 E101-166-000 20211013030 Front net board δ1.5 white...
  • Page 36 Extreme Hoops operation manual 11.3 Motion Assy.
  • Page 37 Extreme Hoops operation manual Part No. Code No. Name Material Qty. E101-114-000 20211013069 Reinforce_R Q235 Cross recess counter sunk head E101-451-000 20103021001 Q235 self- tapping screw E101-452-000 20211013061 Q235 E101-453-000 20104020003 Cross recess hexagon bolt kit Q235 E101-450-000 20102000003 Non-metallic hexagon lock nut...
  • Page 38 Extreme Hoops operation manual...
  • Page 39 Extreme Hoops operation manual PART NO Code No NAME Material E101-508-000 20311013006 Playfield2 Playfield 2 E101-118-000 20211013077 Ball gate fixe board Q235 E101-475-000 20104020002 Cross recess hexagon bolt kit Q235 E101-607-000 20211013075 Ball gate axle sleeve E101-476-000 20105000078 B type circlip for shaft...
  • Page 40 Extreme Hoops operation manual 11.5 Control Panel Assy. PART NO. Code No. NAME Material E101-487-000 22401000079 Button white Middle size, flat white E101-488-000 22003000006 LED inserted bulb E101-489-000 22604000006 Micro SW E101-490-000 22301000001 Coin mech E101-180-000 20211013035 Control panel Q235...
  • Page 41 Extreme Hoops operation manual PART NO. Code No. NAME Material QTY 11 E101-497-000 21709000002 POT connecting board 12 E101-811-000 21704000011 LED lamp board 13 E101-439-000 25302222001 Coin box door lock 14 E101-801-000 21709000001 Relay board 15 E101-802-000 21701000018 Main board...
  • Page 42 Extreme Hoops operation manual 11.6 Other Electronic Component PART NO Code No. NAME E101-804-000 21704000115 E101-805-000 21706000063 E101-806-000 21706000061 E101-807-000 21705000020 Sensor board E101-414-000 23313000005 Insulated bushing φ50 E101-415-000 23313000265 Insulated bushing φ24 E101-416-000 21606000011 3 Core connector...
  • Page 43 Extreme Hoops operation manual 11.7 Game Decal 1，2，3...
  • Page 44 Extreme Hoops operation manual Warning and service sticker： 17，18，19 Ticket counter Coin counter - Volume + Ticket reset select setting...
  • Page 45 Extreme Hoops operation manual PART NO. Code No. NAME MATERIAL E101-704-000 20511013006 Front side-L decal PVC100U glue E101-705-000 20511013007 Middle side-L decal PVC100U glue E101-706-000 20511013008 Rear side-R decal PVC100U glue E101-707-000 20511013018 Button decal(link) PVC100U glue E101-708-000 20511013004 Front door decal...
  • Page 46 Extreme Hoops operation manual Wiring Diagram...
