Summary of Contents for Universal Space Wildlife PICs

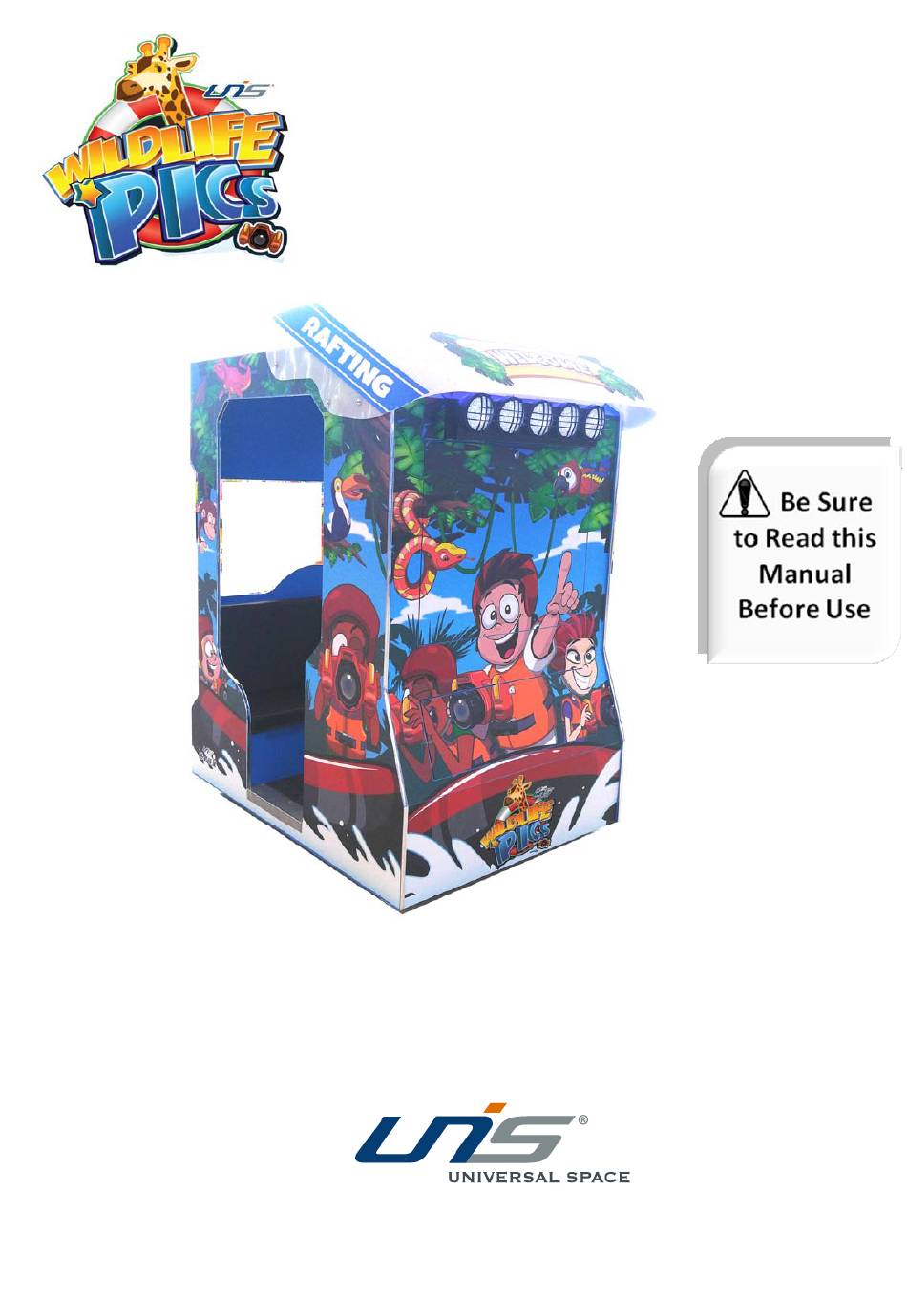

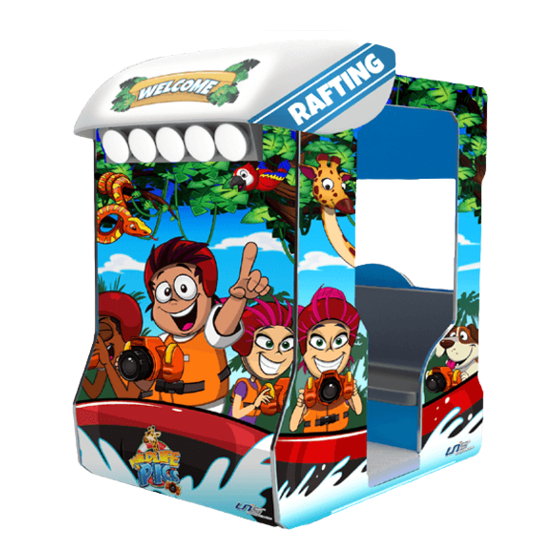

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Wildlife PICs (Card ver.) Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 2 1. SPECIFICATIONS ..................... 4 2. PACKAGE CONTENTS ..................6 3. PART NAME ..................... 7 4. SET UP & INSTALLATION ................8 5. HOW TO PLAY ....................12 6. GAME OPTION ....................13 7.

  • Page 3: Important Safety Instructions

    Wildlife PICs (Card ver.) Manual Thank you for purchasing Wildlife PICs. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Wildlife PICs (Card ver.) Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 5: Specifications

    Wildlife PICs (Card ver.) Manual 1. SPECIFICATIONS Rated power supply: AC220V 50/60Hz; AC110V 50/60Hz Min. Power consumption: 250W Max. Power consumption: 220W Dimension: W43.30×D59.01×H75.78 in Weight: 507 lb Part No: W116 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 6 Wildlife PICs (Card ver.) Manual This is the dimension after unpacking. (Top shed assy. need to install) Dimension: W42.51×D56.06×H69.15 in 01/18/2018...

  • Page 7: Package Contents

    Wildlife PICs (Card ver.) Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. Following accessories Part No Code Name Picture 1 W116-802-000 25300171002 2 W116-803-000 25300172002 Power cord 3 W116-804-000 23301000001 3×16AWG 1.8M...

  • Page 8: Part Name

    Wildlife PICs (Card ver.) Manual 3. PART NAME Top shed assy. Marquee Assy. Monitor Camera Assy. Card Assy. Coin mech. Assy. 01/18/2018...

  • Page 9: Set Up & Installation

    Wildlife PICs (Card ver.) Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface ...
  • Page 10 Wildlife PICs (Card ver.) Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area Notice: Please open the seat for service electrical parts and find the POWER SWITCH of the...
  • Page 11 Wildlife PICs (Card ver.) Manual 4.4 Top shed assy. Installation Instruction Please prepare the following tools before installation. Name Picture Allen key Cross screwdriver Unpack the machine and install the following 3 parts. Name 1 Top plastic shed 1 2 Top shed plate 1 1...
  • Page 12 Wildlife PICs (Card ver.) Manual Step 1 Place and install Top shed plate 1& Top shed plate as following picture. Name 1 Cross recessed pan head screw 8 Top shed plate 1 Top shed plate 4 screws 4 screws Step 2 Place and install Top plastic shed as following picture.

  • Page 13: How To Play

    Wildlife PICs (Card ver.) Manual 5. HOW TO PLAY 5.1 Press left or right button to snap a photo 5.2 Aim perfectly to get 3 stars 5.3 Complete tasks to earn MEDALS! 5.4 Take your card! 01/18/2018...

  • Page 14: Game Option

    Wildlife PICs (Card ver.) Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press test button to get into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu 6.2.2 Basic Setting...
  • Page 15 Wildlife PICs (Card ver.) Manual 6.2.4Input Test 6.2.6 Game Reset 1P Coin In OFF/ON Restore Factory Settings 1P confirm button OFF/ON Restore Basic Settings 1P Left Button OFF/ON Restore Customized Setting 1P Right Button OFF/ON Clear Unused Coin 2P Coin In...

  • Page 16: Trouble Shootings

    Wildlife PICs (Card ver.) Manual 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm whether every connector connected tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Plug the connector tightly. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 17 Wildlife PICs (Card ver.) Manual Symptom Possible Cause Recommended action Update the driver of the video card or Display blue screen Software problem. reinstall the system. when playing Hardware problem. Check the hardware one by one. Playing normal, but Video card is loose or poor Plug video card again.
  • Page 18 Wildlife PICs (Card ver.) Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The connection part of the Check and reconnect the loose IO board and PC are loose.
  • Page 19 Wildlife PICs (Card ver.) Manual 7.2 System Recovery Operation 1. Turn off the game. Remove recovery USB from the cabinet. (Note: This process may take 30-45 minutes to reform.) Insert the memory stick into the USB port at the back of the computer.

  • Page 20: Maintenance & Inspection

    Wildlife PICs (Card ver.) Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 21 Wildlife PICs (Card ver.) Manual WIRING DIAGRAM OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 2P Card mech. 1P Card mech. 01/18/2018...
  • Page 22 WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com...
