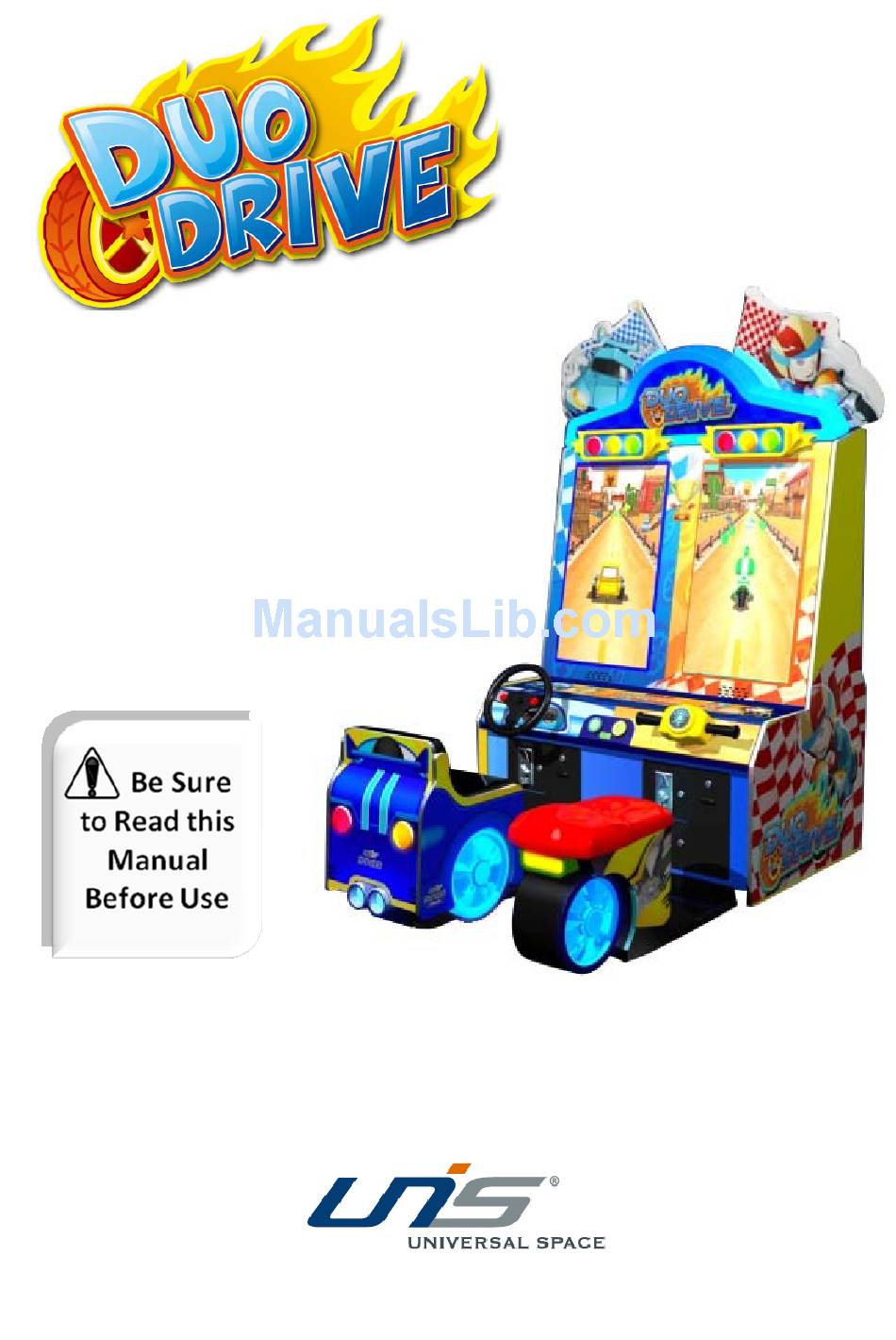

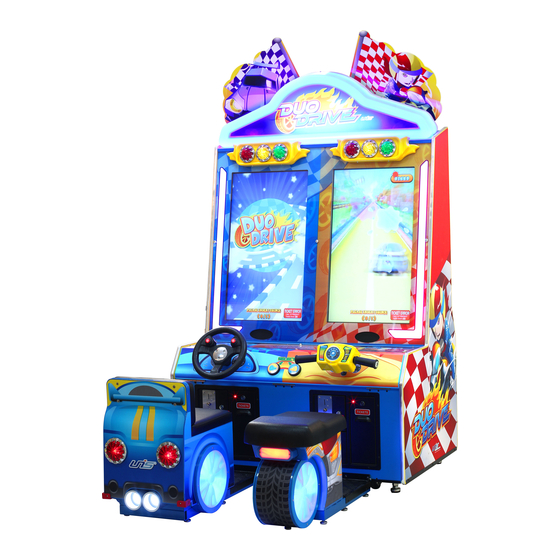

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    DUO DRIVE V1.02                                                                                                                                                                  ...

  • Page 3: Important Safety Instructions

    DUO DRIVE V1.02 Thank you for purchasing DUO DRIVE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 DUO DRIVE V1.02                                                                                                                                                                  ...

  • Page 5: Specifications

    DUO DRIVE V1.02 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz Min. Power consumption: 320W Max. Power consumption：360W Dimensions： W1105×D1475×H2005 (mm) Weight： Approximately 220kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    DUO DRIVE V1.02                                                                                                                                                                  ...

  • Page 7: Part Name

    DUO DRIVE V1.02 3. PART NAME Marquee Assy. Monitor Assy. Speaker Coin mech. Control panel Assy. Seat Assy. Wooden box Assy. Ticket dispenser  ...

  • Page 8: Set Up & Installation

    DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 9 DUO DRIVE V1.02 This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
  • Page 10 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 11 DUO DRIVE V1.02 4.5 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 12: Game Option

    DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 13 DUO DRIVE V1.02 6.2.2 Game Mode Free Play Tickets Out Attract Mode Save Coins Volume Coins Per Game Reward Tickets Mercy Tickets Game time(s) Game Difficulty easy Score mode star Ticket mode call Attendant Back Note: Item Option Explanation Free Play ON/OFF Play game without credit in.
  • Page 14 DUO DRIVE V1.02                                                                                                                                                                  ...

  • Page 15: Error Message And Recovery

    DUO DRIVE V1.02 7. ERROR MESSAGE AND RECOVERY 7.1 Error Message Symptom: Screen displays message “Communication ERROR” (there is communication problem with the game) Possible Causes & Fixes:  Communication data wire is damaged  Replace the data wire.  SCM is not working ...
  • Page 16 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 17 DUO DRIVE V1.02 Problem Reason Solution 1. Adapt the POT 1. POT off Can play the game 2. Check audio line is loosen of 2. audio line is loosen but there was no PC on picture 1 3. amplifier is damaged voice 3.

  • Page 18: Maintenance & Inspection

    DUO DRIVE V1.02                                                                                                                                                                  ...

  • Page 19: Overall Construction

    DUO DRIVE V1.02 9. OVERALL CONSTRUCTION 9.1 Assembly drawing  ...
  • Page 20 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 21 DUO DRIVE V1.02 9.2 Indicator light Assembly Part NO. Code NO. Name D120-218-000 20241317B044 Plastic upper press plate Q235 δ15 1 D120-219-000 20241317B045 Indicator light seat bottom plate Q235 δ15 1 D120-220-000 20101020037 Indicator light seat ABS δ3 D120-221-000 20241317B054 Indicator light mounting plate SECCδ1.5 2...
  • Page 22 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 23 DUO DRIVE V1.02 9.5 Motorcycle steering wheel Assembly Part NO. Code NO. Name SPEC. D120-121-000 20241317B015 Steering wheel base Q235 D120-122-000 20241317B016 Left handlebar Q235 D120-123-000 20641317006 Gloves D120-124-000 20241317031 Washer 202 stainless steel 2 D120-125-000 20641317B005 Block column Polyurethane...
  • Page 24 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 25 DUO DRIVE V1.02 Part NO. Code NO. Name SPEC. D120-134-000 20241317015 Mounting base δ2.5 black Q235 D120-135-000 20106000175 Deep groove ball bearing 6004-2Z D120-136-000 20241317B012 Automobile shaft Black 45# D120-137-000 20241317B012 Mounting cover δ2.5 Black Q235 Automobile positioning D120-138-000 20241317025 δ3 Black Q235...
  • Page 26 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 27 DUO DRIVE V1.02 Part NO. Code NO. Name SPEC. D120-151-000 20241317015 Mounting base δ2.5 black Q235 D120-152-000 20106000175 Deep groove ball bearing 6004-2Z D120-153-000 20241317B012 Automobile shaft Black 45# D120-154-000 20241317B012 Mounting cover δ2.5 Black Q235 Motorcycle positioning D120-155-000 20241317027 δ3 Black Q235...
  • Page 28 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 29 DUO DRIVE V1.02 9.9 Automotive seat Assembly  ...
  • Page 30 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 31 DUO DRIVE V1.02 9.10 Motorcycle seat Assembly Part NO. Code NO. Name SPEC. D120-186-000 20241317B038 Motorcycle seat frame δ1.5 blue Q235 M8×15Adjustable feet M8×15 white D120-187-000 25900022001 D120-188-000 20641317B014 Antiskid plate Black D120-189-000 20241317B039 Connecting plate Black Q235 D120-190-000 20241317B031 Left side press plate...
  • Page 32 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 33 DUO DRIVE V1.02 9.12 Dongle Fixed Assembly Part NO. Code NO. Name SPEC. D120-325-000 20241317B004 Dongle seat Q235 δ1 D120-326-000 20241317011 Dongle plate SECCδ1 D120-327-000 41300000003 U disk D120-328-000 20102100010 Hexagon nuts with flange stainless steel M3 Cross recessed pan head...
  • Page 34 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 35 DUO DRIVE V1.02 Electrical parts2.  ...
  • Page 36 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 37 DUO DRIVE V1.02 9.14 Decals1. Part NO. Code NO. Name Spec. D120-701-000 20541317B001 Marquee decal 974×243×5 D120-702-000 20541317B002 Display decal 1068×920×5 D120-703-000 20541317B003 Control panel decal 1093×191×3 D120-704-000 20541317B004 POP L-side decal 437×473×5 D120-705-000 20541317B005 POP R-side decal 437×473×5 D120-706-000...
  • Page 38 DUO DRIVE V1.02                                                                                                                                                                  ...
  • Page 39 DUO DRIVE V1.02  ...
  • Page 41 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
