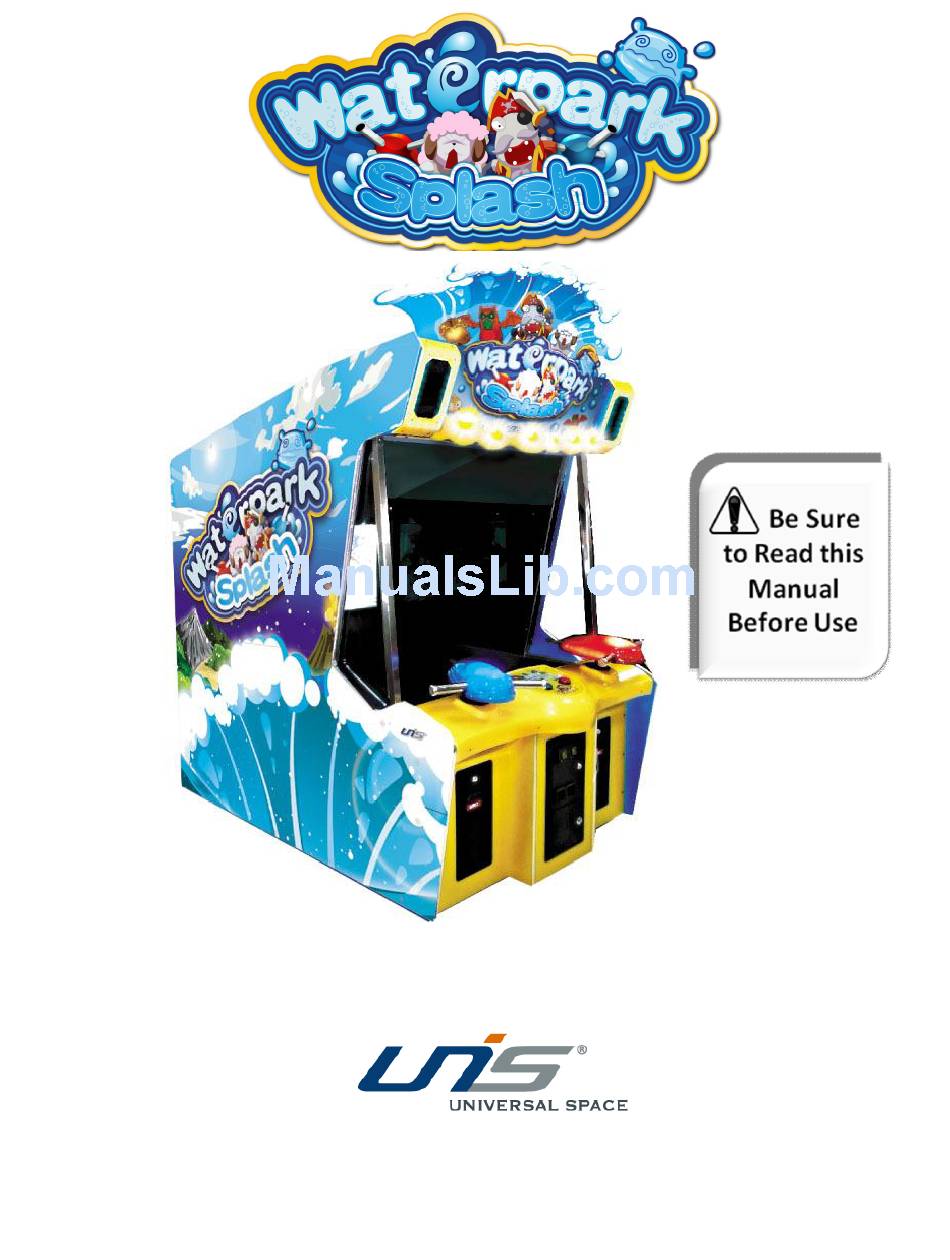

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Water park splash v1.0 CONTENT ................ 2 Important Safety Instructions 1.Specifications .................... 4 2.Package Contents ..................5 3. Part names ....................6 4.Set up & Installation ................. 7 5. How to Play ..................... 10 6. Game Options ..................13 7. Maintenance and Inspection ..............17 8.

  • Page 3: Important Safety Instructions

    Water park splash v1.0 Thank you for purchasing Water Park Splash from UNIVERSAL SPACE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Water park splash v1.0 No Touching Hazard: This part may be hot or can cause electric shock. Do not touch. Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage.

  • Page 5: Specifications

    Water park splash v1.0 1. SPECIFICATIONS Rated power supply： Min. Power consumption： 500W Max. Power consumption： 1150W Dimensions： W1100 X D1900 X H2350 (mm) Weight： about 320kgs NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Package Contents

    Water park splash v1.0 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part No. Name Spec. Qty. Note B110-401-000 Power cord 10A/250V 1.8m B110-402-000 Fuse Φ0...

  • Page 7: Part Names

    Water park splash v1.0 3. PART NAMES FRONT VIEW Marquee Projection screen Water gun assembly SIDE VIEW (Inside) Electrical parts Control (Inside) panel assy. Filter assembly...

  • Page 8: Set Up & Installation

    Water park splash v1.0 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Water park splash v1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction.
  • Page 10 Water park splash v1.0 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 11: How To Play

    Water park splash v1.0 5. HOW TO PLAY Water Park Splash is a first of its kind water video redemption game! The games feature 6 exciting mini games available in single-player and 2-player modes. Using water guns, player shoots on-screens targets as quickly and as accurately as possible within the time limit to increase the score.
  • Page 12 Water park splash v1.0 5.2 Ghost Busters Ghosts and Bats are flying everywhere! Shoot as many ghosts and bats as possible to score. Bats are hiding among the trees, shoot at them and they will fly out. The screen turns red when player is attacked and points are deducted.
  • Page 13 Water park splash v1.0 5.4 Poppin’ Bubbles Shoot the bubbles marked with numbers to receive corresponding score. Shoot at the two bugs to produce more bubbles. Shoot the star and the bee to receive higher score. Don’t shoot the angry red bubble...

  • Page 14: Game Options

    Water park splash v1.0 5.6 Big Bad Wolf The wolves are hungry! Shoot the big bad wolves to protect the sheep and earn points. 6. GAME OPTIONS 6.1 Setting Menu Press Test button (= Service) found on the meter panel to enter the setting menu.
  • Page 15 Water park splash v1.0 6.2 Option Settings Main Menu Game Mode Input Test Output Test Game Reset Language 语言 Find Four Point Calibration Exit & Without Save Exit & Save 6.2.1 Game Mode Free Play: Set free play mode ON/OFF.
  • Page 16 Water park splash v1.0 6.2.2 Input Test Input Test Press Test button to exit The default is OFF for every item. Press the test button once, OFF will turn to ON if the Low Water: OFF item is in normal state. If the item is still OFF...
  • Page 17 Water park splash v1.0 6.2.5 Language Select English to switch to the English version. English Select Chinese to switch to the Chinese version. 6.2.6 Find Four Point Calibrate the screen by matching 4 highlighted spots. 6.2.7 Calibration Calibrate the water gun by matching every highlighted spot.

  • Page 18: Maintenance And Inspection

    Water park splash v1.0 6.3 Water Pressure Adjustment Adjust the water pressure by adjusting the valve. 7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day.
  • Page 19 Water park splash v1.0 WARNING  Before servicing the machine, be sure to turn power off. Servicing without turning the power off can cause electric shock or short circuit.  To avoid electric shock or short circuit, do not plug then unplug the power quickly ...

  • Page 20: Overall Construction

    Water park splash v1.0 8. OVERALL CONSTRUCTION 8.1 Control Panel Assy. Part No. Diagram No. Name SPEC. Qty. Note B110-601-00 BCSSJ-HM-0 Middle decal plastic B110-408-00 Button M size B110-602-00 BCSSJ-02-14 Left cover Yellow plastic B110-603-00 Control panel BCSSJ-02-08 Yellow plastic...
  • Page 21 Water park splash v1.0 8.2 Water Pump Assembly Diagram Part No. Name SPEC. Qty. Note B110-411-000 Pressure meter Y-60 DN15×10 1/2×3/8 B110-412-000 Pressure meter tube Stainless steel flexible B110-413-000 DN15 1/2” 300mm tube DN15 1/2” B110-414-000 Shutoff valve DN15 1/2” 13×18mm...
  • Page 22 Water park splash v1.0 8.3 Water Filter Assembly Part No. Diagram No. Name SPEC. Qty. Note B110-424-000 8mm air pipe 8mm air pipe -1/2” B110-425-000 external straight B110-107-000 BCSSJ-05-01 Hexagonal copper column 12mm air pipe -1/2” B110-426-000 external straight B110-427-000...
  • Page 23 Water park splash v1.0 8.4 Internal Water Filter Assembly Part No. Diagram No. Name SPEC. Qty. Note B110-429-00 50L sink 590×420×260 (mm) B110-108-00 BCSSJ-06-01 Filter left bracket Stainless steel B110-109-00 BCSSJ-06-04 Filter screen Stainless steel screen B110-110-00 BCSSJ-06-03 Filter Stainless steel...
  • Page 24 Water park splash v1.0 8.5 Reflector & Projector Part No. Drawing No. Name SPEC. Qty. Note Reflector mounted B110-114-000 BCSSJ-07-07 Q235 bracket B110-605-000 BCSSJ-07-08 Reflector Glass B110-606-000 BCSSJ-07-10 Reflector strip B Foam B110-115-000 BCSSJ-07-12 Reflector plate B Q235 B110-116-000 BCSSJ-07-11...
  • Page 25 Water park splash v1.0 8.6 Water Gun Assembly There are 2 water guns per game machine. Below is one of the assemblies:...
  • Page 26 Water park splash v1.0 Water Gun Top Assembly Water Gun Bottom Assembly...
  • Page 27 Water park splash v1.0 Part No. Diagram No. Name SPEC. Note B110-119-000 BCSSJ-03-21 Gun nozzle bracket B Aluminum B110-120-000 BCSSJ-03-19 Gun nozzle Round copper bar B110-121-000 BCSSJ-03-20 Gun nozzle bracket A Aluminum B110-122-000 BCSSJ-03-24 Gun side light bracket Q235 YHYX-LED01.PCB(V1.1)
  • Page 28 Water park splash v1.0 8.7 Decals...
  • Page 29 Water park splash v1.0 Part No. Diagram No. Name SPEC. Qty. Note B110-702-00 BCSSJ-HM-01 POP decal B110-703-00 BCSSJ-HM-02 Marquee B110-704-00 BCSSJ-HM-03 Yellow bottom B110-705-00 BCSSJ-HM-04 L_side decal B110-706-00 TY-HM-34 Ticket label B110-707-00 BCSSJ-HM-06 Control panel B110-708-00 BCSSJ-HM-13 R_side decal B110-709-00...
  • Page 30 Water park splash v1.0 8.8 Electrical Parts...
  • Page 31 Water park splash v1.0 Diagram Part No. Name SPEC. Qty. Note B110-437-00 Meter panel C-012 DC12V B110-438-00 RB1K B110-803-00 POT connected VR.PCB B110-439-00 POT knob Black B110-440-00 Test button PB:11C02R (green) B110-441-00 Test button PB:11C02R (red) B110-442-00 Speaker 4”, 4Ω, 15W...
