Universal Space Bowl Master C-512 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
www.universal-space.com
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bowl Master C-512 and is the answer not in the manual?

Questions and answers

Related Manuals for Universal Space Bowl Master C-512

Summary of Contents for Universal Space Bowl Master C-512

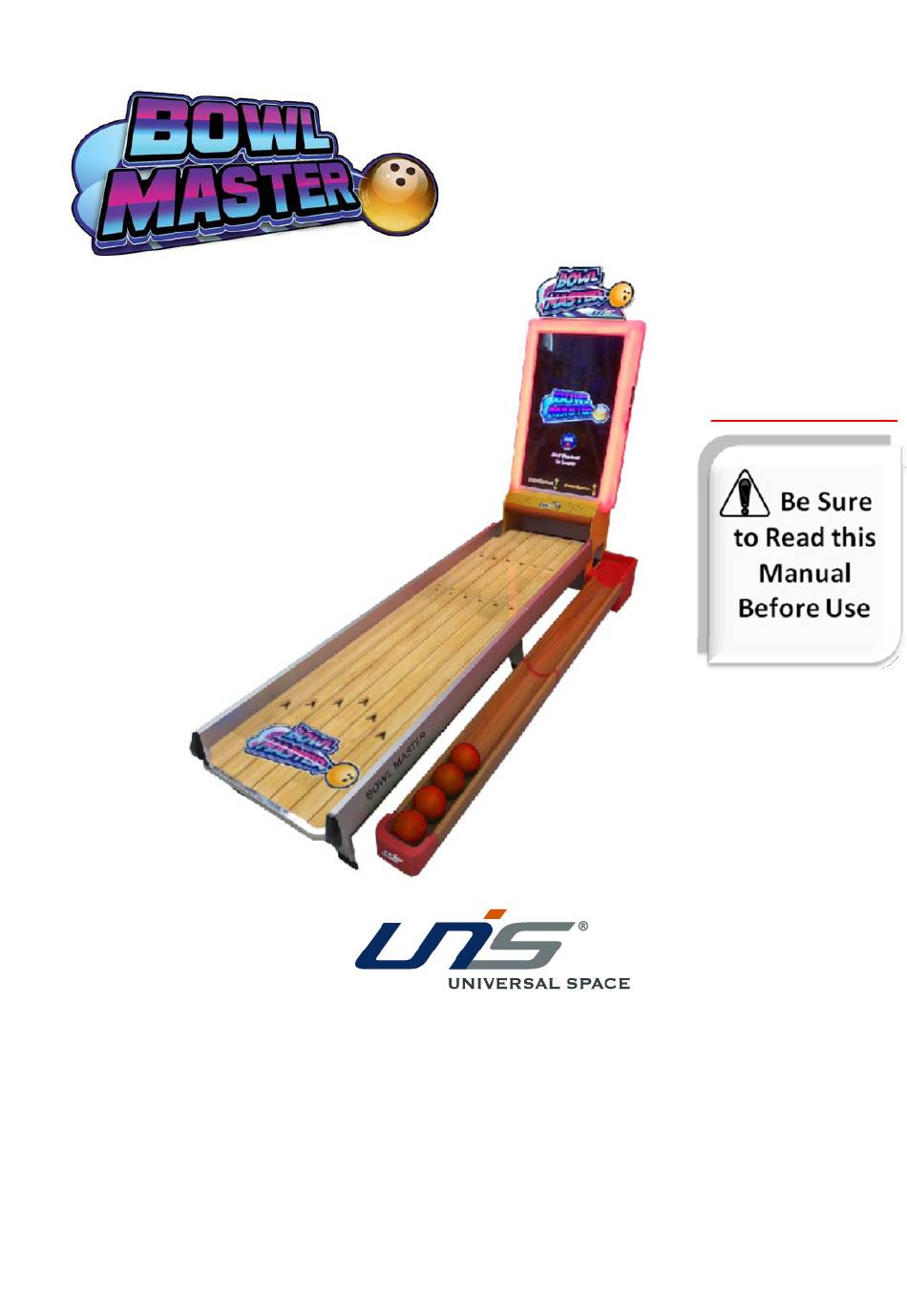

  • Page 1 IMPORTANT www.universal-space.com Operation Manual...

  • Page 2: Manual

    Bowl Master Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com When contacting Service, you will need the following information and the name of your authorized distributor. 10/22/2018...

  • Page 3: Table Of Contents

    Bowl Master Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS..............3 1. SPECIFICATIONS....................5 2. CONTENTS OF THE ACCESSORY KIT..............7 3. PART NAME......................8 4. SET UP & INSTALLATION..................9 5. HOW TO PLAY......................19 6. GAME OPTION..................... 20 7. TROUBLE SHOOTINGS..................22 8.

  • Page 4: Important Safety Instructions

    Bowl Master Manual Thank you for purchasing Bowl Master. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Bowl Master Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Bowl Master Manual 1. SPECIFICATIONS 1.1 Regular Version Size Rated power supply: AC100V-240V 50/60Hz Min. Power consumption: 100W Max. Power consumption: 120W Dimension: W20.19×D80.07×H57.03 in W512.9×D2033.8×H1448.5 mm Weight：Approximately 99.21 lb 45kg Part No: B130 Mode No: C512 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Bowl Master Manual 1.2 Extended Version Size Rated power supply: AC110V 50/60Hz Min. Power consumption: 100W Max. Power consumption: 120W Dimension: W20.19×D104.49×H57.03 in W512.9×D2653.8×H1448.5 mm Weight：Approximately 117.95 lb 53.5kg Part No: B130 Mode No: C512 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 8: Contents Of The Accessory Kit

    Bowl Master Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code No. Name Picture B130-411-000 23301010020 Power cord B130-801-000 41440000173J Manual B130-404-000 21901000010 Fuse(T3A) B130-405-000 21901000012 Fuse(T5A) B130-419-000...

  • Page 9: Part Name

    Bowl Master Manual 3. PART NAME Key Components Marquee assembly Monitor Speaker Lane Ball exit Ball 10/22/2018...

  • Page 10: Set Up & Installation

    Bowl Master Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 11 Bowl Master Manual Step 2 Erect the lane bracket, spin the support bar to fix it, then attach the screws as picture shown to fix the lane. Spin the support bar to the hole of the bracket. Spin the little bar to lengthen the support bar to go through the hole.
  • Page 12 Bowl Master Manual Step 3 Install the extendeded lane part by wrench as picture shown. Part No. Name Picture 1 B130-314-000 Cross recessed hexagon screw set Step 4 Install the ball slot part by Phillips screwdriver as picture shown. Part No. Name Picture 1 B130-322-000...
  • Page 13 Bowl Master Manual Step 5 Use the Allen hexagon wrench to lock the extendeded lane part as picture shown. Step 6 Match the red circle area and install the ball slot part on the machine as picture shown. Step 7 Use Phillips screwdriver to install the marquee part on the machine as picture shown.
  • Page 14 Bowl Master Manual 4.2 Machine Installation for Extended Version Before processing with assembly assure you have the following tools. Name Picture Use for Phillips screwdriver Step 4, Step 7 Wrench Step 3, Allen hexagon wrench Step 1, Step 2 Step 1 Unpack the machine and loose four screws at two sides to lay down the lane.
  • Page 15 Bowl Master Manual Step 2 Utilize Phillips screwdriver to loosen the screws to remove the original bracket, and install the new bracket. Then erect the lane bracket, spin the support bar to fix it, and attach the screws as picture shown to fix the lane. Spin the support bar to the hole of the bracket.
  • Page 16 Bowl Master Manual Step 3 Install the extended lane part by wrench as picture shown. Part No. Name Picture 1 B130-314-000 Cross recessed hexagon screw set Step 4 Install the ball slot part by Phillips screwdriver as picture shown. Part No. Name Picture 1 B130-322-000...
  • Page 17 Bowl Master Manual Step 5 Use the Allen hexagon wrench to lock the extendeded lane part as picture shown. Step 6 Match the red circle area and install the ball slot part on the machine as picture shown. 10/22/2018...
  • Page 18 Bowl Master Manual Step 7 Use Phillips screwdriver Install the marquee part on the machine as picture shown. Part No. Name Picture 1 B130-103-000 Cross round head screw 10/22/2018...
  • Page 19 Bowl Master Manual 4.3 PLAY ZONE This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in 10/22/2018...

  • Page 20: How To Play

    Bowl Master Manual 5. HOW TO PLAY 5.1 Roll the ball down to active lane. 5.2 Roll the ball down the lane to hit the pins. 5.3 Enjoy your entertainment bowling experience! Press the blue button to enter into setting menu.

  • Page 21: Game Option

    Bowl Master Manual 6. GAME OPTION 6.1 Setting menu 6.1.1 Main menu 6.2.2 Basic Setting Basic Setting Demo Music OFF/ON Customized Setting Memory Save OFF/ON Input Test Volume 1-10(7) Infrared Test Go Back&Save Game Reset Back Date/Time Setting Language/语言 About This Game Back to game 6.2.3 Customized Setting Ranking...
  • Page 22 Bowl Master Manual 6.2.6 Game Reset Factory Restore YES/NO Reset Basic Setting YES/NO Reset Customized Setting YES/NO Back 6.2.7 Date/Time Setting 6.2.8 About This Game Press the Test Button to Go Back Year 2010-2100 Month 1-12 Motherboard 1-31 Disk Drive Hour(24) 0-23 Memory...

  • Page 23: Trouble Shootings

    Bowl Master Manual 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Check connector. Game will not loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off...
  • Page 24 Bowl Master Manual Display Possible Cause Recommended action Loose connection to the Check and reconnect the sensor’s cables. loose cables of sensor. 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove recovery U disk from the machine. (Note: This process may take up to 60 minutes) Insert the memory stick into the U disk port at the back of the computer.

  • Page 25: Maintenance & Inspection

    Bowl Master Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.

  • Page 26: Overall Construction

    Bowl Master Manual 9. OVERALL CONSTRUCTION 9.1 Monitor Assembly Part No. Code Name 1 B130-105-000 20611605J018 Monitor protect plate 2 B130-118-000 20611605J005 Monitor foam 3 B130-104-000 20611605J008 Monitor frame 4 B130-103-001 20211605J025A POP fix plate 5 B130-702-000 20511605J001 Marquee POP 6 B130-113-000 20211605J003 Monitor mounting bar Monitor frame back...
  • Page 27 Bowl Master Manual Part No. Code Name 13 B130-121-000 20211605J005 Sensor cover 14 B130-117-000 20211605J018 Post fix plate 15 B130-111-000 20211605J001 Sensor frame B130-110-000 20211605J024 Bracket R side plate 1 B130-140-001 20211605J016A Screw 17 B130-415-000 20840910002 1.5'caster 18 B130-112-000 20611605J007 Damping foam 19 B130-106-000 20611605J009 Ball damping frame 1 20 B130-116-000 20611605J015...
  • Page 28 Bowl Master Manual 9.3 Front lane Part No. Code Name 1 B130-416-000 25300000148 R5 lock 2 B130-135-000 20211605J006 Lock L fix plate 3 B130-125-000 20211605J027 Lane L side bar 4 B130-139-000 20211605J008 Screw connect plate 1 2 5 B130-131-000 20211605J029 R side connect plate 1 6 B130-134-000 20611605J016 Damping pad 7 B130-126-000 20211605J028 R side connect plate 1...
  • Page 29 Bowl Master Manual 9.4 Back lane Part No. Code Name 1 B130-130-000 20611605J004 L side bar cover 2 B130-153-000 20211605J033 Lane back side bar(L) 1 3 B130-135-000 20211605J006 Lock L fix plate 4 B130-152-000 20211605J010 Screw connect plate 3 4 5 B130-502-000 20311605J002 Back lane plate 6 B130-136-000 20211605J007...
  • Page 30 Bowl Master Manual 9.5 Optional components Name Extended lane Extended ball slot Lane bracket Note: Please replace the original lane bracket with C (B130-183-000) if regular version machine is installed. Please refer to 4.2 for the Installation instruction. Part No. Code Name 1 B130-185-000 20211605J031...
  • Page 31 Bowl Master Manual Extended lane assy. Part No. Code Name 1 B130-171-000 20211605J037 Lane bracket B130-181-000 20211605J009 Fix bracket B130-180-000 20211605J011 Support bar 1 B130-179-000 20211605J012 Support bar 2 B130-178-000 20211605J013 Support bar 3 3 B130-172-000 20211605J015 Hinge 4 B130-176-000 20211605J038 Lane middle side bar(L) 1 5 B130-173-000 20211605J006 Lock L fix plate 6 B130-177-000 20211605J039 Screw connect plate 2 2...
  • Page 32 Bowl Master Manual 9.6 Decals Part No. Code Name 1 B130-702-000 20511605J001 Marquee POP 2 B130-703-000 20511605J002 Lane front decal 3 B130-704-000 20511605J003 Lane back decal 4 B130-707-000 20511605J007 Side LOGO decal 5 B130-708-000 20511605J008 Ball slot LOGO decal 1 6 B130-707-000 20511605J007 Side LOGO decal 7 B130-705-000 20511605J005 Speaker decal...
  • Page 33 Bowl Master Manual Part No. Code Name 1 B130-711-000 20511605J011 Voltage label B130-717-000 25600000067 Service label B130-720-000 25600000095 Service label (L) 1 B130-716-000 25600000042 Service label 1 3 B130-713-000 25600000018 Power SW label 4 B130-701-000 25600000073 Fuse label 5 B130-710-000 20511605J010 Nameplate 6 B130-709-000 20511605J009 Cable tie label 7 B130-714-000 25600000036 Warning label (S) 2...
  • Page 34 Bowl Master Manual 9.7 Electrical part Part No. Code Name B130-402-001 21201032018 32" monitor B130-412-000 23307010003 Video cable 2 B130-403-000 21603000051 Adapter B130-401-000 21107210027 Android board B130-413-000 23309000263E Cable set B130-405-000 21901000012 Fuse B130-406-000 21902000024 Fuse bracket B130-409-000 22702010021 B130-422-000 22702000011 Fan net 10/22/2018...
  • Page 35 Bowl Master Manual Part No. Code Name 1 B130-407-000 22002015003 5050 light-red 5M 2 B130-408-000 22402070002 Button assy. 1 B130-410-000 23201000003 Filter B130-411-000 23301010020 Power cord B130-404-000 21901000010 Fuse 4 B130-414-000 29711605002A Sensor board 1 5 B130-420-000 22801000091 Speaker 10/22/2018...

  • Page 36: Wiring Diagram

    Bowl Master Manual 10.WIRING DIAGRAM 10/22/2018...
