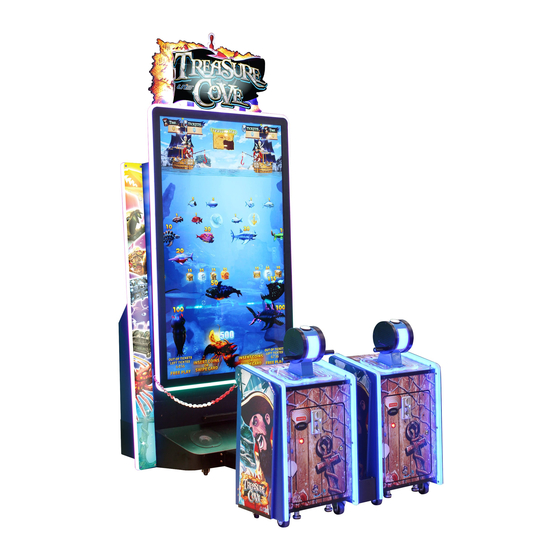

Summary of Contents for Universal Space TreaSure Cove

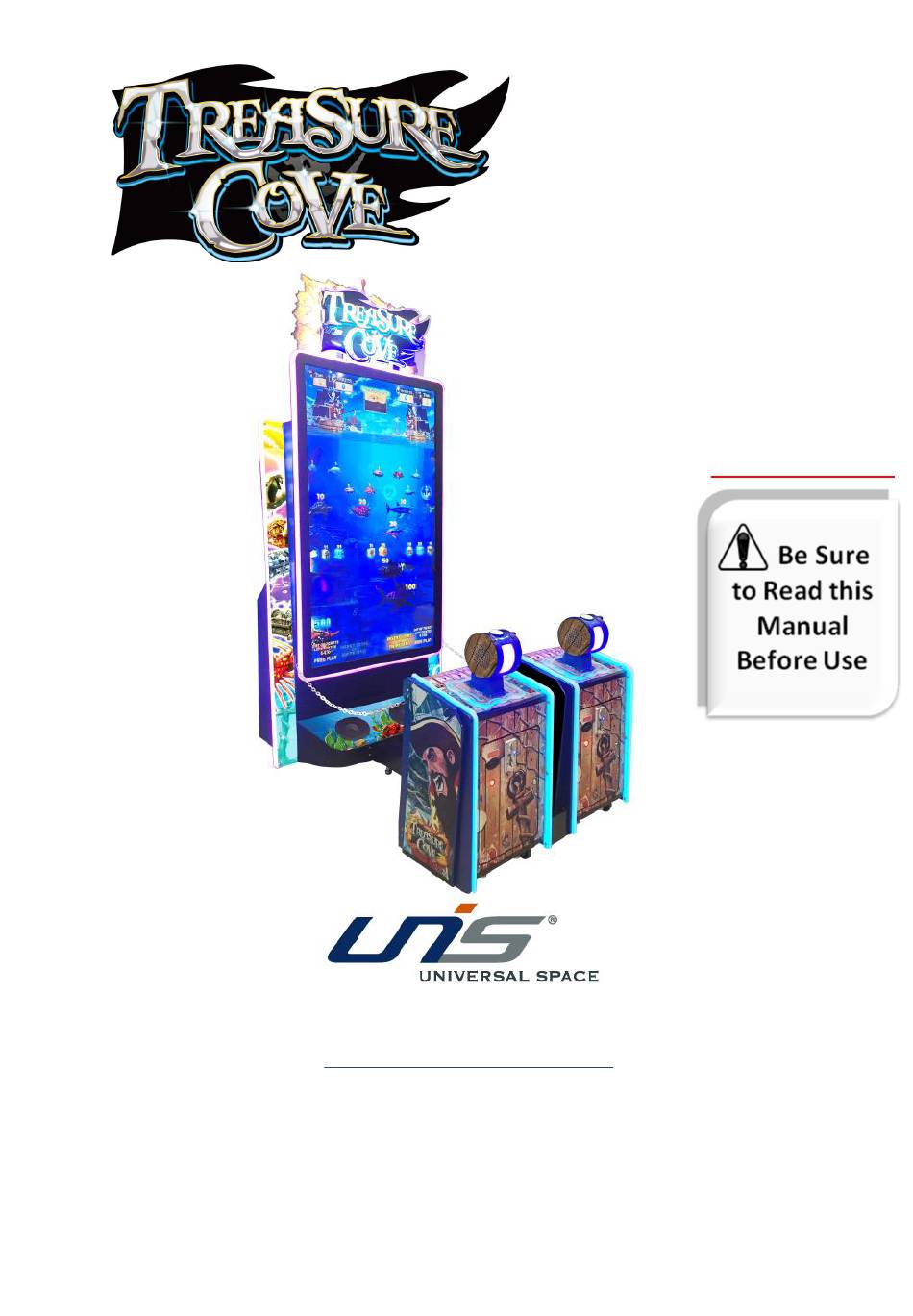

  • Page 1 IMPORTANT www.universal-space.com Operation Manual...

  • Page 2: Manual

    Treasure Cove Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor. 01/22/2019...

  • Page 3: Table Of Contents

    Treasure Cove Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS............... 3 1. SPECIFICATIONS....................5 2. CONTENTS OF THE ACCESSORY KIT..............8 3. PART NAME......................9 4. SET UP & INSTALLATION..................10 5. HOW TO PLAY.......................32 6. GAME OPTION......................34 7. TROUBLESHOOTING.................... 41 8. MAINTENANCE & INSPECTION................43 9. OVERALL CONSTRUCTION.................. 44 10.

  • Page 4: Important Safety Instructions

    Treasure Cove Manual Thank you for purchasing Treasure Cove. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Treasure Cove Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Treasure Cove Manual 1. SPECIFICATIONS Rated power supply: AC110V~ 50/60Hz; AC220V-240V~ 50/60Hz Min. Power consumption: 320W Max. Power consumption: 400W Minimum dimension: W50×D80.2×H103.7 in W1270×D2037×H2633 mm Maximum dimension: W50×D80.2×113.9 in W1270×D2037×H2893 mm Weight：Approximately 743 lb Approximately 337 kg Part No: T143...
  • Page 7 Treasure Cove Manual This machine will be divided into two parts during transportation. Control Panel Assembly Dimension: W45.7×D48.7×H40.3 (in) W1162×D1237×H1023 (mm) 01/22/2019...
  • Page 8 Treasure Cove Manual Monitor Assembly Dimension: W50×D31.5×H83.3 (in) W1270×D800×H2115 (mm) Note: Game specifications are subject to change without notice. 01/22/2019...

  • Page 9: Contents Of The Accessory Kit

    Treasure Cove Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture T143-801-000 25300171002 T143-802-000 25300172002 T143-805-000 41440000260 Manual T143-804-000 23301000001 Power cord T143-408-000...

  • Page 10: Part Name

    Treasure Cove Manual 3. PART NAME Key Components Marquee assembly Monitor assembly Side light plate assembly Control panel assembly Speaker Fishing rod assembly 01/22/2019...

  • Page 11: Set Up & Installation

    Treasure Cove Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 12 Treasure Cove Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 11.8 in Service area Play area 01/22/2019...
  • Page 13 Treasure Cove Manual Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver 4.4.1 Cabinet Connector Installation Name Picture Control panel to back box connector Connector box Cross recessed hexagon screws set (M6X25) Cross recessed hexagon...
  • Page 14 Treasure Cove Manual Step 2 Install Connector between Control panel assembly and Wooden case assembly. Step 3 Utilize cross recessed hexagon screws set (M6X25) to connect the Control panel assembly. 01/22/2019...
  • Page 15 Treasure Cove Manual Step 4 Connect wires according to the labels. Labels: D,E,F,G,H,I,J,K Step 5 Connect wires according to the labels. Labels: A1,A2,A3,A4,A5,B1,B2,B3,B4,B5 Step 6 Utilize cross recessed hexagon screws set (M6X16) to secure the Connector to the cabinet. 01/22/2019...

  • Page 16: Connector Box

    Treasure Cove Manual Step 7 Utilize cross recessed hexagon screws to secure the cover. Step 8 Place two Connector boxes between the Control panel assemblies. Step 9 Open Connector box and utilize cross recessed hexagon screws set (M6X16) to install the Connector boxes to the cabinets.
  • Page 17 Treasure Cove Manual 4.4.2 Marquee Installation Name Picture Marquee Marquee plate Cross recessed pan head screw set (M5X10) Cross recessed pan head screw set (M4X12) Washer C (φ4) Step 1 Utilize cross recessed pan head screws set (M5X10) to install the marquee.
  • Page 18 Treasure Cove Manual 4.4.3 Side Light Plate Installation Name Picture L side light plate R side light plate Cross recessed pan head screw set (M5X25) Stainless steel chain Step 1 Install light plate on both sides. 01/22/2019...
  • Page 19 Treasure Cove Manual Step 2 Utilize cross recessed pan head screws set (M5X25) to fix the side light plate. Step 3 Connect side light strip wires according to the labels. Labels: C1, C3. Step 4 Connect L side light plate GND(red) to the GND (red).
  • Page 20 Treasure Cove Manual Step 6 Install stainless steel chain on the hooks of Control panel assembly and Wooden case assembly. 4.4.4 Monitor Lifting Up Instruction Step 1 Open the back door and remove 4 screws. 01/22/2019...
  • Page 21 Treasure Cove Manual Step 2 Remove screws to take the wrench out and set the block position. Note:Up=monitor up(as shown above) Down=monitor down Step 3 Turn the wrench to lift the monitor up or down. 01/22/2019...
  • Page 22 Treasure Cove Manual Step 4 Insert screws when the monitor is reach to the required position. 01/22/2019...
  • Page 23 Treasure Cove Manual 4.5 Monitor Replacement Installation Step 1 Remove stainless steel chain. Step 2 Remove screws and take marquee plate off. 01/22/2019...
  • Page 24 Treasure Cove Manual Step 3 Unplug upper marquee wires according to the labels. Labels: C2 Step 4 Unplug monitor light strip wires according to the labels. Labels: C4,C5 Step 5 Remove screws and take marquee off. 01/22/2019...
  • Page 25 Treasure Cove Manual Step 6 Open the back door. If the monitor height is on the lowest height, please loosen the screws as shown below. Lowest height Note: If the monitor height isn’t on the lowest height, please follow the following operations to adjust the monitor.
  • Page 26 Treasure Cove Manual Step 7 Remove six screws as shown below and take monitor fixed plate off. Step 8 Remove two screws as shown below and take point plate off. Step 9 Remove four screws as shown below and take jack upper plate off.
  • Page 27 Treasure Cove Manual Step 10 Remove nuts and take monitor centralizer off. Step 11 Lift monitor assembly about 1.5 inch up and pull out. 01/22/2019...
  • Page 28 Treasure Cove Manual Step 12 Remove monitor screws and take pressing plate and light strip off. 01/22/2019...
  • Page 29 Treasure Cove Manual Step 13 Remove monitor screws and nuts as picture shown below. Remove frame, monitor, plastic and cover frame in order. Frame Monitor Plastic Cover frame 01/22/2019...
  • Page 30 Treasure Cove Manual Step 14 Place frame on the new monitor. Utilize screws to secure frame. 01/22/2019...
  • Page 31 Treasure Cove Manual Step 15 Turn over the frame, place plastic and cover frame in order. Cover frame Plastic Step 16 Utilize nuts to secure plastic and cover frame to prevent the plastic and cover frame from falling when turning over.
  • Page 32 Treasure Cove Manual Step 17 Turn over and utilize screws to secure. The rest installation method of monitor please refer to Step 1-Step 12 in reversed order. Finish! 01/22/2019...

  • Page 33: How To Play

    Treasure Cove Manual 5. HOW TO PLAY 5.1 Game Instruction 1. Insert coins or swipe card. Fishing 2. Aim for your target. Press the rod will move left&right. button to lower the hook. 4. Collect wooden, silver&golden treasure 3. Rotate the handle to reel in the fish.
  • Page 34 Treasure Cove Manual 5.2 Special Item Instruction Picture Name Instruction It will split into 4 tiny jellyfish. Need to catch again after splitting.The Jelly Fish points or tickets of the tiny jellyfish are the same as the small fish A.

  • Page 35: Game Option

    Treasure Cove Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Test Reset Settings 6.2 Setting menu 6.2.1 Main Menu Language Basic Setting...
  • Page 36 Treasure Cove Manual 6.2.3 Customized Setting Game Mode *Ticket Mode/**Point Mode Start Count Down 0-9(3) Back&Save Back 6.2.3.1 *Ticket Mode Setting Game Coins 1-5(1) Time Mode/Hook Round Mode Mode Round Time 10-40(15) Round Hooks 1-10(6) Average Payout 10-60(40) Small Fish A Tickets...
  • Page 37 Treasure Cove Manual Mini Game Treasure Box A Tickets Mini Game Treasure Box B Tickets Mini Game Treasure Box C Tickets Shell Game Pearl A Tickets Shell Game Pearl B Tickets Shell Game Pearl C Tickets 300-1000(500) Lobster King Tickets Note: The number of tickets are decided by the number of coins, game time and hooks in each round.
  • Page 38 Treasure Cove Manual 1-200(60) Big Fish B Points 1-200(30) TreasureBox A Points 1-200(20) TreasureBox B Points 1-200(10) TreasureBox C Points 1-200(10) MiniGame TreasureBox A Points 1-200(8) MiniGame TreasureBox B Points 1-200(5) MiniGame TreasureBox C Points 1-200(30) Shell Game Pearl A Points...
  • Page 39 Treasure Cove Manual 6.2.4 Input Test Input Test Test Button OFF/ON Recovery Button OFF/ON Cast Button OFF/ON 2P Cast Button OFF/ON Reel Count 2P Reel Count Input Coins 2P Input Coins Press Settings Button to Back 6.2.5 Output Test Output Test...
  • Page 40 Treasure Cove Manual 6.2.7 Date Time Setting 6.2.8 Language Year Language English/Chinese Month Hour(24) Minute Second Back & Save Back 6.2.9 Bookkeeping Bookkeeping Player Coins Tickets PayOut ***** ***** ***** ***** ***** ***** ***** ***** ***** ***** ***** ***** Back 6.2.10 Resistance and Shock Setting...
  • Page 41 Treasure Cove Manual 6.2.11 Daily Record Daily Record Date Date Coins Tickets Payout ***** ***** ***** ***** ***** ***** ***** ***** ***** ***** ***** ***** Prev Page Next Page Clear Back 6.2.12 About This Game MotherBoard Monitor Screen Version Back...

  • Page 42: Troubleshooting

    Treasure Cove Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 43 Treasure Cove Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Please check and reconnect The connecting cable of IO board and the loose cable of PC and IO PC is loose.

  • Page 44: Maintenance & Inspection

    Treasure Cove Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.

  • Page 45: Overall Construction

    Treasure Cove Manual 9. OVERALL CONSTRUCTION 9.1 Backboard Assembly Part No. Code No. Name 1 T143-524-000 20341808020 L side plate 2 T143-526-000 20341808022 Front plate 3 T143-534-000 20341808029 Speaker box 4 T143-523-000 20341808002 Bottom base plate 5 T143-527-000 20341808003 Base plate...
  • Page 46 Treasure Cove Manual 9.2 Control Panel Box Assembly Part No. Code No. Name 1 T143-505-000 20341808008 Control panel R outer plate T143-519-000 20341808018 R control panel R side plate T143-503-000 20341808006 L control panel R side plate 3 T143-508-000 20341808011...
  • Page 47 Treasure Cove Manual 9.3 Frame Assembly Part No. Code No. Name T143-176-000 26000008000 Leveller T143-177-000 26000010000 Leveller bracket T143-462-000 25501000056 2.5’’caster 2 T143-113-000 20241808010 Speaker net 3 T143-114-000 20241808011 Monitor support plate 1 4 T143-451-000 40612010002 Jack ST-105C 5 T143-118-000 20241808015 Monitor centralizer...
  • Page 48 Treasure Cove Manual 9.4 Control Panel Assembly Left Right Part No. Code No. Name 1 T143-103-000 20241808001 Front molding 2 T143-463-000 26300000001 Hinge 3 T143-183-000 26000051000 Ticket exit plate 4 T143-459-000 25300171001 Lock 5 T143-183-000 26000051000 Ticket exit plate 6 T143-106-000 20241808004...
  • Page 49 Treasure Cove Manual 9.5 Cabinet Connector Assembly Part No. Code No. Name 1 T143-176-000 26000008000 Leveller 2 T143-129-000 20241808023 R strengthening bracket 3 T143-126-000 20241808020 Connective plate 4 T143-127-001 20241808021A Connective cover plate 5 T143-128-000 20241808022 L strengthening bracket 01/22/2019...
  • Page 50 Treasure Cove Manual 9.6 Fishing Rod Assembly Part No. Code No. Name 1 T143-138-000 20241808029 L cover 2 T143-538-000 20341808034 Wooden frame 3 T143-135-000 20641808008 Plastic frame 4 T143-352-000 20106000303A Deep groove ball bearing 5 T143-136-000 20241808027 L plate 6 T143-454-000 23404000246...
  • Page 51 Treasure Cove Manual 9.7 Marquee Assembly Part No. Code No. Name 1 T143-165-000 20241808047A Light strip fixed slot 2 T143-701-000 20541808001 Marquee plastic 3 T143-166-000 20241808048 Light strip pressing plate 4 T143-189-000 20241808055 Marquee reinforced plate 5 T143-121-000 20241808016 Marquee fixed bracket...
  • Page 52 Treasure Cove Manual 9.8 Connector Box Part No. Code No. Name 1 T143-112-000 20241808009 Connective cover plate 1 2 T143-111-000 20241808008 Connective plate 01/22/2019...
  • Page 53 Treasure Cove Manual 9.9 Monitor Assembly Left Right Bottom Part No. Code No. Name 1 T143-150-000 20241808036 Cover frame connective plate T143-147-000 20241808034 Cover frame bar (Top&bottom) T143-148-000 20241808035 Cover frame bar (Left&right) 3 T143-146-000 20641808010 Monitor clear plastic T143-151-000 20641808011 Monitor protective bar (horizontal) 2...
  • Page 54 Treasure Cove Manual Part No. Code No. Name 13 T143-145-001 20241808033A Monitor frame 14 T143-149-000 20641808004 Monitor surrounding light plastic T143-157-000 20241808040 Light plastic pressing plate (Top) T143-158-000 20241808041 Light plastic pressing plate (Bottom) 1 T143-159-000 20241808042 Light plastic pressing plate (Left)
  • Page 55 Treasure Cove Manual Artwork Part Part No. Code No. Name 1 T143-704-000 20541808004 Marquee back plastic 2 T143-703-001 20541808003A Monitor R plastic 3 T143-702-001 20541808002A Monitor L plastic 4 T143-706-000 20541808006 Control panel R decal 5 T143-705-000 20541808005 Control panel L decal...
  • Page 56 Treasure Cove Manual Part No. Code No. Name 1 T143-718-000 25600000101 Counter label 2 T143-722-000 25600000036 Warning label (Small) 3 3 T143-719-001 20541808018 Recovery stick label 4 T143-731-000 25600000093 Dongle label 5 T143-723-000 25600000037 Warning label (Large) 2 6 T143-730-000 25600000091...
  • Page 57 Treasure Cove Manual Part No. Code No. Name 1 T143-711-001 20541808011A Wiring label Part No. Code No. Name 1 T143-717-001 20541808017A Monitor lifting up instruction 2 T143-715-000 20541808015 Height label 01/22/2019...
  • Page 58 Treasure Cove Manual Part No. Code No. Name 1 T143-734-000 20541808019 Monitor notice label 2 T143-735-000 20541808020 Monitor lifting up instruction 01/22/2019...
  • Page 59 Treasure Cove Manual Electrical Part Part No. Code No. Name 1 T143-445-001 29791300001A M3 mainboard (USA) 1 2 T143-434-000 23304000021 Cable 3 T143-428-001 22803010009A Amplifier board 4 T143-436-000 23305000003 Audio cable 5 T143-402-000 21102000079A 6 T143-406-001 21602000013 Power supply 7 T143-405-000 21602000076...
  • Page 60 Treasure Cove Manual Part No. Code No. Name 1 T143-417-000 22301000002 Coin mechanism 2 T143-430-000 23100000005 Ticket dispenser 3 T143-405-000 21602000076 DC power supply 4 T143-444-000 29790700002 Ticket exchange board 5 T143-446-000 29791400001 POT connective board 6 T143-429-000 23000000006 Counter...
  • Page 61 Treasure Cove Manual Part No. Code No. Name 1 T144-181-001 26000042000B Wiring box 2 T144-424-000 22601000005 Rocker switch 3 T144-404-000 21412000001 Binding post 4 T144-431-000 23201000001A Filter 5 T144-804-000 23301000001 Power cord T144-408-000 21901000030B Fuse T144-409-000 21902000006 Fuse block T144-425-000 22702000010...
  • Page 62 Treasure Cove Manual 01/22/2019...
  • Page 63 Treasure Cove Manual Part No. Code No. Name 1 T143-415-000 22003080017 5630 light (Long) 2 T143-414-000 22003080009 5630 light (Short) 3 T143-412-000 22002016037 3528 flexible light strip 31.5 in/0.8m 4 T143-410-000 22002013002 RGB flexible light strip 220.5 in/5.6m 5 T143-410-000 22002013002 RGB flexible light strip 153.5 in/3.9m 6 T143-411-000 22002013003 LED flexible light strip 149.6 in/3.8m...

  • Page 64: Wiring Diagram

    Treasure Cove Manual . WIRING DIAGRAM 01/22/2019...
  • Page 65 Treasure Cove Manual 01/22/2019...
