Universal Space Pin Setter Operation Manual page 23

Pin Setter Manual

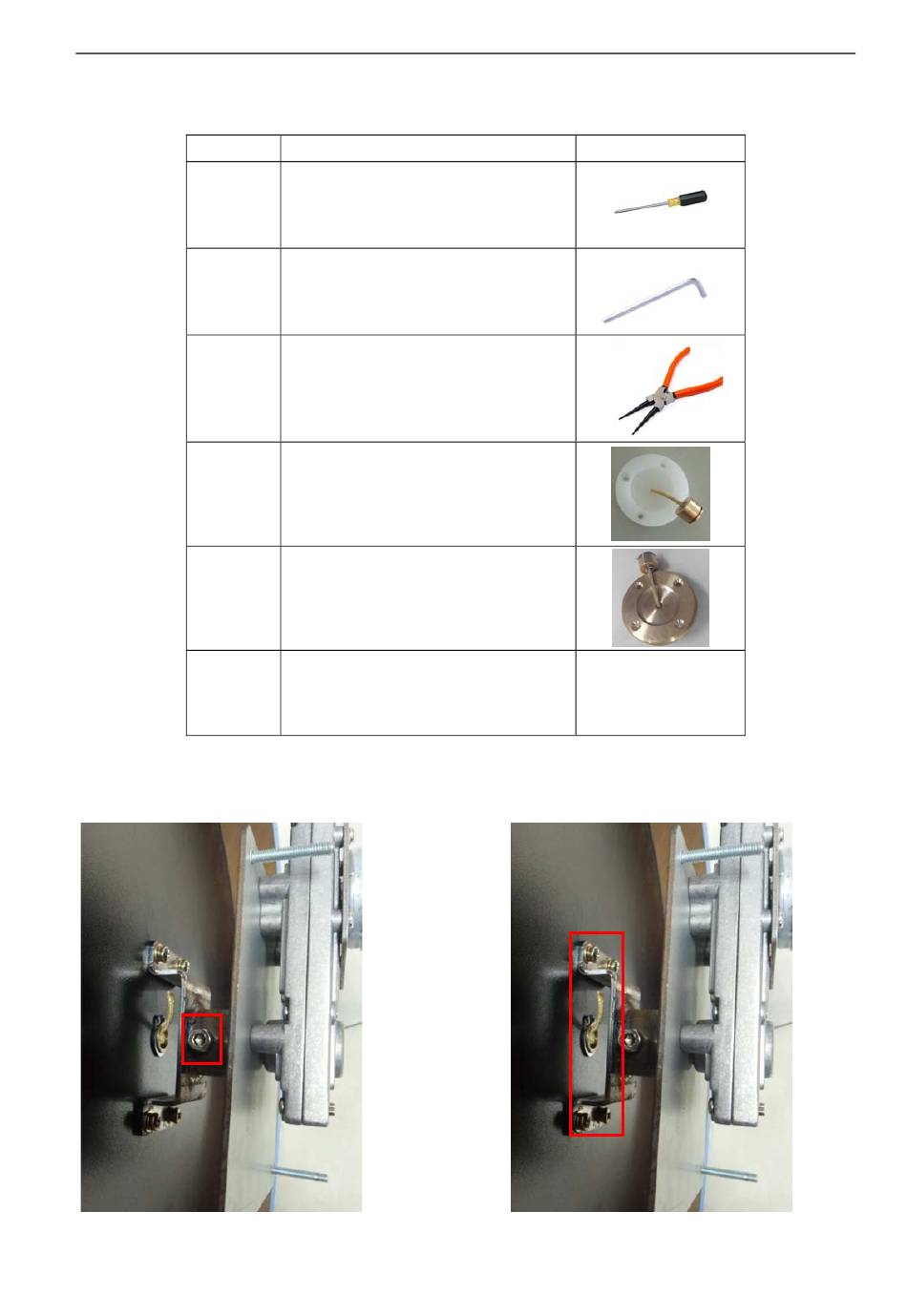

8.3.3 Changing the Bowling pin bottom assy.
Before processing with assembly assure you have the following tools and part.
No.
1
2
3
4
Alternative Bowling pin bottom assy.(heavy)
Step 1 Power off the game. Loosen the
screw in red area. Then, take out the motor.
22
04/18/2018
Name
Phillips screwdriver
L type wrench
Circlip pliers
Bowling pin bottom assy.(normal)

Step 2 Loosen the four screws in red area.
Then, take out the motor mounting bracket.
