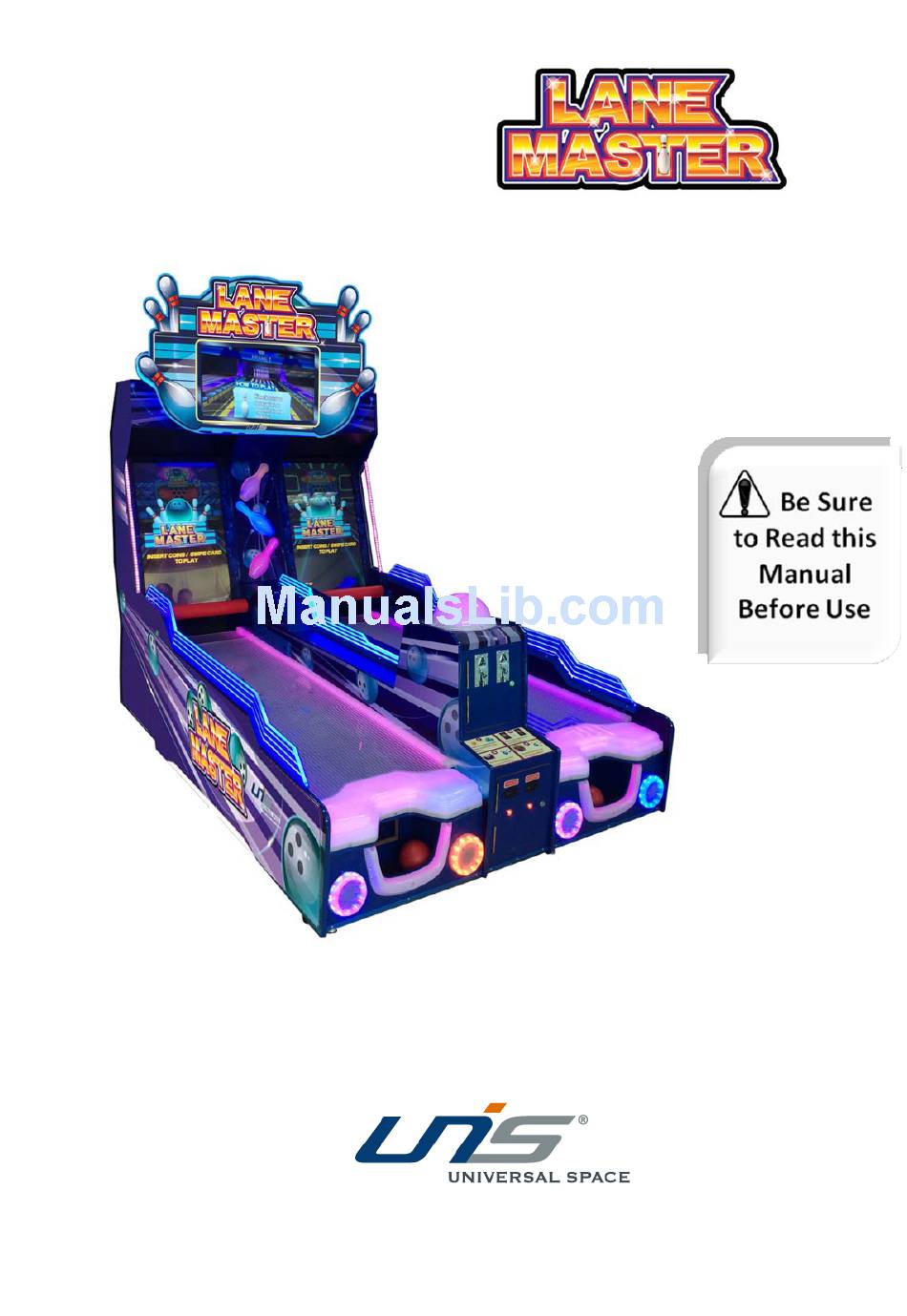

  • Page 1 Operation Manual www.universal-space.com...
  • Page 2 Lane Master Manual For parts and service Have Questions? Contact us! International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email: service@unisusasupportcenter.com...

  • Page 3: Table Of Contents

    Lane Master Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ..................... 5 2. PACKAGE CONTENTS ....................7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ......................12 6. GAME OPTION ....................... 15 7.

  • Page 4: Important Safety Instructions

    Lane Master Manual Thank you for purchasing Lane Master. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Lane Master Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Lane Master Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 520W Max. Power consumption: 580W Dimension: W65×D115.2×H116.2 in Weight：Approximately 440 lb Part No: L105 Model No: C-489 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Lane Master Manual This machine will be divided into two parts during transportation. Display part: W65×D28.8×H82.7 in Lane part: W64.34×D87.21×H40.12 in Note: Game parameters are subject to change without notice.

  • Page 8: Package Contents

    Lane Master Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture 1 L105-801-000 25300171002 (171) 2 L105-803-000 25300172002 (171B) 3 L105-802-000 23301010020 Power cord Fuse 4 L105-529-000 21901000013 (Φ5×20mm...

  • Page 9: Part Name

    Lane Master Manual 3. PART NAME Marquee Assy. Display Coin Assy. Play field Ticket dispenser Service cabinet...

  • Page 10: Set Up & Installation

    Lane Master Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface ...
  • Page 11 Lane Master Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area...
  • Page 12 Lane Master Manual 4.4 Marquee Installation 4.4.1 Place the marquee on the display 4.4.2 Lift up the marquee above the display frame. frame as shown and install hardware Note: It is recommended to have the minimum of two where indicated by the red arrows.
  • Page 13 Lane Master Manual 4.5 Cabinet Installation 4.5.1 Lane Assembly： Place 2 Lanes side by side, open the coin door and the ticket door to install the hardware in the red arrow area. ( Front :P4; Back: P5) 4.5.2 Lane Assembly & Display Assembly: Place the Lane in front of the display assembly and install as shown.
  • Page 14 Lane Master Manual 4.6 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.
  • Page 15 Lane Master Manual 5. HOW TO PLAY 5.1 Insert coins/swipe to start.. 5.2 For competition, insert coin/swipe card to active each lane. 5.3 Roll the ball down the lane to hit the pins. 5.4 Hit the Turkey to win the MEGA BONUS!

  • Page 16: Game Option

    Lane Master Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press test button to get into the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu 6.2.2 Basic Setting...
  • Page 17 Lane Master Manual 6.2.4Input Test 6.2.5 Output Test OFF/ON 1P Coin 2P Infrared1 OFF/ON OFF/ON 2P Coin 2P Infrared2 OFF/ON OFF/ON Service Button 2P Infrared3 OFF/ON OFF/ON Reset Button 2P Infrared4 OFF/ON OFF/ON 1P Lane Sensor 2P Infrared5 OFF/ON OFF/ON...
  • Page 18 Lane Master Manual 6.2.5 Output Test 6.2.6 Game Reset Factory Restore YES/NO 1P Send Ticket Reset Basic Setting YES/NO 2P Send Ticket Reset Customized Setting YES/NO 1P Send Ball Clear All Records YES/NO 2P Send Ball Clear Owed Ticket YES/NO...
  • Page 19 Lane Master Manual 6.3 Display Advertisement Operation In Version 1.05 for Lane Master, operator can put advertisement to the machine and display on the top monitor. Please note that the advertisement video format has to be AVI. Please prepare a mouse, a keyboard and a memory stick.
  • Page 20 Lane Master Manual 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm whether every connector connected tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Plug the connector tightly. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 Lane Master Manual Symptom Possible Cause Recommended action Update the driver of the video card or Display blue screen Software problem. reinstall the system. when playing Hardware problem. Check the hardware one by one. Playing normal, but Video card is loose or poor Plug video card again.
  • Page 22 Lane Master Manual 7.2 System Recovery Operation 1. Turn off the game. Remove recovery USB from the header. (Note: This process may take 30-45 minutes to reform.) Insert the memory stick into the USB port at the back of the computer.

  • Page 23: Maintenance & Inspection

    Lane Master Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 24 Lane Master Manual 8.4 Disassemble the lane front plastic Loose 4 screws on the wood board under the front plastic Screws inside Front plastic Lift up the front plastic. Unplug the plug before take out the front plastic 8.5 Display maintenance 8.5.1 Disassemble displays...
  • Page 25 Lane Master Manual Metal plate 1 (3 screws) Metal plate 2&3 (2 screws) Metal plate 4 (2 screws) Note: Please hold the plastic of the display when removing metal plate 4 or it may drop down. Please reassemble display part reversed order.
  • Page 26 Lane Master Manual WARNING  • Before servicing the machine, be sure to turn power off. Servicing without turning the power off can cause electric shock or short circuit. • To avoid electric shock or short circuit, do not plug then unplug the power quickly •...

  • Page 27: Overall Construction

    Lane Master Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name 1 L105-010-000 29911605A003 Marquee Assy. 1 2 L105-001-000 29911605A001 Display Assy. 1 3 L105-003-000 29911605A002 Lane Assy.
  • Page 28 Lane Master Manual 9.2 Display Assy. Part No. Code No. Name 1 L105-222-000 20611605028 Light bar fixed plate 2 L105-235-000 20611605002 Light plate 3 L105-002-000 29911605A004 Display Wood frame Assy. 1 4 L105-296-000 26000042000A Power box assy. 5 L105-214-000 20211605009...
  • Page 29 Lane Master Manual Part No. Code No. Name 1 L105-213-000 20211605008 Display horizontal cover 2 2 L105-230-000 20211605018 Display fixed plate 3 L105-231-000 20611605012 Display vertical bar 4 L105-212-000 20211605007 Display fixed bracket 5 L105-211-000 20211605006 Display mounting bar 4...
  • Page 30 Lane Master Manual Part No. Code No. Name 1 L105-216-000 20211605010 Damping fixed bracket 2 L105-218-000 20211605012 Protect bar connecting rod 4 3 L105-215-000 20211605056 Protect bar 4 L105-305-000 29911605003 Bumper protect bar 9.3 Display Frame Part No. Code No.
  • Page 31 Lane Master Manual Part No. Code No. Name 4 L105-207-000 20211605003 Rear R Lane reinforced board 4 5 L105-208-000 20211605004 Rear L Lane reinforced board 2 5 L105-290-000 26000008000 Cabinet leveller L105-291-000 26000010000 Caster bracket 7 L105-204-000 20211605002 Lane reinforced board...
  • Page 32 Lane Master Manual Part No. Code No. Name 11 L105-288-000 20251301065 Speaker net light bracket 4 12 L105-005-000 29911605A006 R Lane frame Assy. 13 L105-266-000 20611605003 Bowling light cover L105-267-000 20211605029 L side plastic fixed plate 1 L105-268-000 20211605030 R side plastic fixed plate 1...
  • Page 33 Lane Master Manual 9.5 Left sensor Assy. Part No. Code No. Name 1 L105-238-000 20211605019 Sensor fixed plate 1 9.6 Right sensor Assy. Part No. Code No. Name 1 L105-240-000 20211605021 Sensor fixed plate 2 1 9.7 Ball out Assy.
  • Page 34 Lane Master Manual Part No. Code No. Name 1 L105-249-000 20211605023 Up bowling bracket 2 L105-250-000 20211605024 Motor shaft 3 L105-255-000 20611605014 Damping board 4 L105-481-000 20311605024 Cabinet support board 1 5 L105-252-000 20211605051 Eccentric wheel pad 1 6 L105-251-000 20611605023...
  • Page 35 Lane Master Manual 9.9 Ball basket light Assy. Part No. Code No. Name 1 L105-329-000 20611605039 Bowling light plate 2 L105-330-000 20611605040 Bowling light cover 9.10 Marquee Assy. Part No. Code No. Name L105-314-000 20611605035 Light bar 4 L105-315-000 20611605036...
  • Page 36 Lane Master Manual Part No. Code No. Name 1 L105-278-000 20211605034 Marquee fixed plate 2 L105-280-000 20211605035 Marquee connected rod 1 3 L105-282-000 20211605037 Fixed connected rod 4 L105-281-000 20211605036 Marquee fixed bracket 1...
  • Page 37 Lane Master Manual 9.11Decals Part No. Code No. Name L105-703-000 20511605A003 L top side decal L105-704-000 20511605A004 R top side decal 2 L105-732-000 20511605A017 Marquee decal 3 L105-715-000 20511605014 Display frame L105-706-000 20511605A005 L side 01 L105-707-000 20511605A006 L side 02...
  • Page 38 Lane Master Manual Part No. Code No. Name 1 L105-722-000 25600000036 Warning label S 2 L105-718-000 20511605A020 Meter label 3 L105-719-000 26601100283 U disk label 4 L105-730-000 25600000096 Service label (S) L105-723-000 25600000037 Warning label L L105-729-000 25600000095 Service label (L)
  • Page 39 Lane Master Manual 9.12 Electrical components Part No. Code No. Name 1 L105-531-000 22002013003 LED soft light band 5.5 L105-568-000 23307010002 DVI-HDMI cable L105-569-000 23307060001 DVI-DVI cable L105-522-000 21201032006 32" display assy. L105-555-000 23307000021 DP-DVI cable L105-554-000 23307000015 DVI-DVI cable L105-523-000 21201042002 42"...
  • Page 40 Lane Master Manual Part No. Code No. Name L105-539-000 22301000001 Coin mech. L105-538-000 22201000028 12V white light socket 2 L105-537-000 22003000018 LED light bulb 2 L105-550-000 23100000005 Ticket dispenser 3 L105-536-000 22003000003 LED light bulb(12V) 4 L105-549-000 23000000005 Meter L105-543-000 22403000001...
  • Page 41 Lane Master Manual Part No. Code No. Name L105-519-000 21102000051 L105-521-000 21107030038 PC graphic card 2 L105-520-000 21107020036 Dongle 3 L105-564-000 41300000005 U disk 4 L105-552-000 23304030001 USB extended cable 5 L105-551-000 23301050002 Power cord 6 L105-553-000 23305000003 Audio cable...
  • Page 42 Lane Master Manual Part No. Code No. Name 1 L105-524-000 21503000034 Sensor SW 2 L105-558-000 29710701003 Sensor board 3 L105-525-000 21503000053 Sensor SW(receive) 10 4 L105-526-000 21503000052 Sensor SW(send)
  • Page 43 Lane Master Manual AC110 Part No. Code No. Name 1 L105-544-000 22601000005 Rocket SW (S) 1 L105-517-000 21902000006 Fuse socket L105-529-000 21901000013 Fuse L105-545-000 22702000010 Fan net L105-546-000 22702010025 DC fan 4 L105-566-000 23201000001 Filter...

  • Page 44: Wiring Diagram

    Lane Master Manual WIRING DIAGRAM...
  • Page 45 Lane Master Manual...
