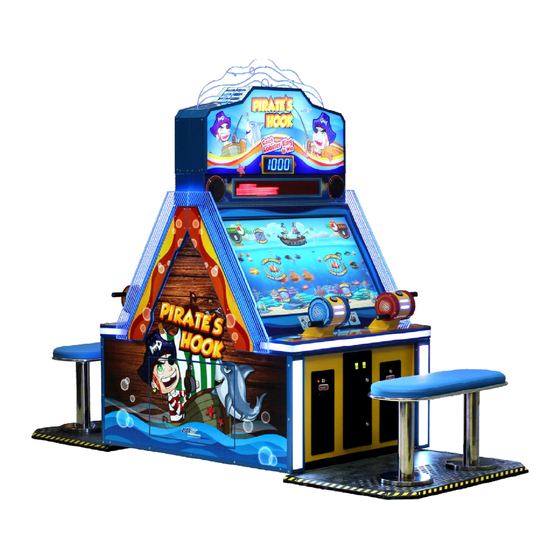

Universal Space Pirate's Hook Operation Manual

Hide thumbs Also See for Pirate's Hook:
Table of Contents

Advertisement

Quick Links

Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pirate's Hook and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space Pirate's Hook

Summary of Contents for Universal Space Pirate's Hook

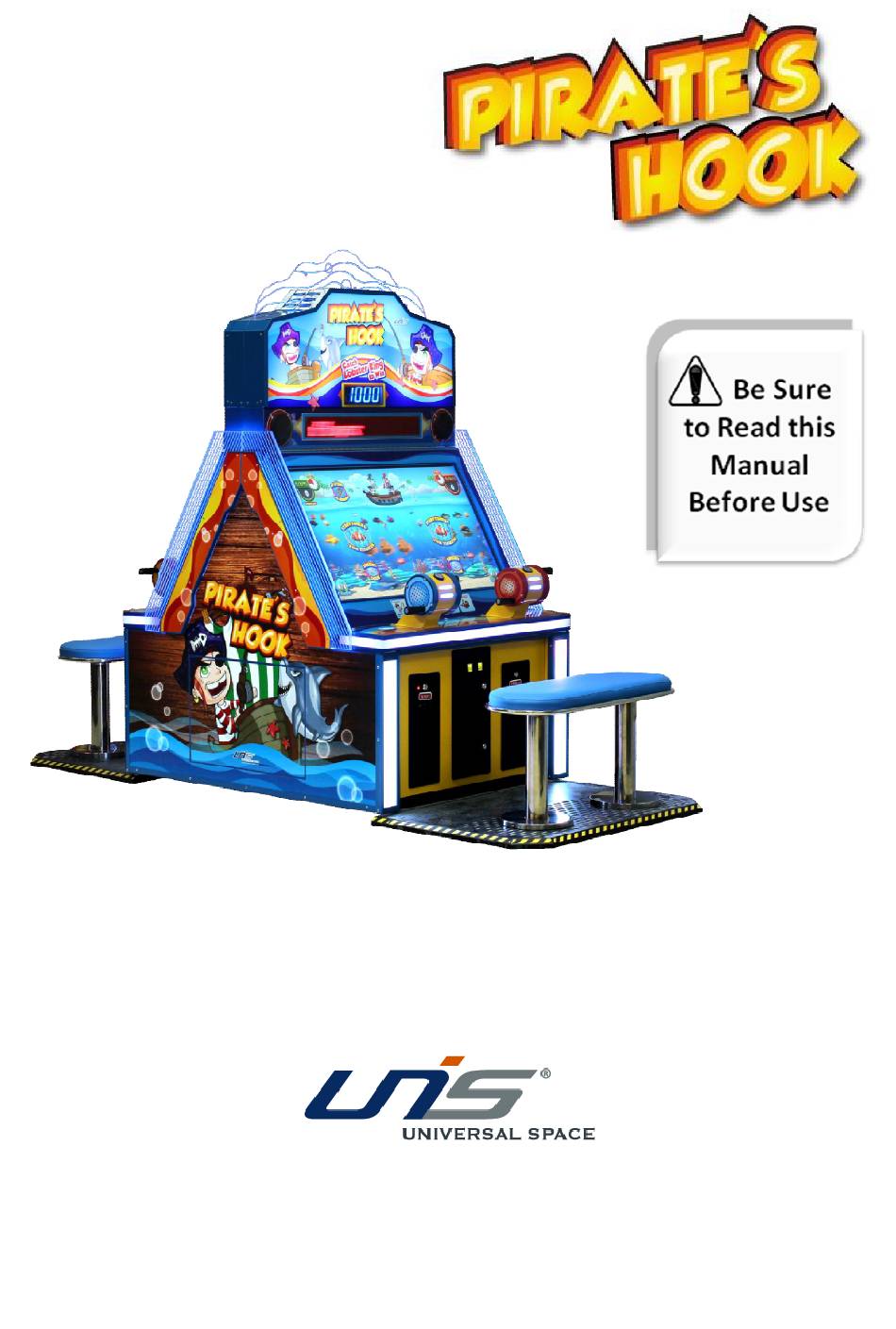

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Pirate’s Hook 4p Manual CONTENT Important Safety Instructions………………………………………….………………………….……2 1. SPECIFICATIONS……………………………………………………………………….………………...4 2. PACKAGE CONTENTS……………………………………………………………………………….….5 3. PART NAMES…………………………………………………………………………......…6 4. SET UP & INSTALLATION………………………………………………………………………….….7 5. HOW TO PLAY……………………………………………………………..……………………….……10 6. GAME OPTION………………………………………………………..…………………………………11 7. ERROR MESSAGE AND RECOVERY…………………………………………………….………16 8. MAINTENANCE, INSPECTION………………………………………………………………….….17 9. OVERALL CONSTRUCTION…………………………………………………………..……………..18 Non-technical personnel who do not have technical knowledge and Expertise should refrain from performing such work that this manual require or perform tasks which are not explained in this manual.

  • Page 3: Important Safety Instructions

    Pirate’s Hook 4p Manual Thank you for purchasing Pirate’s Hook from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Pirate’s Hook 4p Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Pirate’s Hook 4p Manual 1. SPECIFICATIONS Rated power supply: AC220-240V 50/60Hz Min. Power consumption: 210W Max. Power consumption：380W Dimensions： W2707×D1074×H2043(mm) Weight： Approximately 380kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice. NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Package Contents

    Pirate’s Hook 4p Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly  Following accessories Part number Code Name SPEC. Qty Illustration Power 10A/250V P113-450-000 23301000001 cord 1.8m P113-740-000 41460837083 Manual Chinese P113-451-000 25300171002...

  • Page 7: Part Names

    Pirate’s Hook 4p Manual 3. PART NAME Marquee Monitor Control panel Cabinet Fishing mech. Ticket payout Coin door Stool assembly...

  • Page 8: Set Up & Installation

    Pirate’s Hook 4p Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Pirate’s Hook 4p Manual 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 Pirate’s Hook 4p Manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. ◎...

  • Page 11: How To Play

    Pirate’s Hook 4p Manual 5. HOW TO PLAY 5.1 Game Interface Current tickets Play time Main play zone Current coins 5.2 How To Play The machine provides for 4 players at the same time. 1. Insert coin(s). 2. aim for your target, press the button to lower the hook.

  • Page 12: Game Option

    Pirate’s Hook 4p Manual 6. GAME OPTIONS 6.1 Testing Button Distribution: You can see the testing button after you open the coin door below orange fishing mechanism. Press test button and enter Menu adjustment options. Test button 6.2 Main Menu Options: Main Menu Game Mode Input Test...
  • Page 13 Pirate’s Hook 4p Manual Name Option Description Score Board Please refer to 6.2.1.3 Game Difficulty 1 is the easiest, 4 is the hardest. Auto Play Game 5-20 seconds Time for player to play before auto play 10,20,30,40,50,60,70,80,90 Game Duration Play time setting seconds Resistance Setting Please refer to 6.2.1.4...
  • Page 14 Pirate’s Hook 4p Manual 6.2.1.2 Target Point Setting: Target Ticket Adjustment Range SM fish 0-100 point M fish 0-100 point LG fish 0-200 point Junk 0-10 point Target Ticket Adjustment Range Shark 0-500 point Octopus 0-500 point Lobster Mega Bonus 0-2000 point Note: When Fixed Ticket is 0 and target is defined as Ticket, Lobster Mega Bonus can be manual adjusted.The rest of the targets tickets are adjusted automatically base on the play...
  • Page 15 Pirate’s Hook 4p Manual 6.2.2 Input Test Input test Output test Player1 Resistance CoinMech 1 ON/OFF Player2 Resistance CoinMech 2 ON/OFF Player3 Resistance CoinMech 3 ON/OFF Player4 Resistance CoinMech 4 ON/OFF Player1 vibration ON/OFF CoinMech 5 ON/OFF Player2 vibration ON/OFF CoinMech 6 ON/OFF Player3 vibration...

  • Page 16: Error Message And Recovery

    Pirate’s Hook 4p Manual 7. ERROR MESSAGE AND RECOVERY 7.1 Error Message Symptom: Screen displays message “Communication ERROR” (there is communication problem with the game) Possible Causes & Fixes:  Communication data wire is damaged  Replace the data wire. ...

  • Page 17: Maintenance, Inspection

    Pirate’s Hook 4p Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 18: Overall Construction

    Pirate’s Hook 4p Manual 9. OVERALL CONSTRUCTION 9.1 Wooden Part Assembly...
  • Page 19 Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-001-000 29941122S001A Wooden frame Assembly P113-103-000 20241122S021 Hinge plate Metal plateδ1.5 P113-104-000 20241122S020 Light bar mounted plate Metal plateδ0.8 P113-105-000 20241122S019 Button light mounted plate Metal plateδ1.0 P113-106-000 20241122S001 Case lock assembly plate Q235 δ1.5 black P113-107-000 20241122S002 Base metal strip Q235 δ1.2 blue P113-108-000 20241122S003 Air spring mounted plate 1 Metal plateδ2.0...
  • Page 20 Pirate’s Hook 4p Manual 9.2 Marquee Assembly Part No. Draw No. Name Material 1 P113-002-000 29941122S002A Marquee frame Assembly 2 P113-120-000 20241122S018 Display board fixed plate1 Metal plateδ1.0 3 P113-121-000 20241122S013 Display board fixed plate2 Metal plateδ1.0 4 P113-122-000 20241122S014 Dot matrix fixed plate Metal plateδ1.0 5 P113-123-000 20241122S015 Dot matrix mounted plate Metal plateδ1.0...
  • Page 21 Pirate’s Hook 4p Manual 9.3 Control Panel Assembly Part No. Draw No. Name material Control panel P113-130-000 20241122S026 Q235 δ1.5 blue upper board Control panel P113-131-000 20241122S027 Q235 δ1.5 blue lower board Control panel P113-606-000 20641122S006 Transparent white plastic 1 Control panel P113-607-000 20641122S007 Transparent white...
  • Page 22 Pirate’s Hook 4p Manual 9.4 Monitor Assembly Material Part No. Draw No. Name Q235 δ1.5 blue P113-134-000 20241122S030 Monitor front plate P113-135-000 20241122S031 Monitor side fixed plate Metal plate δ1.2 P113-136-000 20241122S032 Monitor upper fixed plate Metal plateδ1.5 P113-608-000 20641122S008 Monitor pad 1 Foam δ2 black P113-609-000 20641122S009 Monitor pad 2 Foam δ2 black...
  • Page 23 Pirate’s Hook 4p Manual 9.1.5 Fishing mechanism assembly Part No. Draw No. Name Material P113-140-000 20241122S036 Fishing mech. frame Q235 δ1.5 yellow P113-143-000 20241122S039 Bearing seat Aluminum P113-144-000 20241122S040 Wheel 1 Stainless steel(201) P113-148-000 20241122S044 R cover Q235 δ2.0 blue P113-152-000 20241122S048 Clutch seat Metal plate δ2.0 P113-153-000 20241122S049 Infrared socket...
  • Page 24 Pirate’s Hook 4p Manual 9.6 Stool Assembly Part No. Draw No. Name Material P113-158-000 20241122S057 Stool base Welding black P113-157-000 20241122S056 Stool connected plate Q235 δ2 black P113-156-000 20241122S052 Stool rod 201 stainless steel P113-149-000 20241122S058 Strip light cover plate Q235 δ1 P113-150-000 20241122S059...
  • Page 25 Pirate’s Hook 4p Manual 9.2 Electrical Equipment Part: Part No. Draw No. Name Material P113-454-000 21101000023 Computer DELL 3020 4G memory P113-414-000 20741122S003 Sound card 1723， connecter PCI Express x1 1 P113-415-000 21107030033 Video card Gigabyte GV-N630D5-1GI P113-419-000 20741122S102 Dongle Dongle for pirate’...

  • Page 26: P113-446-000

    Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-447-000 21412000001 Terminal 10A/15A/250V black P113-445-000 22601000005 Small rocket SW T125/55 P113-444-000 21902000006 Fuse socket R3-11 110V/250V/10A P113-446-000 21901000013 Fuse Φ5×20mmT10A 250VAC P113-442-000 23201000001 Filter YB10A1 10A/250V P113-441-000 23301018002 Power cord 3x18AWG 0.5M UL P113-429-000 23000000006 Counter...
  • Page 27 Pirate’s Hook 4p Manual Part No. Draw No. Name Material 12V white light Coin mech indicating light P113-425-000 22201000028 socket socket P113-426-000 22003000018 LED bulb DC12V white 3LED P113-810-000 297441122S004 Side light PCB LED5050RGB-NC 21LED P113-422-000 22301000007 Coin mech TW-800 II Ticket converted P113-811-000 21712000001 TICK-CH.PCB...
  • Page 28 Pirate’s Hook 4p Manual 9.3 Decals Part No. Draw No. Name Material P113-701-000 20541122S001 Marquee decal Plastic P113-702-000 20541122S002 Control decal 1 Plastic P113-703-000 20541122S003 Control decal 2 Plastic P113-704-000 20541122S004 Both side decal 0.3PVC P113-705-000 20541122S005 Monitor decal 0.3PVC P113-706-000 20541122S006 L side decal 0.3PVC P113-707-000 20541122S007 R side decal...
  • Page 29 Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-718-000 20541122S018 Uncertified 110V nameplate 1mmPVC P113-719-000 20541122S019 Uncertified 220V nameplate 1mmPVC P113-720-000 20541122S020 Certificated 220V nameplate 1mmPVC P113-721-000 20541122S021 Certificated 110V nameplate 1mmPVC P113-724-000 25600000001 Coin counter label White PVC100u P113-725-000 25600000002 Ticket counter label White PVC100u...
  • Page 30 Pirate’s Hook 4p Manual Part No. Draw No. Name Material P113-722-000 20541122S022 Power converted label White PVC100u P113-723-000 20541122S023 Computer label White PVC100u P113-341-000 25600000091 GND wire label White PVC100u...
  • Page 31 Pirate’s Hook 4p Manual...
  • Page 32 Pirate’s Hook 4p Manual...
  • Page 33 Pirate’s Hook 4p Manual Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
