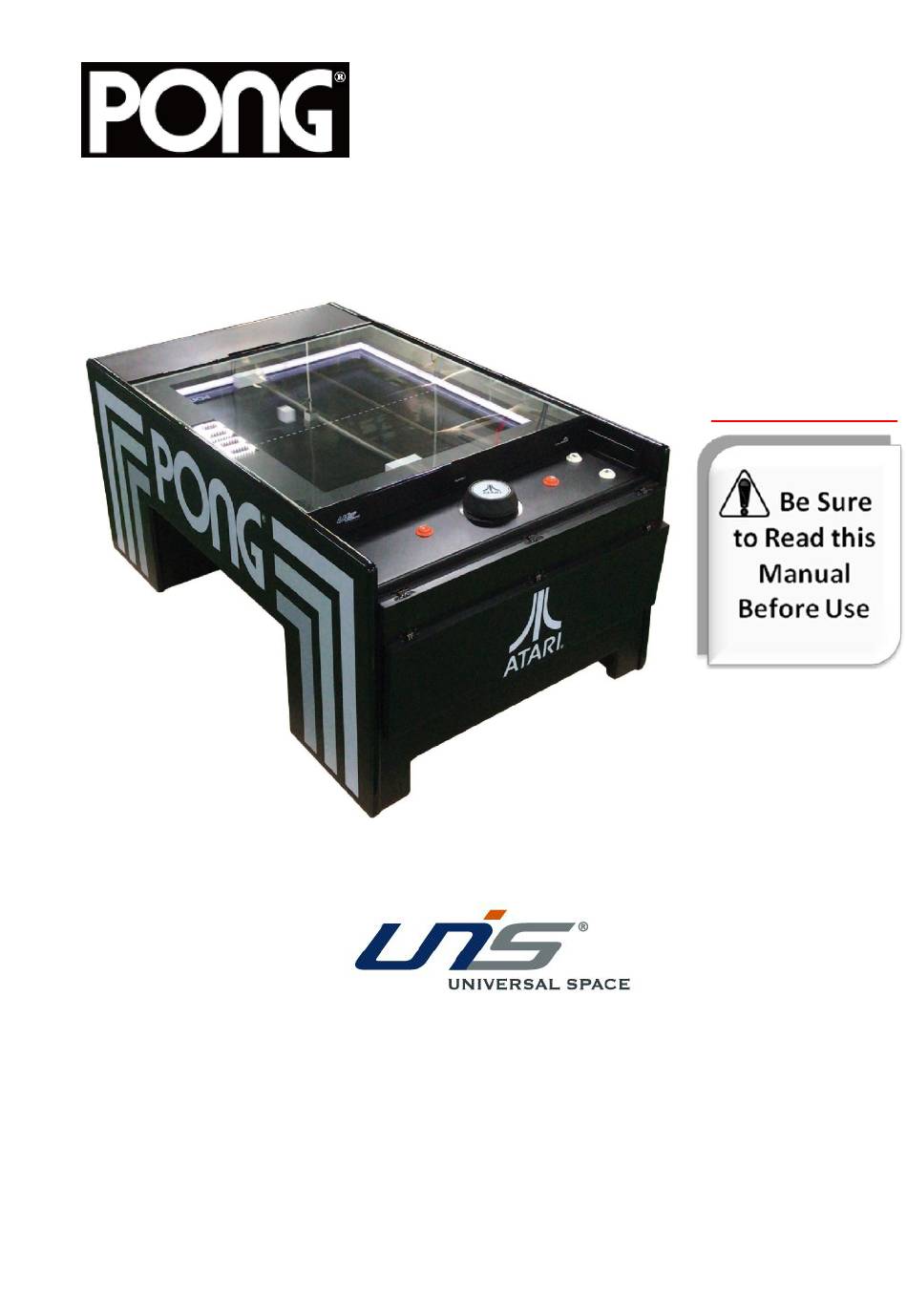

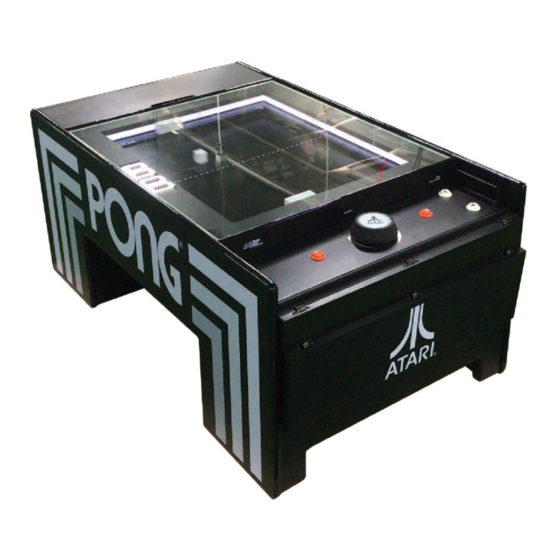

  • Page 1 1.1 version IMPORTANT www.universal-space.com Operation Manual...
  • Page 2 PONG Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor. 05/16/2019...

  • Page 3: Table Of Contents

    PONG Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................4 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................9 6. GAME OPTION ..................... 12 7.

  • Page 4: Important Safety Instructions

    PONG Manual Thank you for purchasing PONG. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 PONG Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    PONG Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 80W Max. Power consumption: 200W Dimension: W47.64×D29.07×H18.90 in W1210×D738.4×H480 mm Weight：Approximately 176.36 lb 80KG Part No: P156 Model: A-416 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    PONG Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture 1 P156-801-000 23301010020 Power cord 2 P156-432-000 21901000010 Fuse 3 P156-803-000 40607000013 L wrench...

  • Page 8: Part Name

    PONG Manual 3. PART NAME Key Components Paddle Ball Assembly Control Panel Display Control Panel Power Switch 05/16/2019...

  • Page 9: Set Up & Installation

    PONG Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 10 PONG Manual 4.2 Voltage Conversion(110V to 220V) Step 1 Power off the game and use the suction cup as shown in the picture to remove the glass. Step 2 Open end panel of player position shown in the pictures. Remove the screw covers and loosen the screws.
  • Page 11 PONG Manual Step 4 Locate the Power supply. Toggle the switches to 230V. 05/16/2019...

  • Page 12: How To Play

    PONG Manual 5. HOW TO PLAY 5.1 Press 1P Start button or 2P Start button to start the game. Move the jog to control the paddle, press the orange button to shoot. (Same function as the two orange buttons) Orange button...

  • Page 13: Game Option

    PONG Manual 6. GAME OPTION Enter into the setting menu Locate the player 1 side, press two orange buttons and 1P Start button to make the Ball be in the middle. Then you’ll see “CONF” on the display. (It doesn’t work during game over...
  • Page 14 PONG Manual 6.1 Setting Menu When SERVICE MODE is active, you will see CONF in the scoreboard by default. Spinning the JOG will switch spelling between configuration (CONF) and checks (CHEC) PREV exits SERVICE MODE and SET selects the active option.
  • Page 15 PONG Manual VALUES: CL DEFULT: CL VALUES: CL DEFULT: CL This option only applies to units fitted with a coin mechanism. Choose FREE PLAY COIN OPERATED. This menu navigated with NEXT/PREV JOG changes the parameter. SET for select. VALUE:# VALUES: # MERCY TICKET RANGE: 0..99...
  • Page 16 PONG Manual VALUE: # RANGE: 0-04 VALUES: # RANGE: 3..39 DEFAULT: 05 Game Speed: 0-----0.3175m/s VALUES: # 1-----0.4978m/s RANGE: 0..5 2-----0.6782m/s DEFAULT: 03 3-----0.8585m/s 4-----1.0389m/s 5-----1.2192m/s 6-----1.5875m/s VALUE: # RANGE: 0..99 DEFAULT: 01 05/16/2019...
  • Page 17 PONG Manual VALUES: # RANGE: 0..99 VALUES: # RANGE: 0..15 Motors tests. ( Press SET and BACK to exit.) Inputs tests. ( Press SET and BACK to exit.) LEDS, Motors and AUTO Inputs auto tests. ( Press SET and BACK to exit.)
  • Page 18 PONG Manual After powering on the machine, the display will show the Program Version(the left two characters) and the Music File Version(the right two characters). Music File Program Version Version 05/16/2019...

  • Page 19: Troubleshooting

    PONG Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly is faulty. Contact UNIS Service. Turn on power SW again. If appeared...

  • Page 20: Maintenance & Inspection

    PONG Manual Motor of Ball Motor of Ball Motor of P1 Motor of P2 X axle X axle Paddle Paddle Sensor of P1 Sensor of P2 Paddle Paddle Sensor of Ball X axle Sensor of Ball Y axle Motor of Ball Y axle 8.
  • Page 21 PONG Manual 8.3 How to Access Movement Mechanism Before processing with assembly assure you have the following tools. Name Picture Philip's screwdriver Suction cup Step 1 Power off the game and use the suction cup as shown in the picture to remove the glass.
  • Page 22 PONG Manual Step 4 Remove the corner screw covers and loosen the screws. Step 5 Remove the frame and playfield. Remove the Paddles and Ball and place them in a safe location, please avoid them sticking together. Step 6 Proceed to the movement mechanism.
  • Page 23 PONG Manual 8.4 How To Clean The Playfield Step 1 Power off the game and use the suction cup as shown in the picture to remove the glass. Step 2 Power off the game. Utilize non-woven fabric with distilled water to clean the playfield.
  • Page 24 PONG Manual 8.7 Belt Tension Adjustment Instruction for Y Axle If noise is heard from the tracks inside the machine, one of the reasons is that the belt has loosened. Here is the process to tighten the belt. Before processing with assembly ensure you have the following tool.
  • Page 25 PONG Manual 8.8 Belt Tension Adjustment Instruction for X Axles Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Wrench(8mm) Kit list: Name Picture Block Step 1 Follow the 8.6 steps to remove the playfield. Move Y axle to motor side.
  • Page 26 PONG Manual Step 3 Check if the block is slightly above the X axle (within 0.04inch). If it is, don’t adjust the belt; if it touches the X axle, adjust the belt. √ × Need to adjust. Step 4 To adjust: Utilize Phillips screwdriver to loosen the screws a bit. Utilize the wrench to adjust the nut on the side.

  • Page 27: Overall Construction

    PONG Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code Name 1 P156-105-000 20611707001 Waterproof plate 2 P156-106-000 20211707016A Bracket 3 P156-107-000 20611707011 Glass 4 P156-102-000 20211707009 Bottom support A 5 P156-103-000 20211707010A Bottom support B 6 P156-115-000 20211707039A...
  • Page 28 PONG Manual 9.2 Wood Part Part No. Code Name 1 P156-505-000 20311707010D Speaker plate A 2 P156-507-000 20311707012B Side bottom plate 3 P156-504-000 20311707009B Front plate 4 P156-510-000 20311707002B Control panel side cover 5 P156-511-000 20311707003C Control panel top cover...
  • Page 29 PONG Manual 9.3 Movement Mechanism Part No. Code Name 1 P156-124-000 20211707032A Idle wheel A P156-125-000 20211707047B Idle wheel axle P156-304-000 20102000022 Non-metallic hexagon lock nut 4 P156-301-000 20113000055 C flat washer P156-126-000 20211707054 Wheel sleeve 3 P156-123-000 20211707017B Idle wheel A bracket...
  • Page 30 PONG Manual Part No. Code Name 14 P156-152-000 20211707026 Wiring plate C 15 P156-502-000 20311707M002 Electric part support plate 16 P156-501-000 20311707M001 Support plate 17 P156-154-000 20211707041 Small pressing plate 18 P156-448-000 26504010002 Belt 7500mm(295.27in) 19 P156-157-000 20211707052A Sensor SW bracket...
  • Page 31 PONG Manual Part No. Code Name 11 P156-130-000 20611707026A Support bracket axle 2 12 P156-153-000 20211707027A Chain mounting plate 1 13 P156-138-000 20211707002B Y axle bracket 14 P156-133-000 20211707033A Driving wheel 15 P156-136-000 20211707034A Idle wheel B 16 P156-137-000 20211707007B...
  • Page 32 PONG Manual 9.5 Control Panel Assembly Please see 9.7 Decals Part No. Code Name 1 P156-171-000 20611707008 Jog shell 2 P156-170-000 20611707009 3 P156-174-000 20211707008B Rotation axle 4 P156-169-000 20211707037 Decoration panel 5 P156-456-000 20106000318 6 P156-172-000 20211707013A BR bracket...
  • Page 33 PONG Manual 9.6 Water Proof Assembly Part No. Code Name 1 P156-180-000 20611707007A Inside pad B 2 P156-179-000 20611707006A Inside pad A 3 P156-178-000 20211707014 Water proof plate 1 9.7 Ball Assembly Bottom Part No. Code Name 1 P156-110-000 20611707012A...
  • Page 34 PONG Manual 9.9 Decals Part No. Code Name 1 P156-704-000 20511707001C Playfield decal 2 P156-708-000 20511707005B Side decal 3 P156-726-000 25600000072 220V label 4 P156-727-000 25600000073 Fuse label 5 P156-713-000 20511707012C LOGO label 6 P156-707-000 20511707004B Control panel decal 2...
  • Page 35 PONG Manual Part No. Code Name 1 P156-714-000 20511707013A 220V nameplate 2 P156-715-000 20511707014A TUV 110V nameplate 3 P156-716-000 20511707015A TUV 220V nameplate 4 P156-709-000 20511707008A 110V nameplate 5 P156-717-000 20511707016 CE 110V nameplate 6 P156-702-000 20511707A007 Wiring label 7 P156-718-000 20511707017 Short circuit board label 1...
  • Page 36 PONG Manual Part No. Code Name 8 P156-711-000 20511707010A Motor label 9 P156-721-000 20511707020 X axle & Y axle label 10 P156-703-000 20511707A009 GND label 11 P156-710-000 20511707009B No lubrication label 12 P156-712-000 20511707011B Service label 13 P156-724-000 25600000042 Service label 1...
  • Page 37 PONG Manual 9.10 Electrical Components Part No. Code Name 1 P156-404-000 23407030001 Coder P156-407-000 22401170004 Orange button 4 P156-402-000 22604000006 Micro SW P156-405-000 22401170002 White button 1P 2 P156-406-000 22401170003 White button 2P 2 P156-402-000 22604000006 Micro SW 4 P156-412-000 22002020001...

  • Page 38: P156-432-000

    PONG Manual Part No. Code Name 1 P156-444-000 23407010006 Motor driver P156-430-000 22803010008 Amplifier board 1 P156-403-000 23305000008 Audio cable 3 P156-431-000 22807000003 Audio isolator 1 P156-433-000 29711707009B Main board P156-432-000 21901000010 Fuse 5 P156-443-000 23407010007 Motor driver 6 P156-413-000 26503020027...
  • Page 39 PONG Manual Part No. Code Name 1 P156-416-000 21503000055 Sensor SW 2 P156-427-000 21714000148 Short circuit board P156-408-000 21602000105 Power supply P156-432-000 21901000010 Fuse 4 P156-426-000 21714000148A Fuse board P156-424-000 21602000106 Power supply(LITEON) 1 P156-429-000 21603030004 Charger 6 P156-414-000 22801000085...

  • Page 40: Wiring Diagram

    PONG Manual 10. WIRING DIAGRAM 05/16/2019...
  • Page 41 PONG Manual MAINTENANCE LIST The items listed below should be reviewed as required. Ball OK/NG Sign Check quarterly. If the bottom of the Ball has dirt, utilize the non-woven fabric with distilled water to clean. If the bottom of the Ball is damaged, replace the Teflon tape on the ball.
