An overview of the Freedom SW 230V menu structure is shown below. The SCP displays the Freedom SW 230V basic settings menu.
FSW3524E 00: Setup
Mode Invert
Battery 23.6V -44.0A N/A
Load 410W 230V
AC In 0V 0A 0Hz
Inverter [Enabled]
Search Mode [Disabled]
Charger [Disabled]
Force Chg State
Equalize [Disabled]
Desired Mode [Standby]
Clear Faults Warnings
View Device Info
Basic Settings

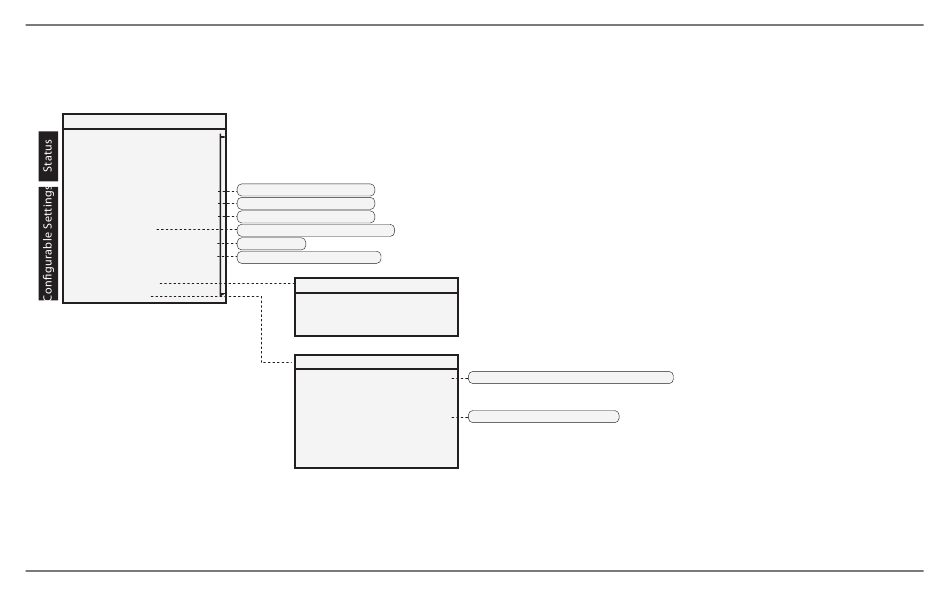

Figure 24 Menu Map of the Freedom SW 230V Basic Settings
975-0696-01-01
4A
[*Enabled] [Disabled]
[*Disabled] [Enabled]
[*Disabled] [Enabled]
[*No Float] [Float] [Bulk]
[Disabled]
[*Standby] [Operating]
FSW3524E 00: Dev Info
View Fault Log
View Warning Log
View Event Log
FSW3524E 00: Basic Settings
Batt Type
Batt Capacity
Max Chg Rate
Charge Cycle
ReCharge Volts
ACIn Breaker
Low Batt Cut Out
[Flooded] [*Flooded] [Gel] [AGM] [Custom]
[440Ah]
[100%]
[3-Stage] [*3-Stage] [2StgNoFloat]
[25.0V]
[30A]
[22.0V]
Configuring the Freedom SW using the SCP
Follow procedures on "To select and change a
configurable setting:" on page 38 to change the settings.
43
