1. Determine the total length (T) of cable needed (see the figure below).
a. Measure A
b.
Measure B
c. Subtract B from A then subtract 8.14 inches.
2. Determine the strip point (D) along the cable.
Take the total length and subtract 2.14 inches.
NOTE: Dimension D is the strip point.
A
Floor

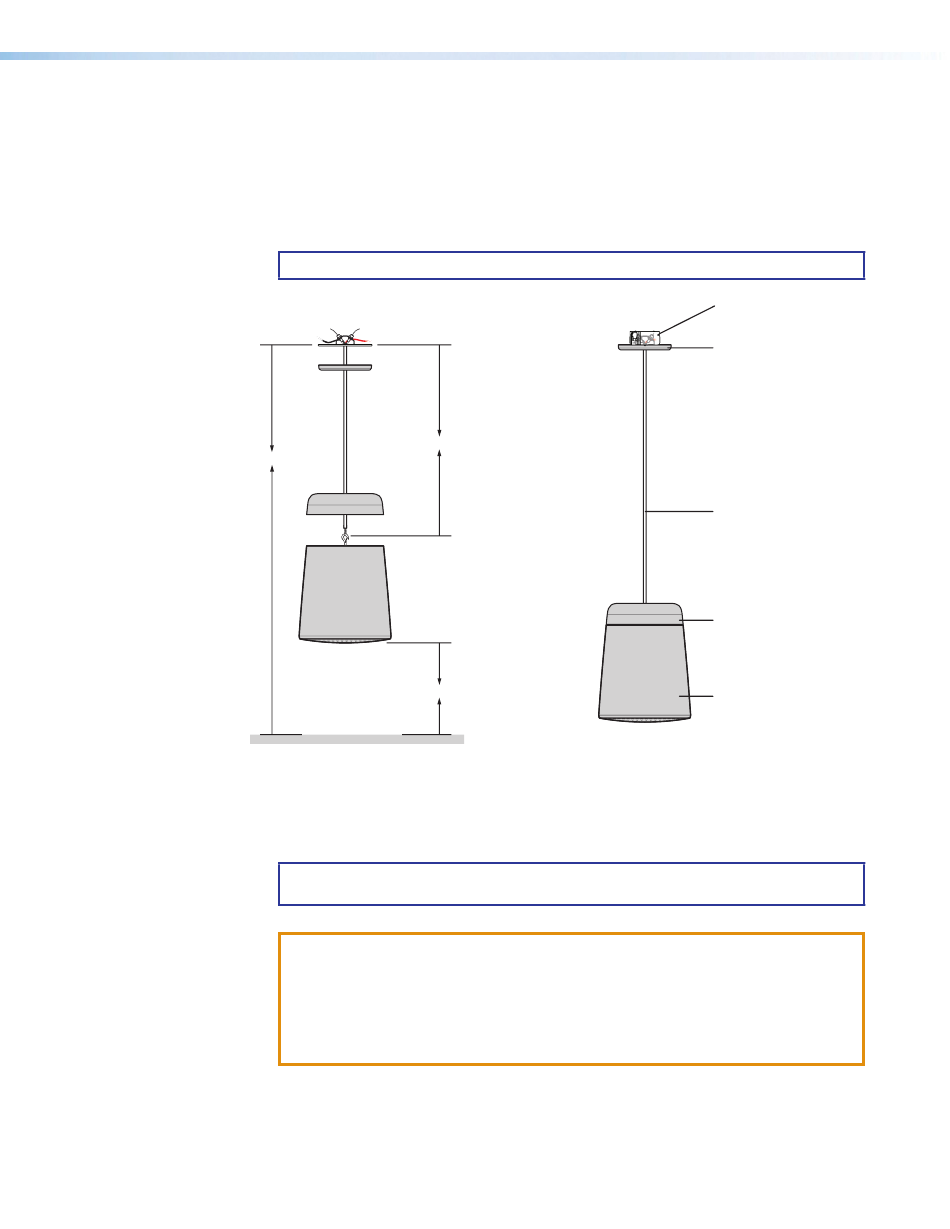

Figure 13. Dimensions and Order of Assembly
Cut the cables using value T for the cut length.
NOTE: The total cable length includes 1 inch of cable that must extend beyond the
bottom of the cable lock, as shown above.
ATTENTION: Do not use regular wire cutters to cut through the steel cable.
Ordinary wire cutters may be damaged when attempting to cut through the steel
cable. You must use a suitable cable cutter to cut the steel cable.
ATTENTION : N'utilisez pas de cisaille standard pour couper le câble en acier. Ce
type de cisaille peut être endommagé lors de la coupe du câble en acier. Vous
devez utiliser une pince coupe-câble adaptée à ce type de câble.
3. Strip off the cable at the strip point using value D in the previous step. See the
illustration (above left) showing the dimensions of the SF 26PT.
D
B
SF 26PT User Guide • Reference Information
"Octagon" Type
Ceiling Electrical Box
Ceiling Bracket
Cover Plate
PendantConnect-2
Cable
Speaker
Cap
Speaker
