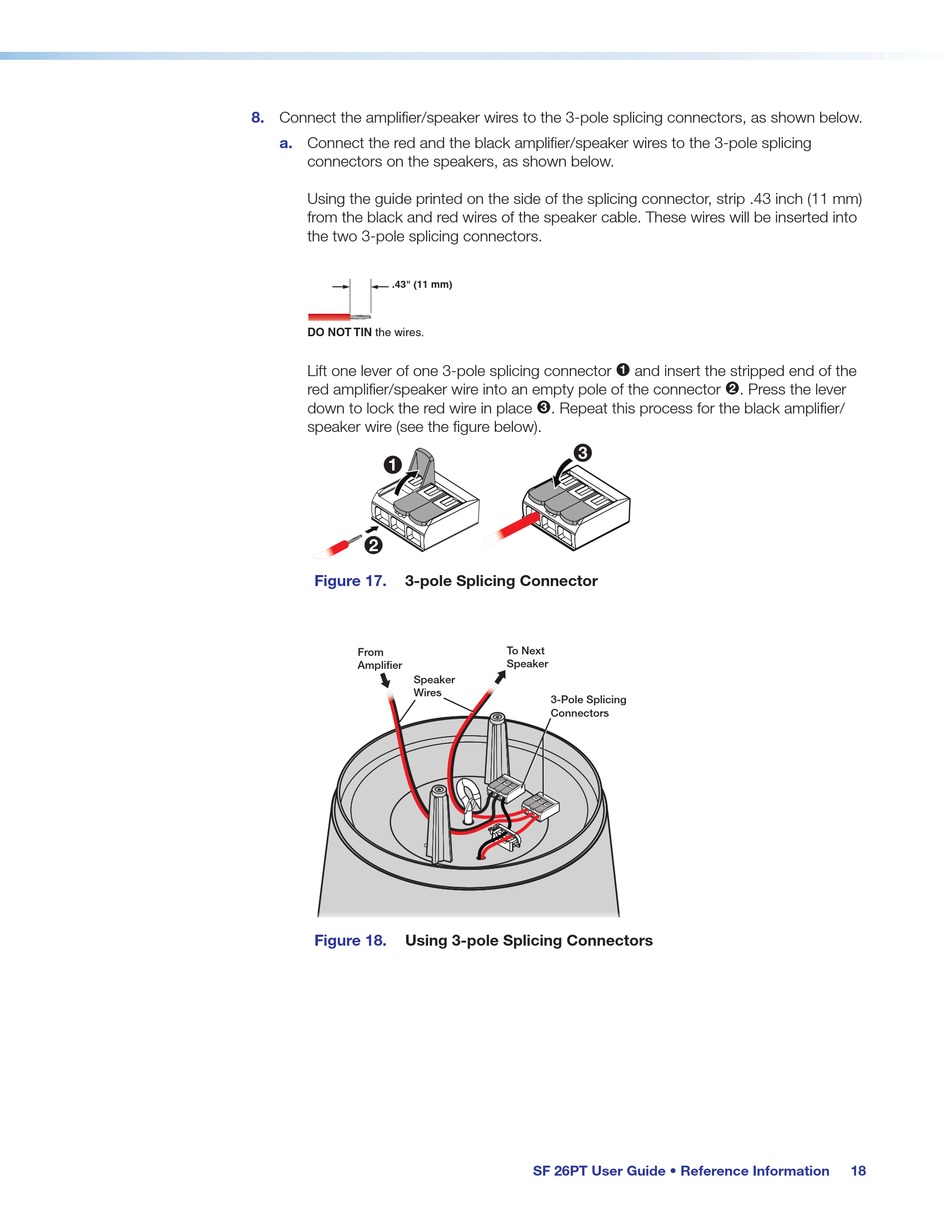

8. Connect the amplifier/speaker wires to the 3-pole splicing connectors, as shown below.
a. Connect the red and the black amplifier/speaker wires to the 3-pole splicing
connectors on the speakers, as shown below.
Using the guide printed on the side of the splicing connector, strip .43 inch (11 mm)
from the black and red wires of the speaker cable. These wires will be inserted into
the two 3-pole splicing connectors.
.43" (11 mm)
DO NOT TIN the wires.
Lift one lever of one 3-pole splicing connector 1 and insert the stripped end of the
red amplifier/speaker wire into an empty pole of the connector 2. Press the lever
down to lock the red wire in place 3. Repeat this process for the black amplifier/
speaker wire (see the figure below).
1 1
2 2
Figure 17. 3-pole Splicing Connector
From
Amplifier
Speaker
Wires
Figure 18. Using 3-pole Splicing Connectors
3 3
To Next
Speaker
3-Pole Splicing
Connectors
