b.
Wire the 3-pole splicing connectors for a Loop-through configuration.
NOTE: Each pole of the splicing connector is capable of accepting up to
12 AWG wire.

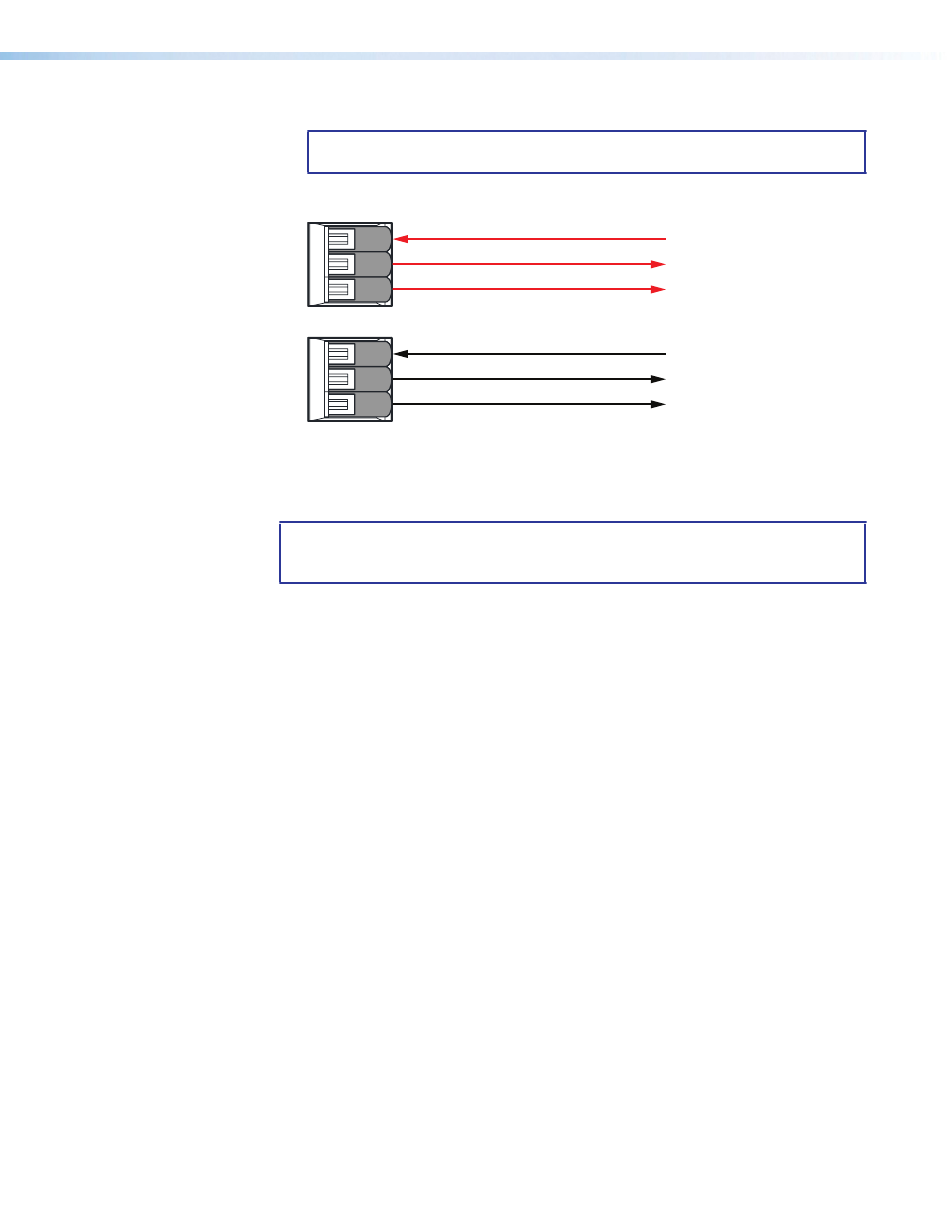

Loop-through:
Red Wire (+) from Previous Speaker/Amplifier
Red Wire (+) to Next Speaker
Red Wire (+) to Speaker
Black Wire (-) from Previous Speaker/Amplifier
Black Wire (-) to Next Speaker
Black Wire (-) to Speaker
Figure 19.
Loop-through Configuration
9.
When daisy chaining speakers, run a speaker wire from each 3-pole splicing connector
through the speaker cap and to the next speaker, as shown in figure 19.
NOTE: Amplifier wires going to the 3-pole splicing connector, and speaker wires
being daisy chained to the next speaker may be neatly routed along a steel cable
using zip ties.
SF 26PT User Guide • Reference Information
19
