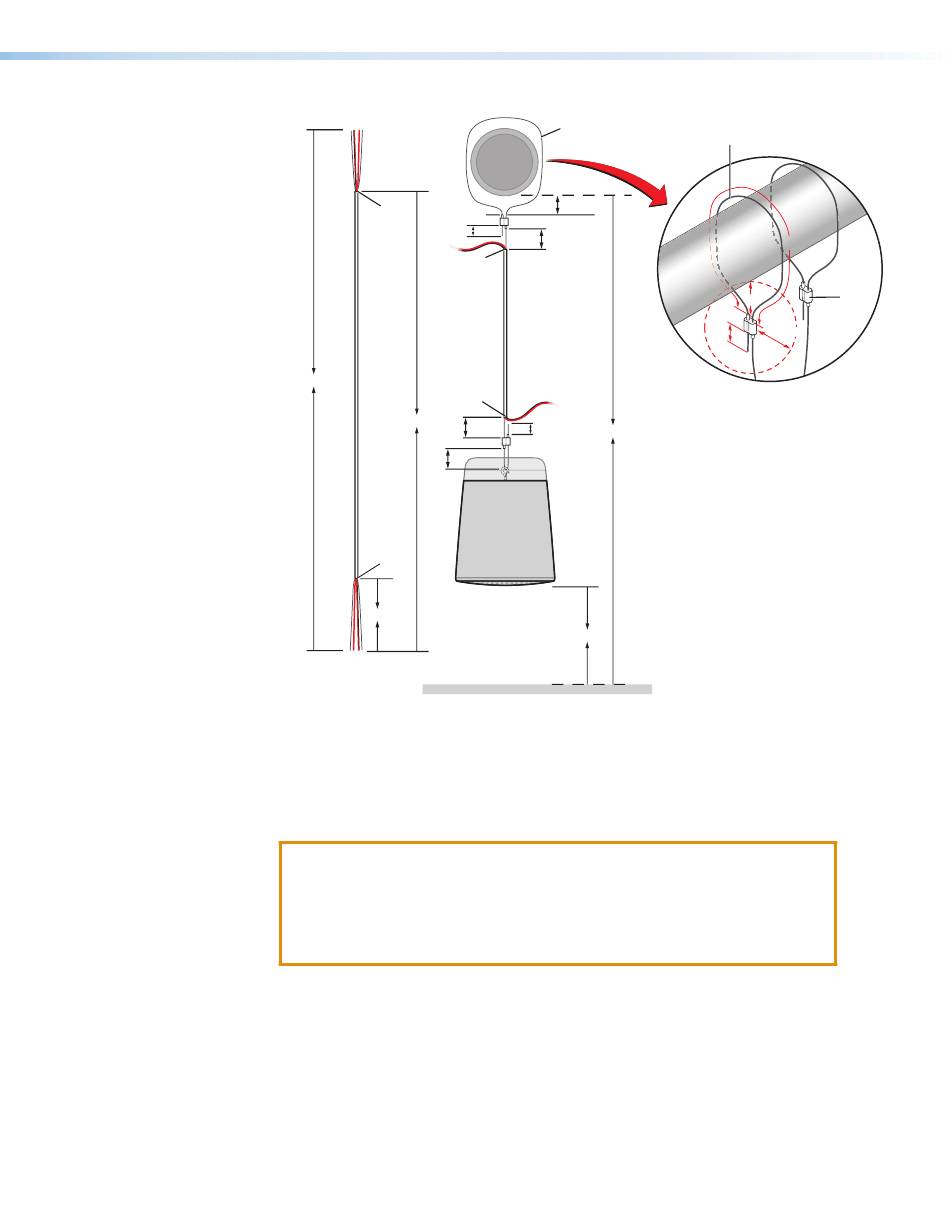

Figure 21. Bulk PendantConnect-2 Cable Cut Length
2. Determine and mark the strip points,(see figure 21, E and F), as shown in the above
illustration.
3. Cut the cables using value T as the cut length.
ATTENTION: Do not use regular wire cutters to cut through the steel cable.
Ordinary wire cutters may be damaged when attempting to cut through the
steel cable. You must use a suitable cable cutter to cut the steel cable.
ATTENTION : N'utilisez pas de cisaille standard pour couper le câble en acier.
Ce type de cisaille peut être endommagé lors de la coupe du câble en acier.
Vous devez utiliser une pince coupe-câble adaptée à ce type de câble.
4. Strip off the cable jacket from the cable at the strip points, E and F.
5. Position the cable locks so that the ends of the cable locks are at least 2 inches from
the strip point.
6. On the speaker end of the cable, form two loops with the two steel cables using the
cable locks. Make sure that at least 1 inch of steel cable protrudes from the cable lock
and that the end of the cable lock is at least 2 inches from the the top of the speaker
hook, then position the two loops through the hook.
7. Proceed to the "Wiring the SF 26PT Speaker
C
Pipe
≥2"
≥1"
≥2"
E
F
≥2"
≥1"
A
B
Floor
Assembly" section on page 6 and
SF 26PT User Guide • Reference Information
Steel Cable
C
≥2"
≥1"
2" min.
Strip Point E = A - B - 11.032
Strip Point F = 9.565"
Total Length T = A - B - G + C
G = 5.282"
T= Total length of PendantConnect-2 cable
