Optional 2-aircraft cable Installation Kit

To set the tap selection, see

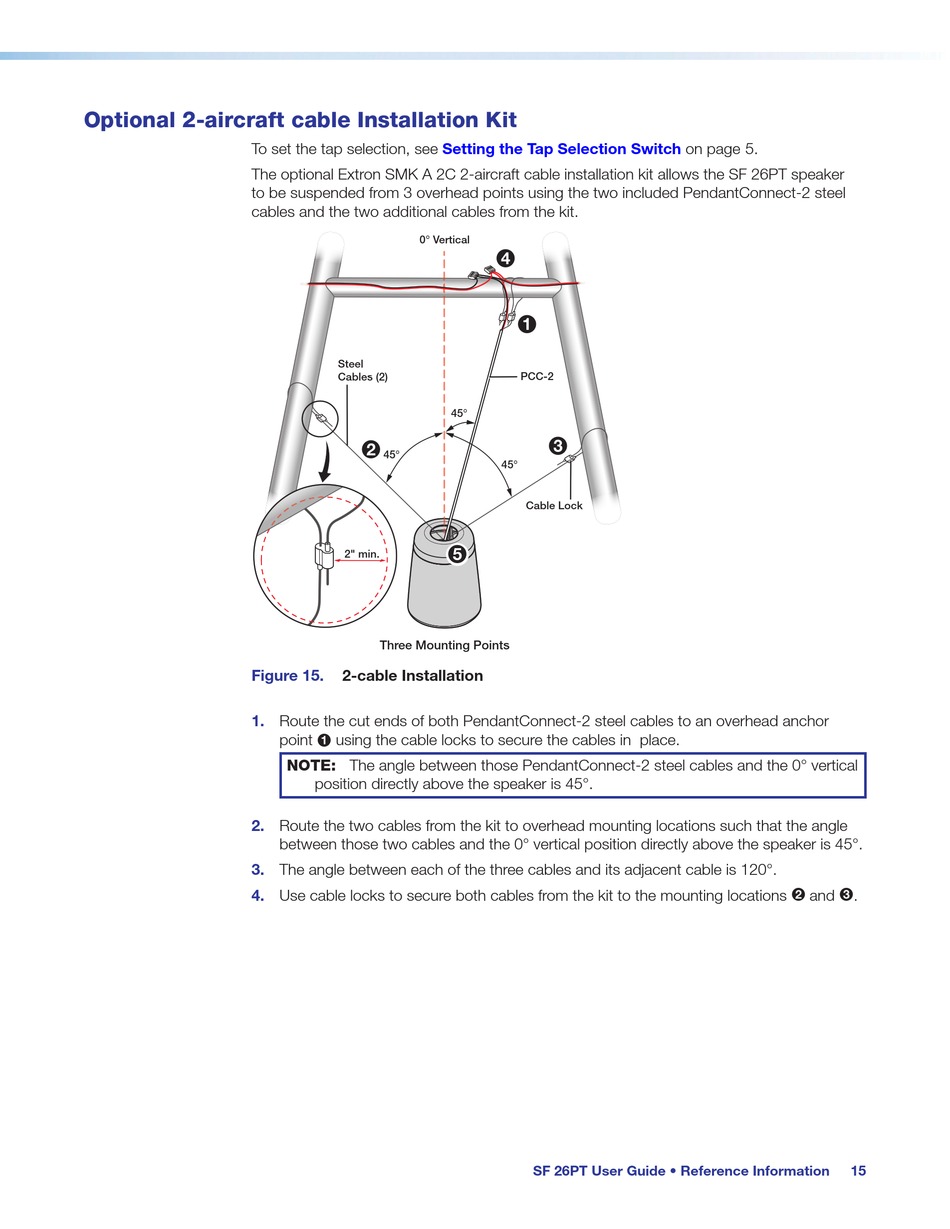

The optional Extron SMK A 2C 2-aircraft cable installation kit allows the SF 26PT speaker
to be suspended from 3 overhead points using the two included PendantConnect-2 steel
cables and the two additional cables from the kit.
Figure 15.
1.
2.
3.
4.
Setting the Tap Selection Switch
0° Vertical
Steel
Cables (2)
45°
2 2
45°
5 5
2" min.
Three Mounting Points
2-cable Installation
Route the cut ends of both PendantConnect-2 steel cables to an overhead anchor
point 1 using the cable locks to secure the cables in place.
NOTE: The angle between those PendantConnect-2 steel cables and the 0° vertical
position directly above the speaker is 45°.
Route the two cables from the kit to overhead mounting locations such that the angle
between those two cables and the 0° vertical position directly above the speaker is 45°.
The angle between each of the three cables and its adjacent cable is 120°.
Use cable locks to secure both cables from the kit to the mounting locations 2 and 3.
4 4
1 1
PCC-2
3 3
45°
Cable Lock
SF 26PT User Guide • Reference Information
on page 5.
