USER MANUAL
RC-1216H

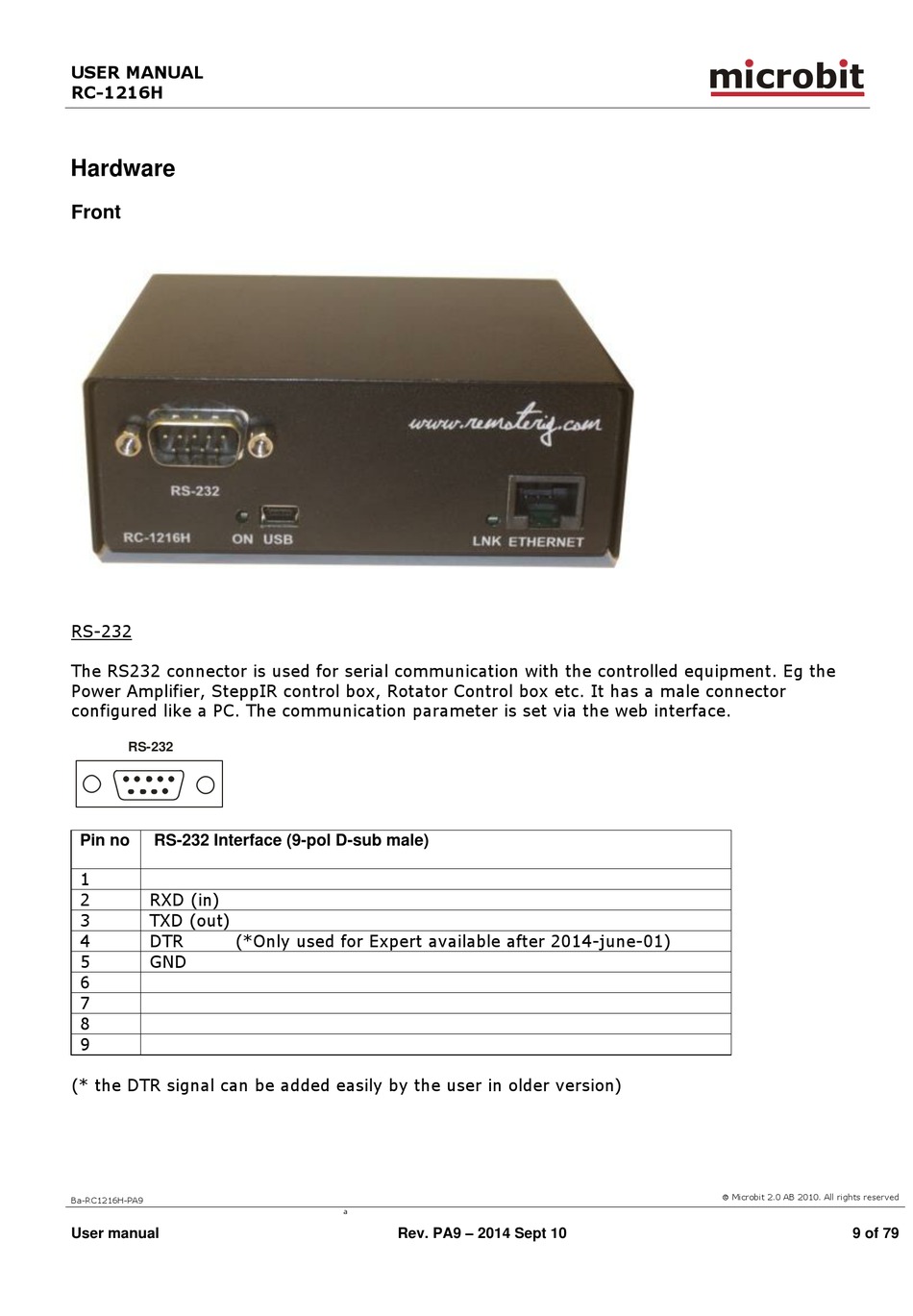

Hardware
Front
RS-232
The RS232 connector is used for serial communication with the controlled equipment. Eg the
Power Amplifier, SteppIR control box, Rotator Control box etc. It has a male connector
configured like a PC. The communication parameter is set via the web interface.
RS-232
Pin no
RS-232 Interface (9-pol D-sub male)
1
2
RXD (in)
3
TXD (out)
4
DTR
(*Only used for Expert available after 2014-june-01)
5
GND
6
7
8
9
(* the DTR signal can be added easily by the user in older version)
Ba-RC1216H-PA9
User manual
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
9 of 79
