USER MANUAL
RC-1216H

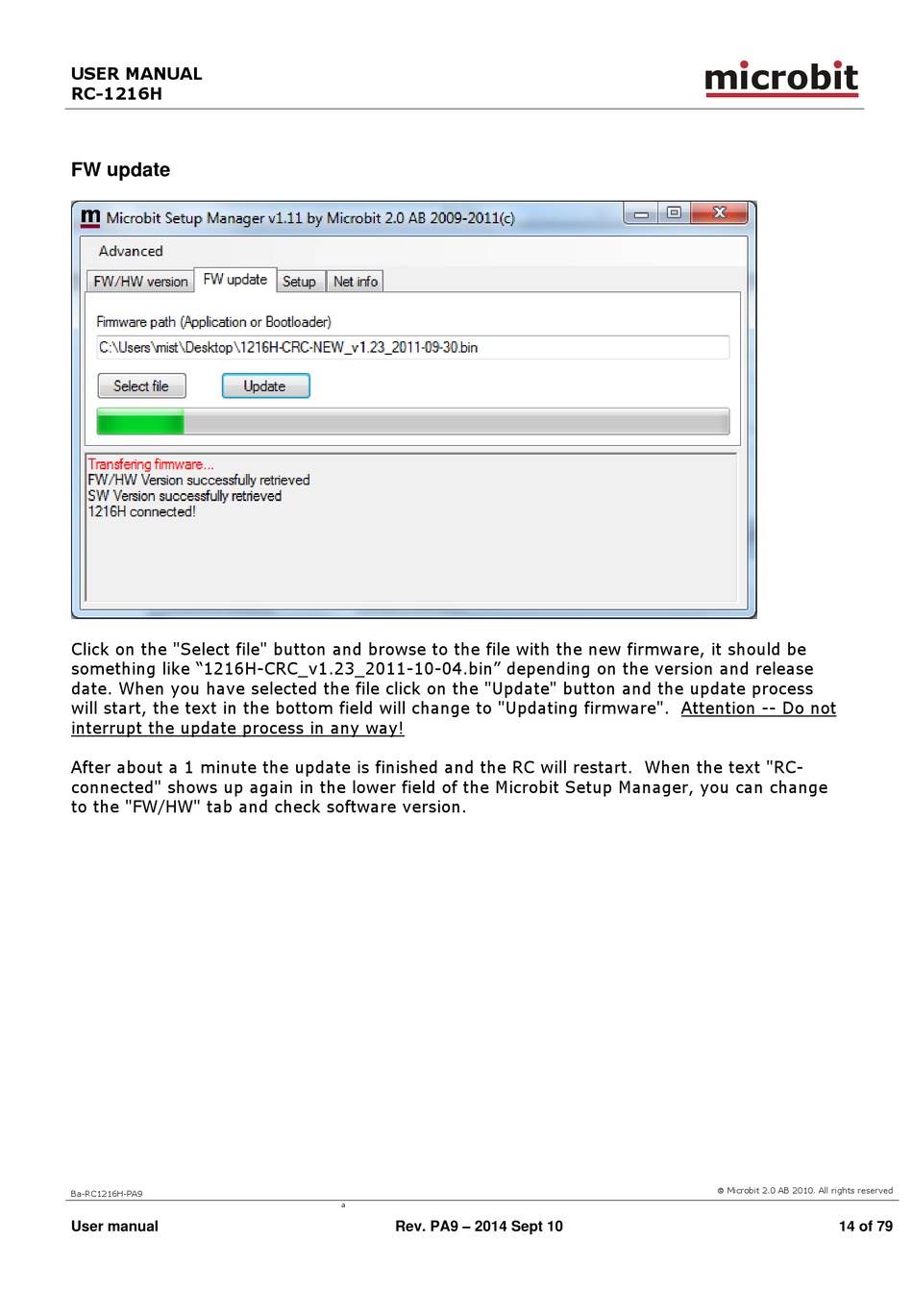

FW update
Click on the "Select file" button and browse to the file with the new firmware, it should be
something like "1216H-CRC_v1.23_2011-10-04.bin" depending on the version and release
date. When you have selected the file click on the "Update" button and the update process
will start, the text in the bottom field will change to "Updating firmware". Attention -- Do not
interrupt the update process in any way!
After about a 1 minute the update is finished and the RC will restart. When the text "RC-
connected" shows up again in the lower field of the Microbit Setup Manager, you can change
to the "FW/HW" tab and check software version.
Microbit 2.0 AB 2010. All rights reserved
Ba-RC1216H-PA9
a
Rev. PA9 – 2014 Sept 10
User manual
14 of 79
