Edxpert 1K-FA – 230VAC Power switching

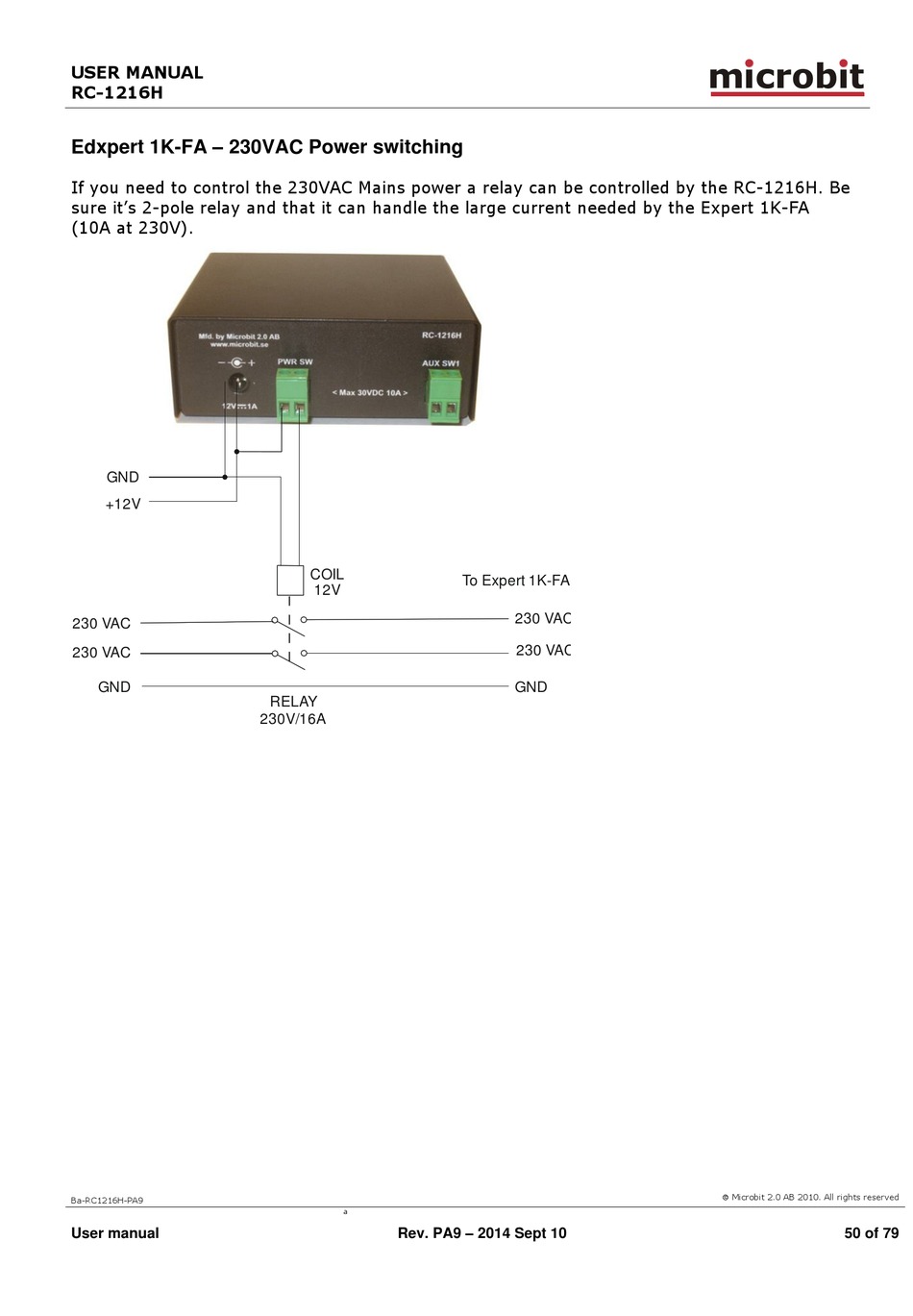

If you need to control the 230VAC Mains power a relay can be controlled by the RC-1216H. Be
sure it's 2-pole relay and that it can handle the large current needed by the Expert 1K-FA
(10A at 230V).
GND
+12V
230 VAC
230 VAC
GND
Ba-RC1216H-PA9
User manual
COIL
12V
RELAY
230V/16A
a
Rev. PA9 – 2014 Sept 10
To Expert 1K-FA
230 VAC
230 VAC
GND
