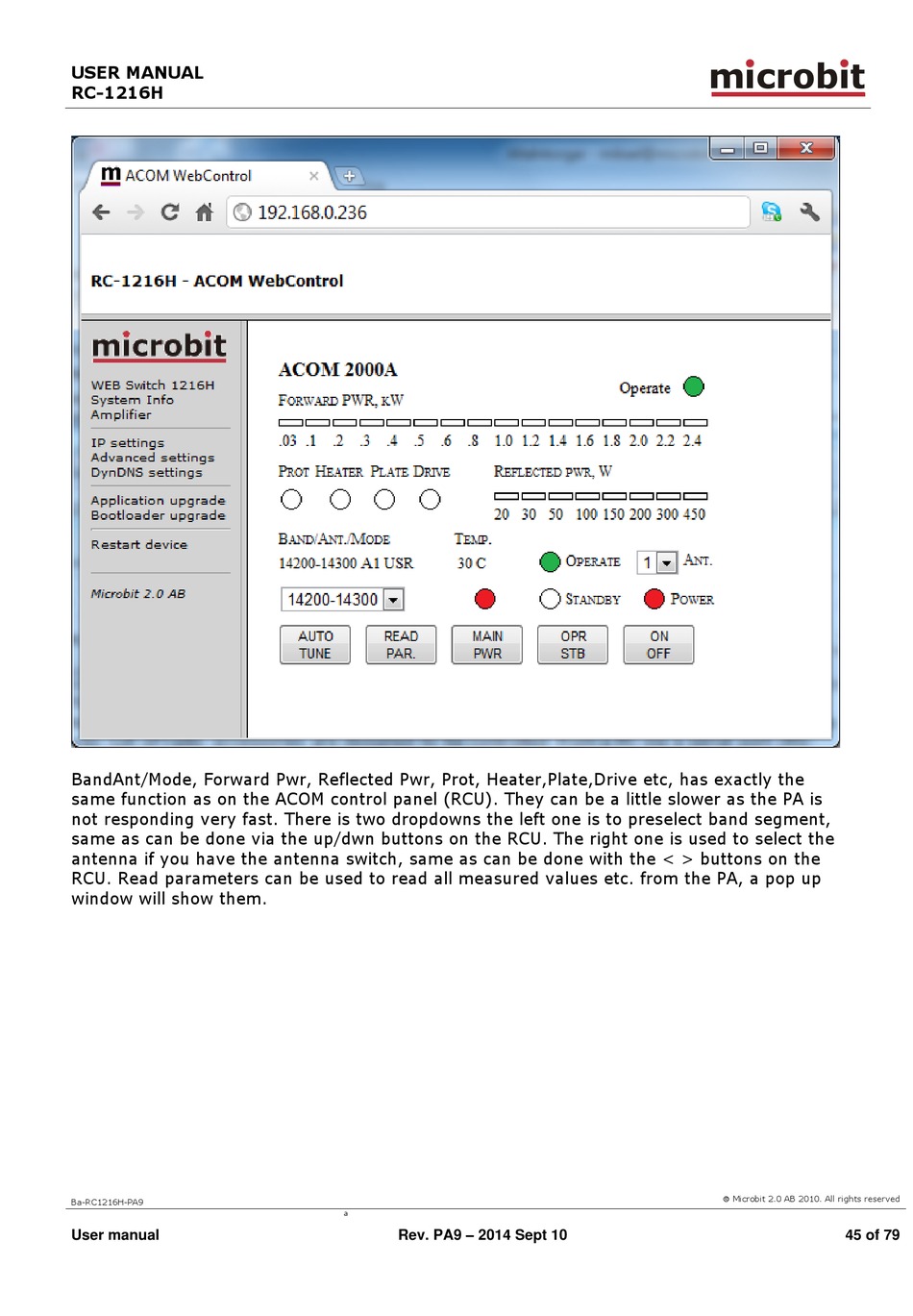

BandAnt/Mode, Forward Pwr, Reflected Pwr, Prot, Heater,Plate,Drive etc, has exactly the
same function as on the ACOM control panel (RCU). They can be a little slower as the PA is
not responding very fast. There is two dropdowns the left one is to preselect band segment,
same as can be done via the up/dwn buttons on the RCU. The right one is used to select the
antenna if you have the antenna switch, same as can be done with the < > buttons on the
RCU. Read parameters can be used to read all measured values etc. from the PA, a pop up
window will show them.
