USER MANUAL
RC-1216H
Before you can start using the RC-1216H. You have also to prepare the cabling and do the
Initial setup, see Step by step RC-1216H setup.

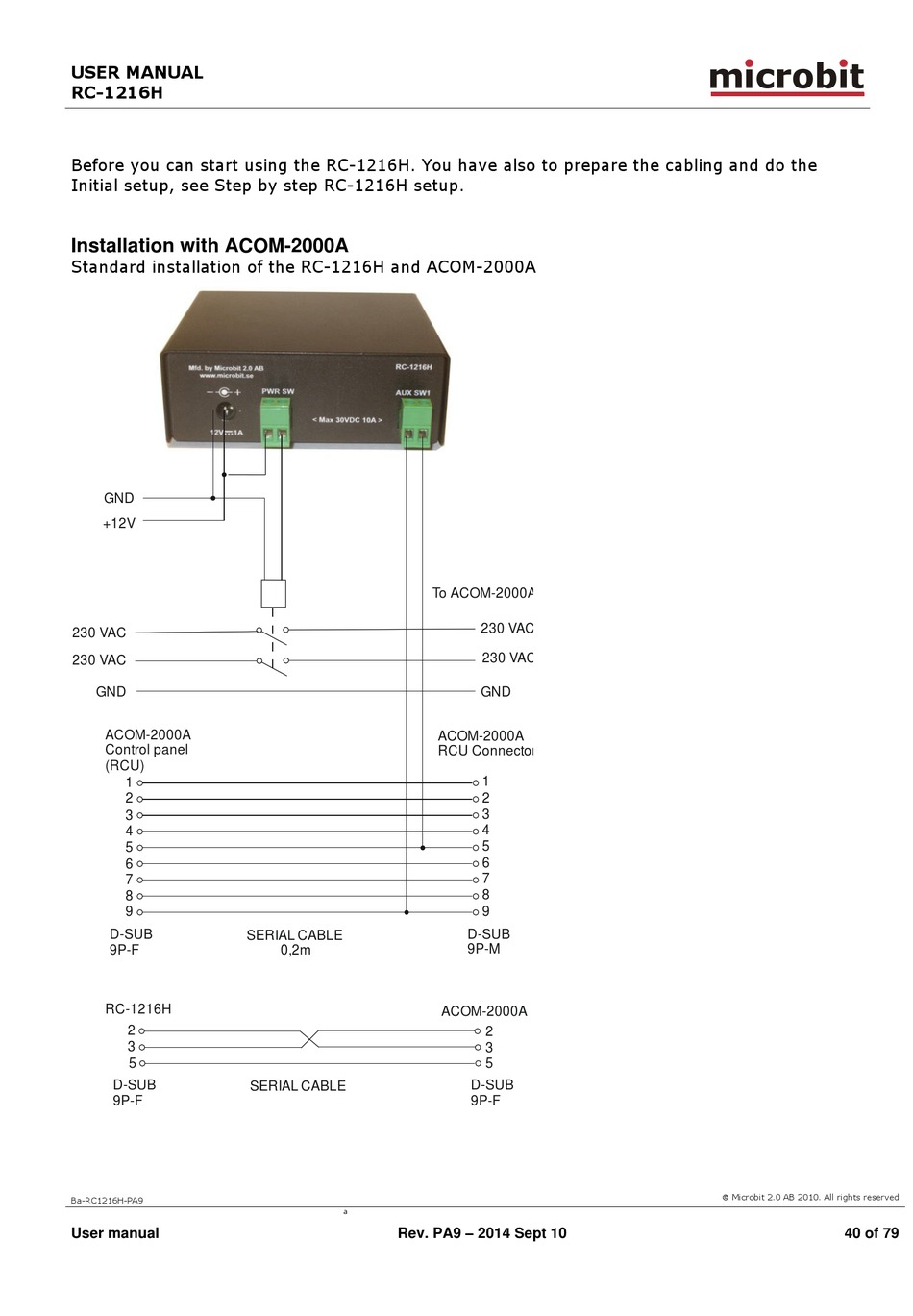

Installation with ACOM-2000A

Standard installation of the RC-1216H and ACOM-2000A
GND
+12V
230 VAC
230 VAC
GND
ACOM-2000A
Control panel
(RCU)
1
2
3
4
5
6
7
8
9
D-SUB
9P-F
RC-1216H
2
3
5
D-SUB
9P-F
Ba-RC1216H-PA9
User manual
SERIAL CABLE
0,2m
SERIAL CABLE
a
Rev. PA9 – 2014 Sept 10
To ACOM-2000A
230 VAC
230 VAC
GND
ACOM-2000A
RCU Connector
1
2
3
4
5
6
7
8
9
D-SUB
9P-M
ACOM-2000A
2
3
5
D-SUB
9P-F
.
m crob t
 Microbit 2.0 AB 2010. All rights reserved
40 of 79
