USER MANUAL
RC-1216H

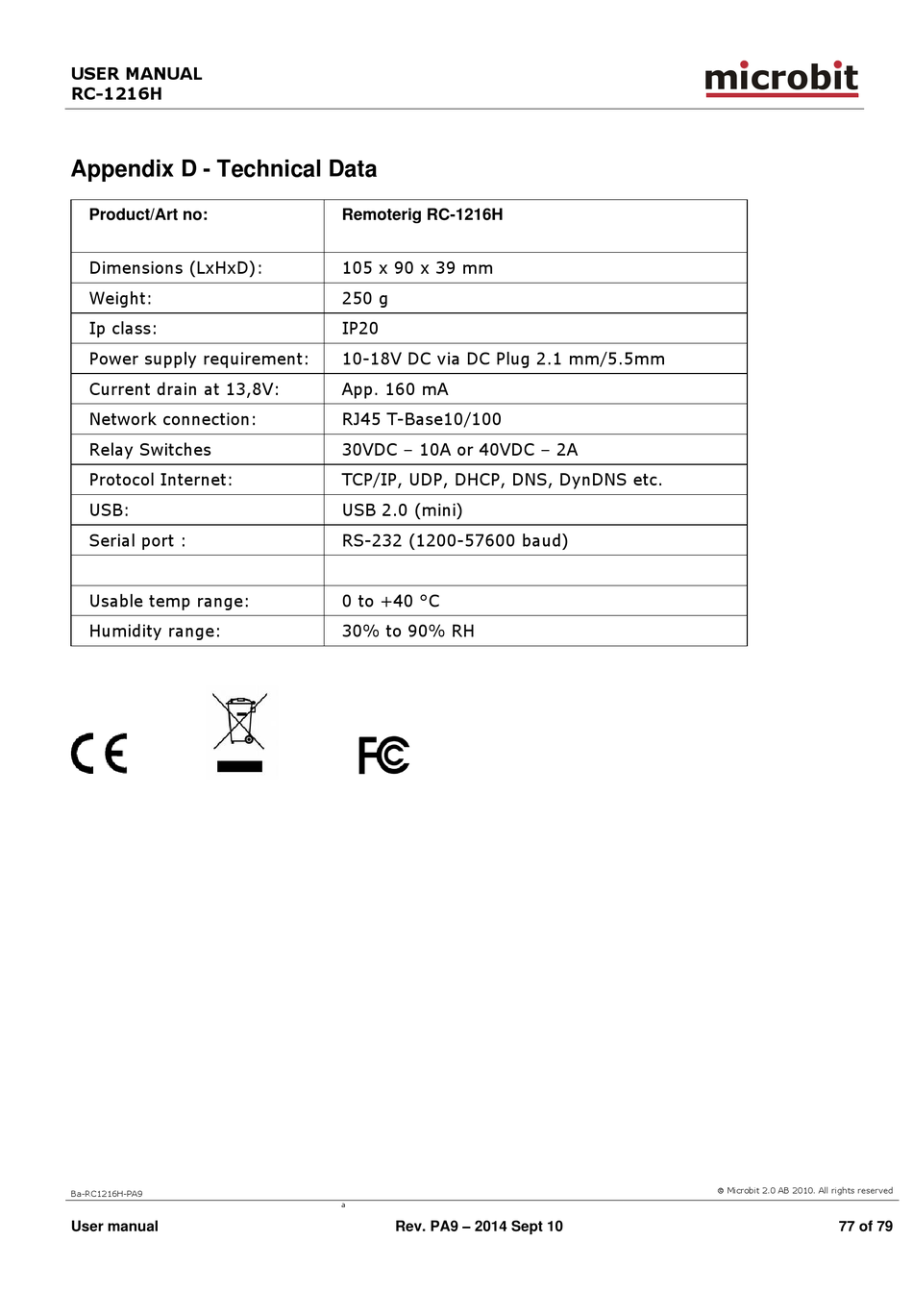

Appendix D - Technical Data
Product/Art no:
Dimensions (LxHxD):
Weight:
Ip class:
Power supply requirement:
Current drain at 13,8V:
Network connection:
Relay Switches
Protocol Internet:
USB:
Serial port :
Usable temp range:
Humidity range:
Ba-RC1216H-PA9
User manual
Remoterig RC-1216H
105 x 90 x 39 mm
250 g
IP20
10-18V DC via DC Plug 2.1 mm/5.5mm
App. 160 mA
RJ45 T-Base10/100
30VDC – 10A or 40VDC – 2A
TCP/IP, UDP, DHCP, DNS, DynDNS etc.
USB 2.0 (mini)
RS-232 (1200-57600 baud)
0 to +40 °C
30% to 90% RH
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
77 of 79
