USER MANUAL
RC-1216H

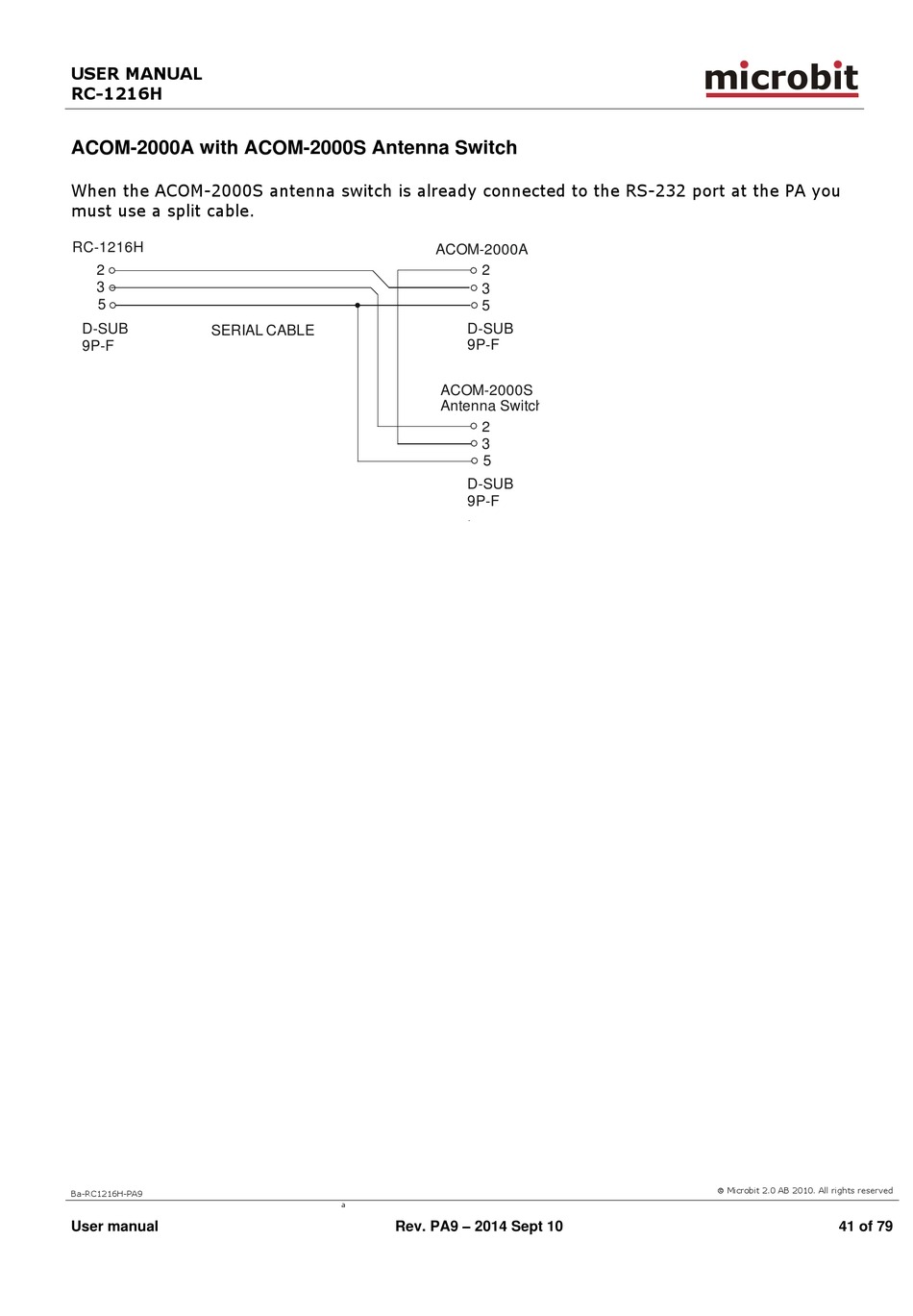

ACOM-2000A with ACOM-2000S Antenna Switch
When the ACOM-2000S antenna switch is already connected to the RS-232 port at the PA you
must use a split cable.
RC-1216H
2
3
5
D-SUB
SERIAL CABLE
9P-F
Ba-RC1216H-PA9
User manual
ACOM-2000A
2
3
5
D-SUB
9P-F
ACOM-2000S
Antenna Switch
2
3
5
D-SUB
9P-F
.
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
41 of 79
