USER MANUAL
RC-1216H
-

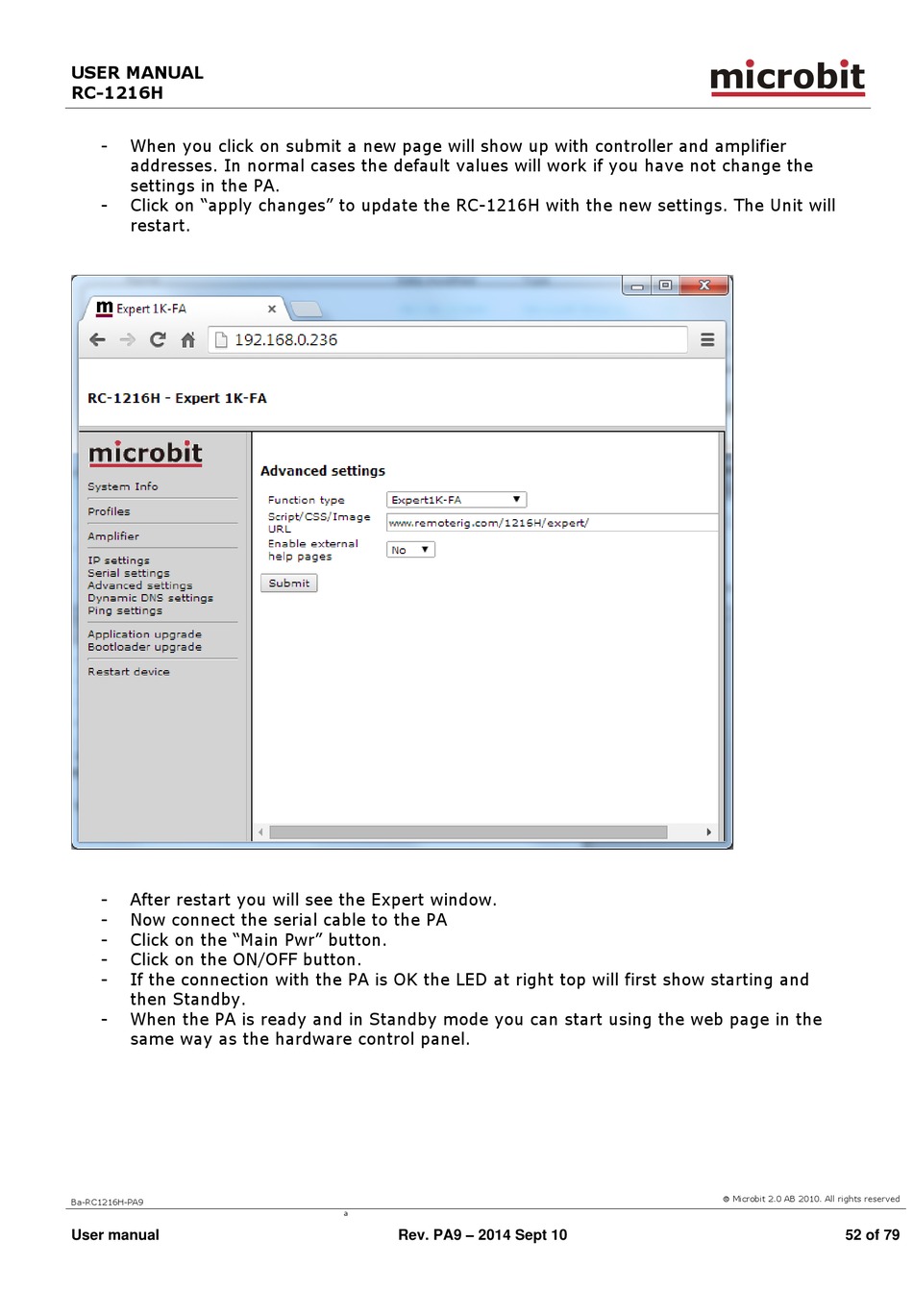

When you click on submit a new page will show up with controller and amplifier
addresses. In normal cases the default values will work if you have not change the
settings in the PA.
-
Click on "apply changes" to update the RC-1216H with the new settings. The Unit will
restart.
-
After restart you will see the Expert window.
-
Now connect the serial cable to the PA
-
Click on the "Main Pwr" button.
-
Click on the ON/OFF button.
-
If the connection with the PA is OK the LED at right top will first show starting and
then Standby.
-
When the PA is ready and in Standby mode you can start using the web page in the
same way as the hardware control panel.
Ba-RC1216H-PA9
User manual
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
52 of 79
