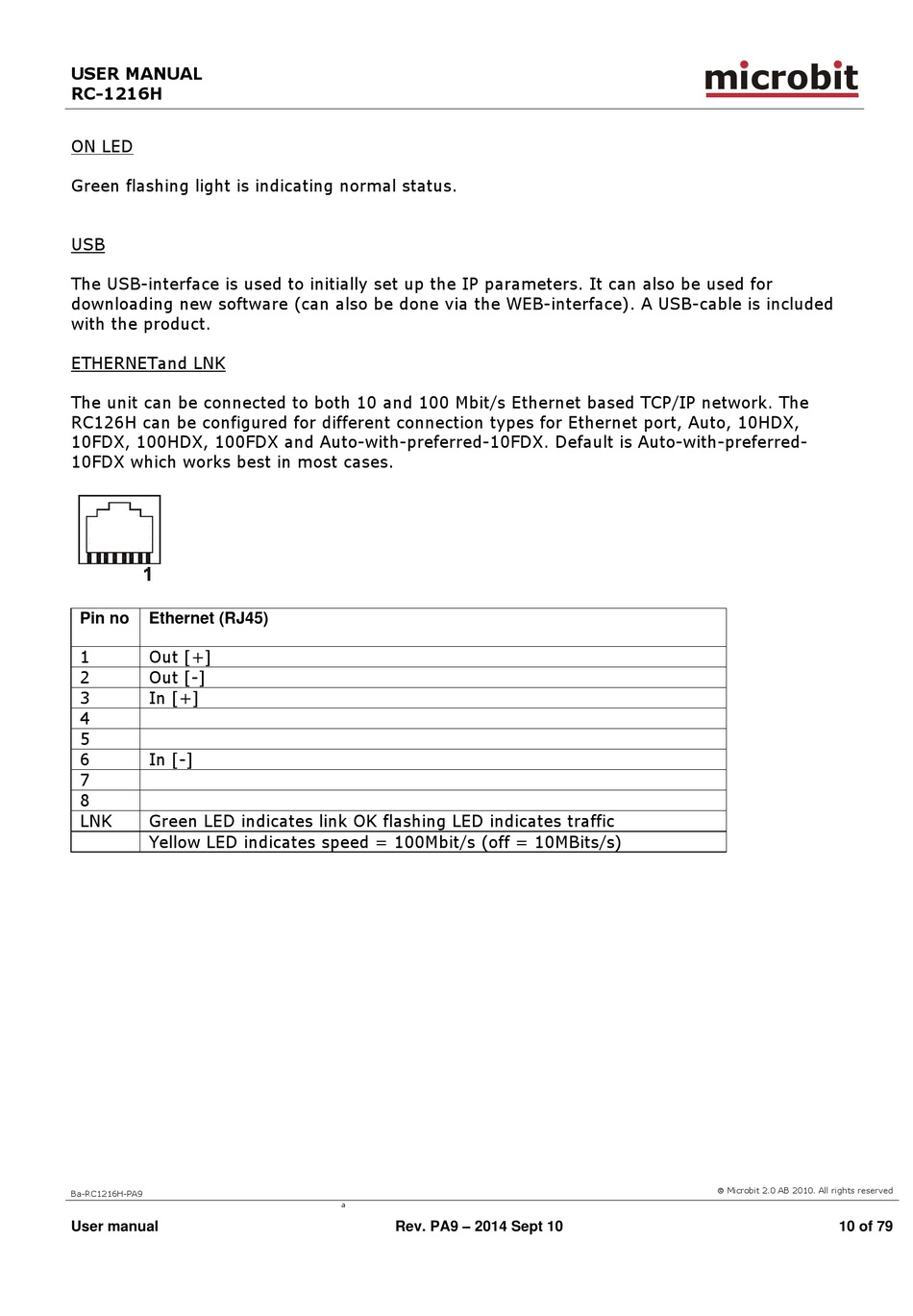

USER MANUAL
RC-1216H
ON LED
Green flashing light is indicating normal status.
USB
The USB-interface is used to initially set up the IP parameters. It can also be used for
downloading new software (can also be done via the WEB-interface). A USB-cable is included
with the product.
ETHERNETand LNK
The unit can be connected to both 10 and 100 Mbit/s Ethernet based TCP/IP network. The
RC126H can be configured for different connection types for Ethernet port, Auto, 10HDX,
10FDX, 100HDX, 100FDX and Auto-with-preferred-10FDX. Default is Auto-with-preferred-
10FDX which works best in most cases.
Pin no
Ethernet (RJ45)
1
Out [+]
2
Out [-]
3
In [+]
4
5
6
In [-]
7
8
LNK
Green LED indicates link OK flashing LED indicates traffic
Yellow LED indicates speed = 100Mbit/s (off = 10MBits/s)
Ba-RC1216H-PA9
User manual
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
10 of 79
