USER MANUAL
RC-1216H

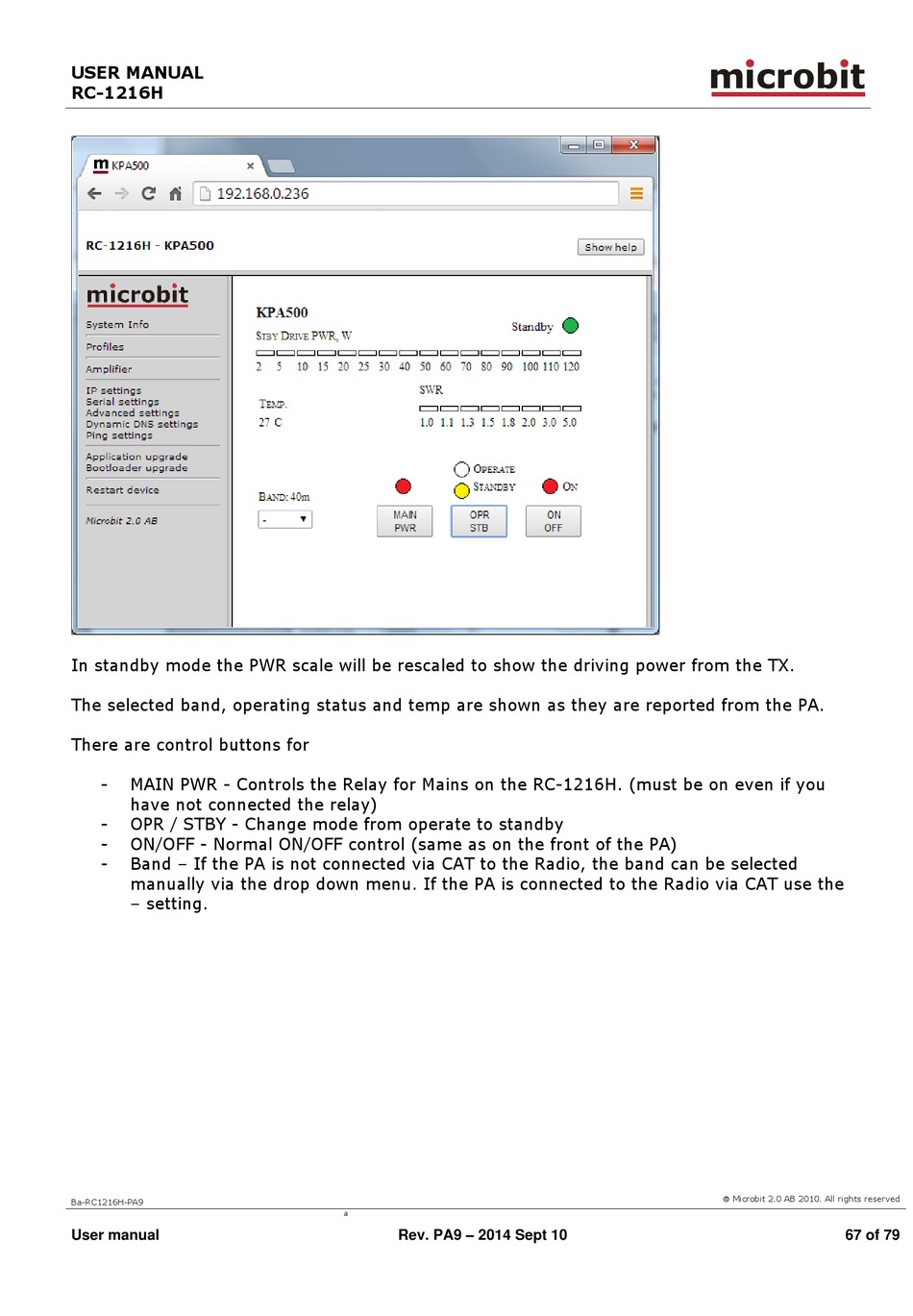

In standby mode the PWR scale will be rescaled to show the driving power from the TX.
The selected band, operating status and temp are shown as they are reported from the PA.
There are control buttons for
-
MAIN PWR - Controls the Relay for Mains on the RC-1216H. (must be on even if you
have not connected the relay)
-
OPR / STBY - Change mode from operate to standby
-
ON/OFF - Normal ON/OFF control (same as on the front of the PA)
-
Band – If the PA is not connected via CAT to the Radio, the band can be selected
manually via the drop down menu. If the PA is connected to the Radio via CAT use the
– setting.
Ba-RC1216H-PA9
User manual
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
67 of 79
