USER MANUAL
RC-1216H
Before you can start using the RC-1216H. You have also to prepare the cabling and do the
Initial setup, see Step by step RC-1216H setup.

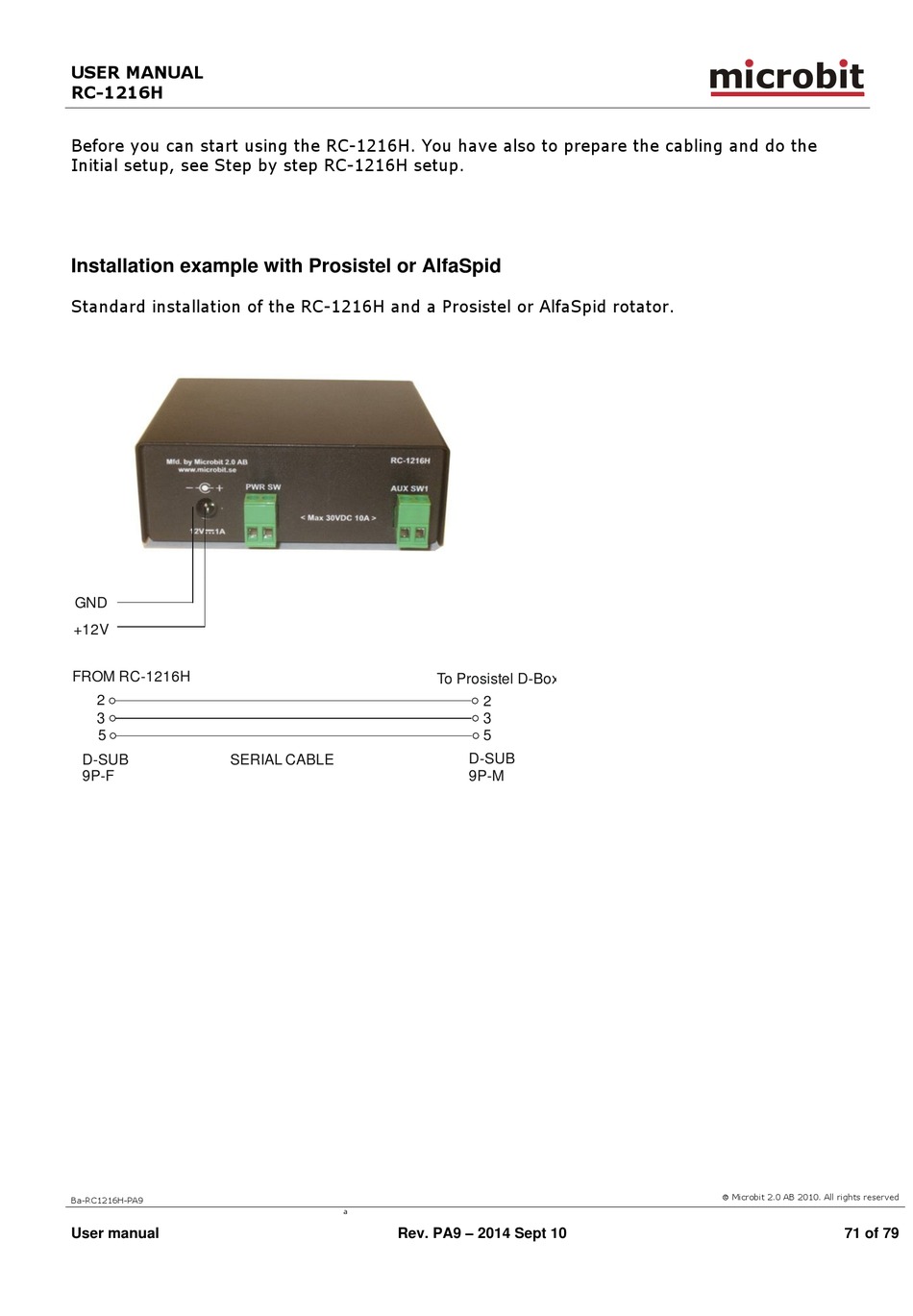

Installation example with Prosistel or AlfaSpid
Standard installation of the RC-1216H and a Prosistel or AlfaSpid rotator.
GND
+12V
FROM RC-1216H
2
3
5
D-SUB
SERIAL CABLE
9P-F
Ba-RC1216H-PA9
User manual
To Prosistel D-Box
2
3
5
D-SUB
9P-M
a
Rev. PA9 – 2014 Sept 10
m crob t
Microbit 2.0 AB 2010. All rights reserved
71 of 79
