USER MANUAL
RC-1216H

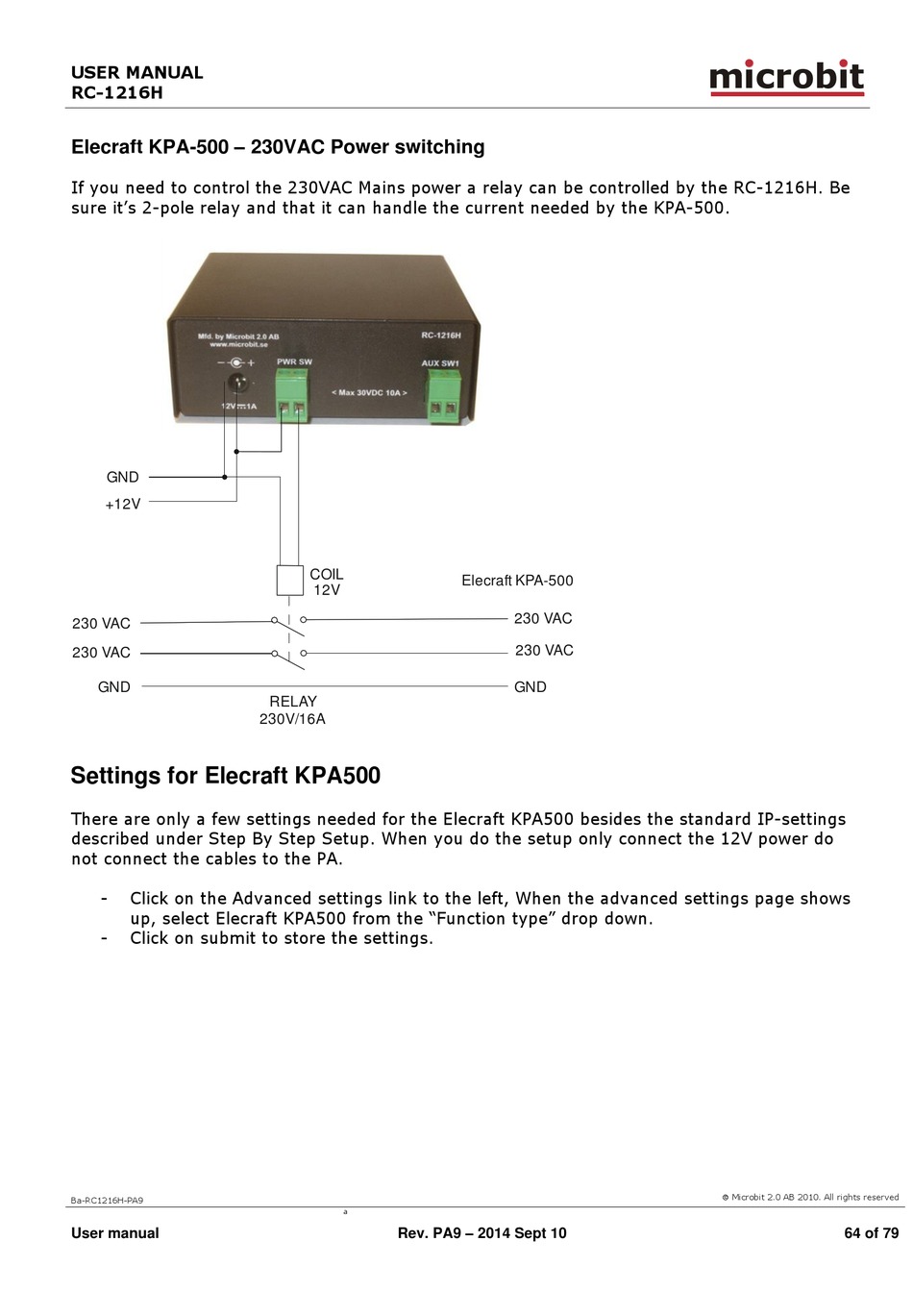

Elecraft KPA-500 – 230VAC Power switching
If you need to control the 230VAC Mains power a relay can be controlled by the RC-1216H. Be
sure it's 2-pole relay and that it can handle the current needed by the KPA-500.
GND
+12V
230 VAC
230 VAC
GND

Settings for Elecraft KPA500

There are only a few settings needed for the Elecraft KPA500 besides the standard IP-settings
described under Step By Step Setup. When you do the setup only connect the 12V power do
not connect the cables to the PA.
- Click on the Advanced settings link to the left, When the advanced settings page shows
up, select Elecraft KPA500 from the "Function type" drop down.
- Click on submit to store the settings.
Ba-RC1216H-PA9
User manual
COIL
12V
RELAY
230V/16A
a
Rev. PA9 – 2014 Sept 10
Elecraft KPA-500 .
230 VAC
230 VAC
GND
m crob t
 Microbit 2.0 AB 2010. All rights reserved
64 of 79
