USER MANUAL
RC-1216H

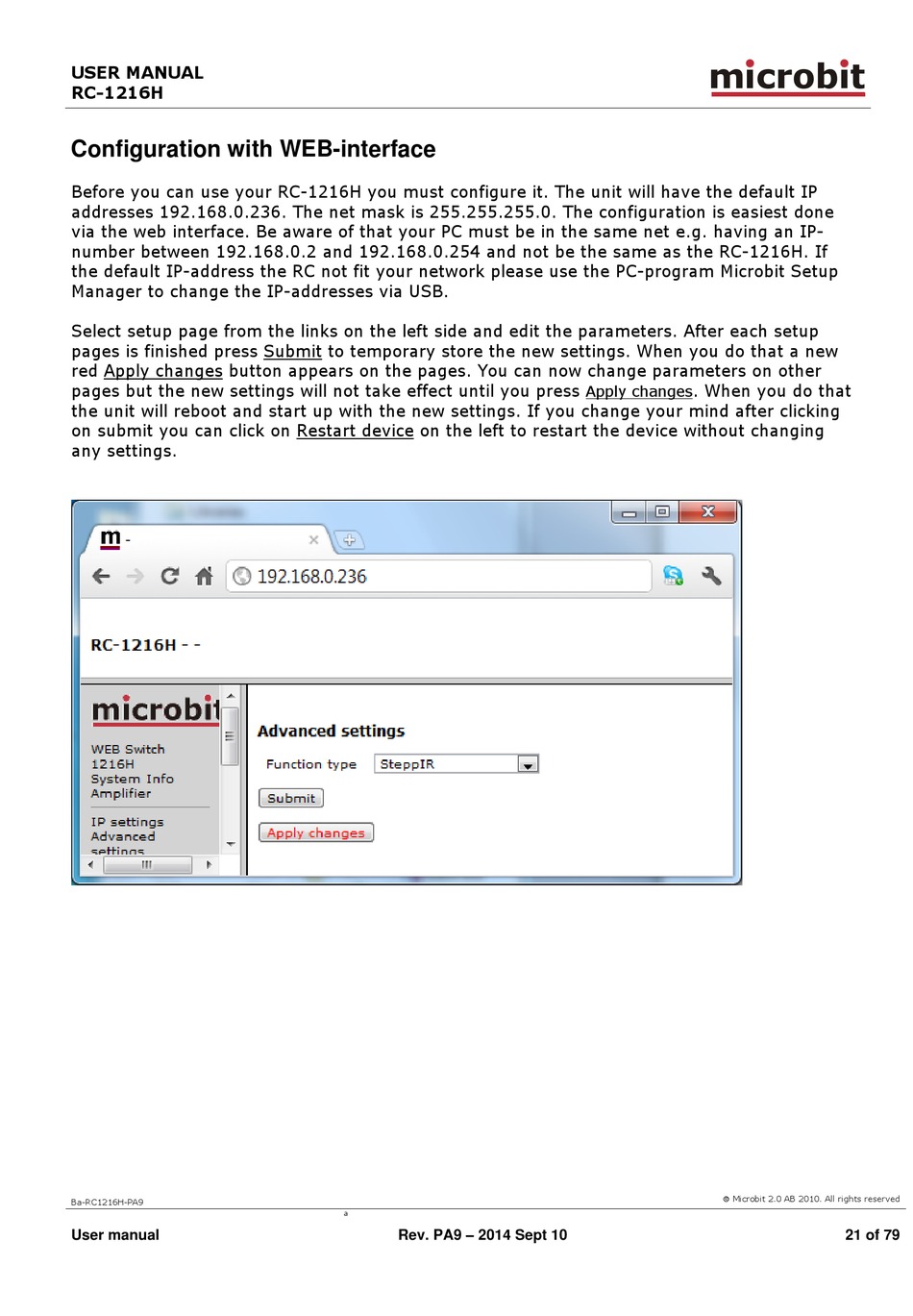

Configuration with WEB-interface

Before you can use your RC-1216H you must configure it. The unit will have the default IP
addresses 192.168.0.236. The net mask is 255.255.255.0. The configuration is easiest done
via the web interface. Be aware of that your PC must be in the same net e.g. having an IP-
number between 192.168.0.2 and 192.168.0.254 and not be the same as the RC-1216H. If
the default IP-address the RC not fit your network please use the PC-program Microbit Setup
Manager to change the IP-addresses via USB.
Select setup page from the links on the left side and edit the parameters. After each setup
pages is finished press Submit to temporary store the new settings. When you do that a new
red Apply changes button appears on the pages. You can now change parameters on other
pages but the new settings will not take effect until you press . When you do that
Apply changes
the unit will reboot and start up with the new settings. If you change your mind after clicking
on submit you can click on Restart device on the left to restart the device without changing
any settings.
