USER MANUAL
RC-1216H

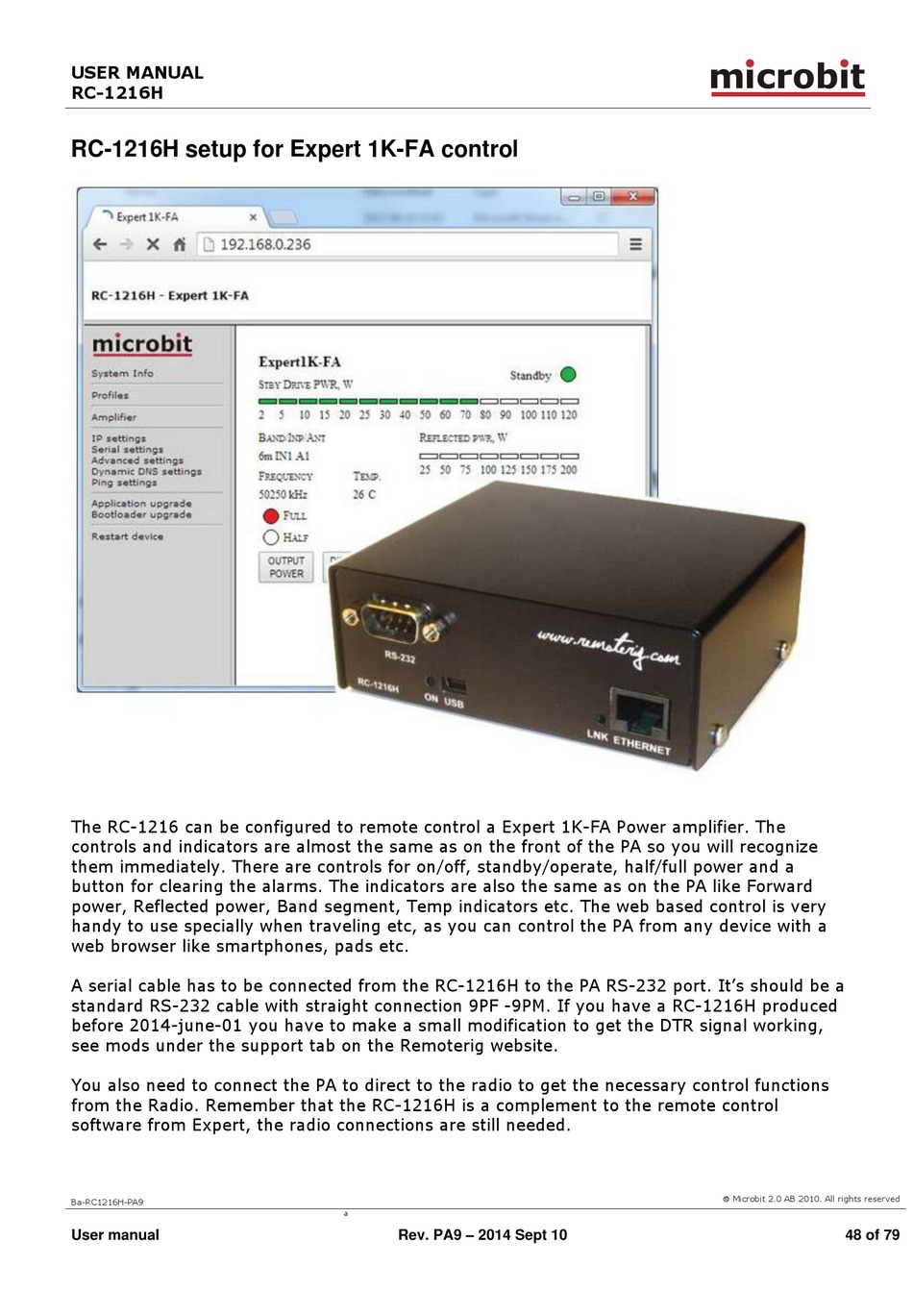

RC-1216H setup for Expert 1K-FA control
The RC-1216 can be configured to remote control a Expert 1K-FA Power amplifier. The
controls and indicators are almost the same as on the front of the PA so you will recognize
them immediately. There are controls for on/off, standby/operate, half/full power and a
button for clearing the alarms. The indicators are also the same as on the PA like Forward
power, Reflected power, Band segment, Temp indicators etc. The web based control is very
handy to use specially when traveling etc, as you can control the PA from any device with a
web browser like smartphones, pads etc.
A serial cable has to be connected from the RC-1216H to the PA RS-232 port. It's should be a
standard RS-232 cable with straight connection 9PF -9PM. If you have a RC-1216H produced
before 2014-june-01 you have to make a small modification to get the DTR signal working,
see mods under the support tab on the Remoterig website.
You also need to connect the PA to direct to the radio to get the necessary control functions
from the Radio. Remember that the RC-1216H is a complement to the remote control
software from Expert, the radio connections are still needed.
