USER MANUAL
RC-1216H

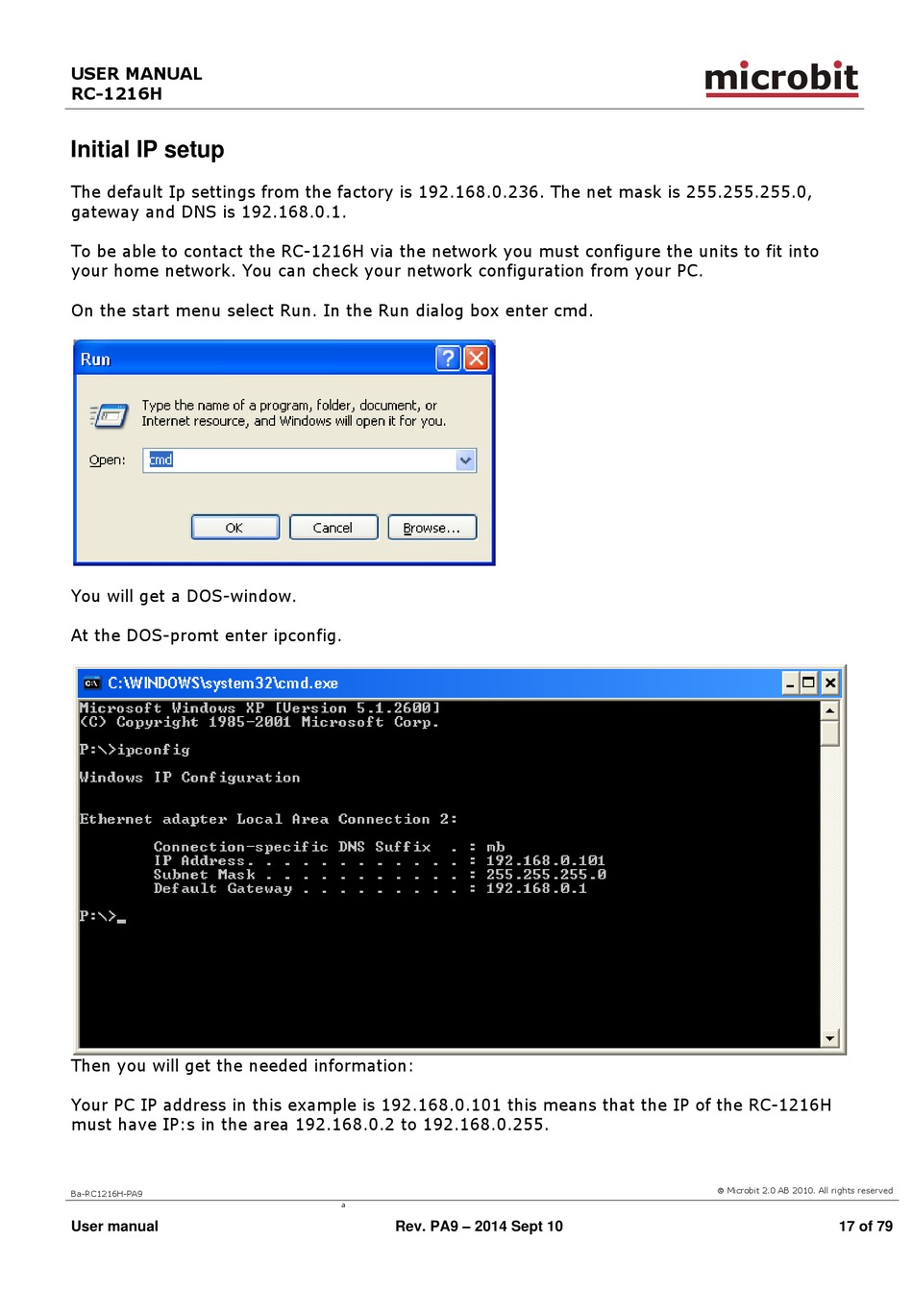

Initial IP setup
The default Ip settings from the factory is 192.168.0.236. The net mask is 255.255.255.0,
gateway and DNS is 192.168.0.1.
To be able to contact the RC-1216H via the network you must configure the units to fit into
your home network. You can check your network configuration from your PC.
On the start menu select Run. In the Run dialog box enter cmd.
You will get a DOS-window.
At the DOS-promt enter ipconfig.
Then you will get the needed information:
Your PC IP address in this example is 192.168.0.101 this means that the IP of the RC-1216H
must have IP:s in the area 192.168.0.2 to 192.168.0.255.
Microbit 2.0 AB 2010. All rights reserved
Ba-RC1216H-PA9
a
Rev. PA9 – 2014 Sept 10
User manual
17 of 79
