USER MANUAL
RC-1216H

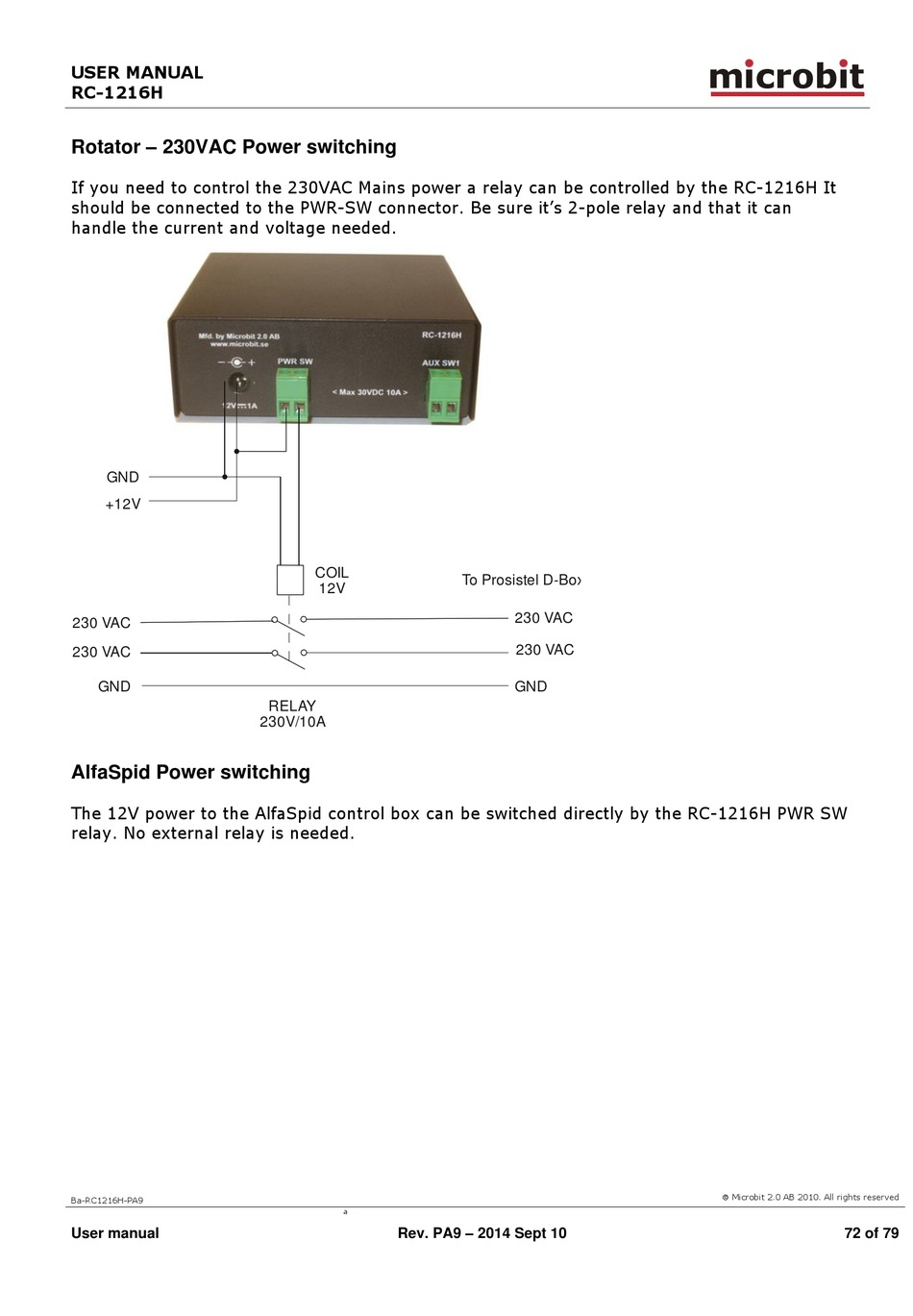

Rotator – 230VAC Power switching
If you need to control the 230VAC Mains power a relay can be controlled by the RC-1216H It
should be connected to the PWR-SW connector. Be sure it's 2-pole relay and that it can
handle the current and voltage needed.
GND
+12V
230 VAC
230 VAC
GND
AlfaSpid Power switching
The 12V power to the AlfaSpid control box can be switched directly by the RC-1216H PWR SW
relay. No external relay is needed.
Ba-RC1216H-PA9
User manual
COIL
12V
RELAY
230V/10A
a
Rev. PA9 – 2014 Sept 10
To Prosistel D-Box
230 VAC
230 VAC
GND
m crob t
Microbit 2.0 AB 2010. All rights reserved
72 of 79
