Industrial Electronic Devices

RECEIVE NMEA 2000 FRAMES:

The means of the fields are:
In the field "PGN" the PGN of the NMEA 2000 message to receive is defined (in the NMEA 2000 protocol, the PGN is an identifier);
In the field
"Source
Address" the address of the device that sends the frame is defined.
If the field
"Transport
If the field
"Fast
Packet" is checked, the frame will use the Fast Packet functions;
In the field
"Start
Byte" the starting byte to save internal memory array is defined;
In the field
"N
Bytes" the number of consecutive byte from the starting one is defined. For example, if the Start Byte is '20' and Num
Bytes is '10', it is possible to read the byte from 20 to 30;
If the field
"Cancel
Data" is checked, when the data is oldest of the time inserted in the "TimeOut Data", the converter sets "0xFF" in
the bytes of the internal memory array reserved for the PGN;
In the field "Mnemonic" the description for the frame is defined.
ADFweb.com S.r.l.

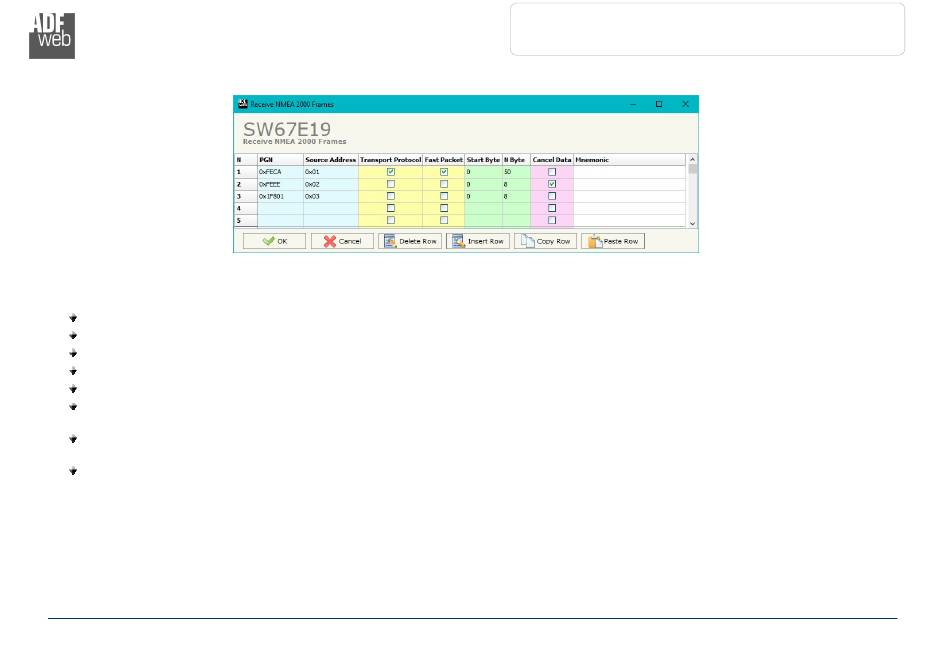

Figure 5: "Receive Frames" window
Protocol" is checked, the frame can use transport protocol functions;
User Manual EtherCAT / NMEA 2000
Document code: MN67E19_ENG
Revision 1.000
Page 19 of 26
