RECEIVE FRAMES:

By pressing the "Receive Frames" button from the main window for SW67C66 (Fig. 2) the "Receive J1939 Frames" window appears (Fig.
7).
The COB inserted in this table contains the data to write on EnOcean side. These frames are accepted by the converter.

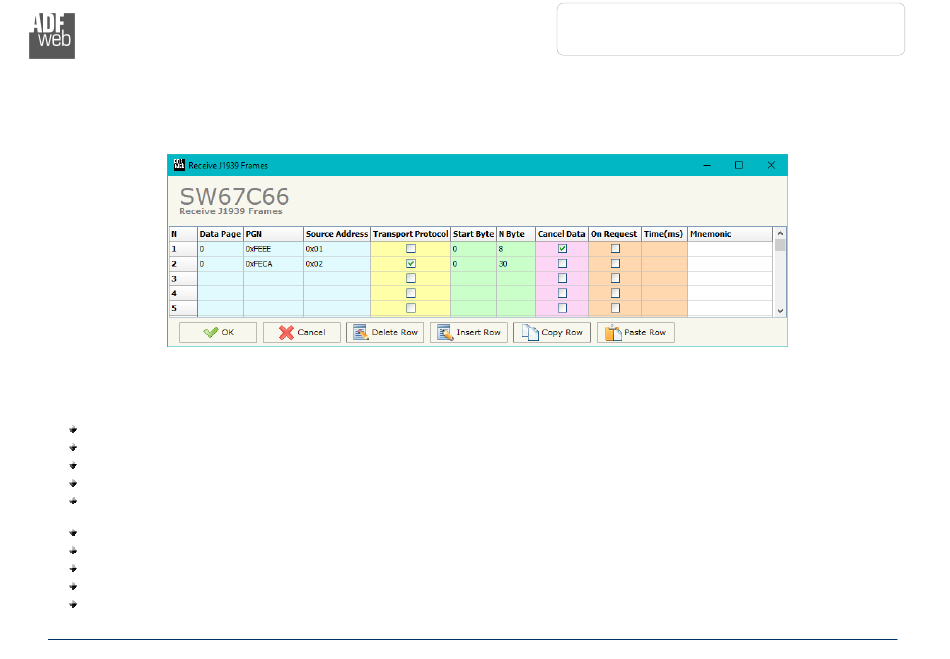

Figure 7: "Receive J1939 Frames Set Access" window
The data of the columns have the following meanings:
If the field "Enable" is checked, the J1939 frame is enabled;
In the field "Cob-ID" the COB of the J1939 frame is defined;
In the field "Type" the type of J1939 packet use for the Cob-ID is defined (2.0A (11 bits) or 2.0B (29 bits));
In the field "Dimension" the number of byte of the COB (from 1 to 8) is defined;
The field "TimeOut" is used for put at zero the data into internal array if the J1939 frame arrives with a frequency less than the time
expressed in the field. If the value in the field is '0', it means that you don't want to use this feature;
In the field "Byte1" insert the byte of the internal array where saving 1st byte of the J1939 message;
In the field "Byte2" insert the byte of the internal array where saving 2nd byte of the J1939 message;
In the field "Byte3" insert the byte of the internal array where saving 3rd byte of the J1939 message;
In the field "Byte4" insert the byte of the internal array where saving 4th byte of the J1939 message;
In the field "Byte5" insert the byte of the internal array where saving 5th byte of the J1939 message;
