12-Locate & Mark Mode Noggin

12.1.3 Units

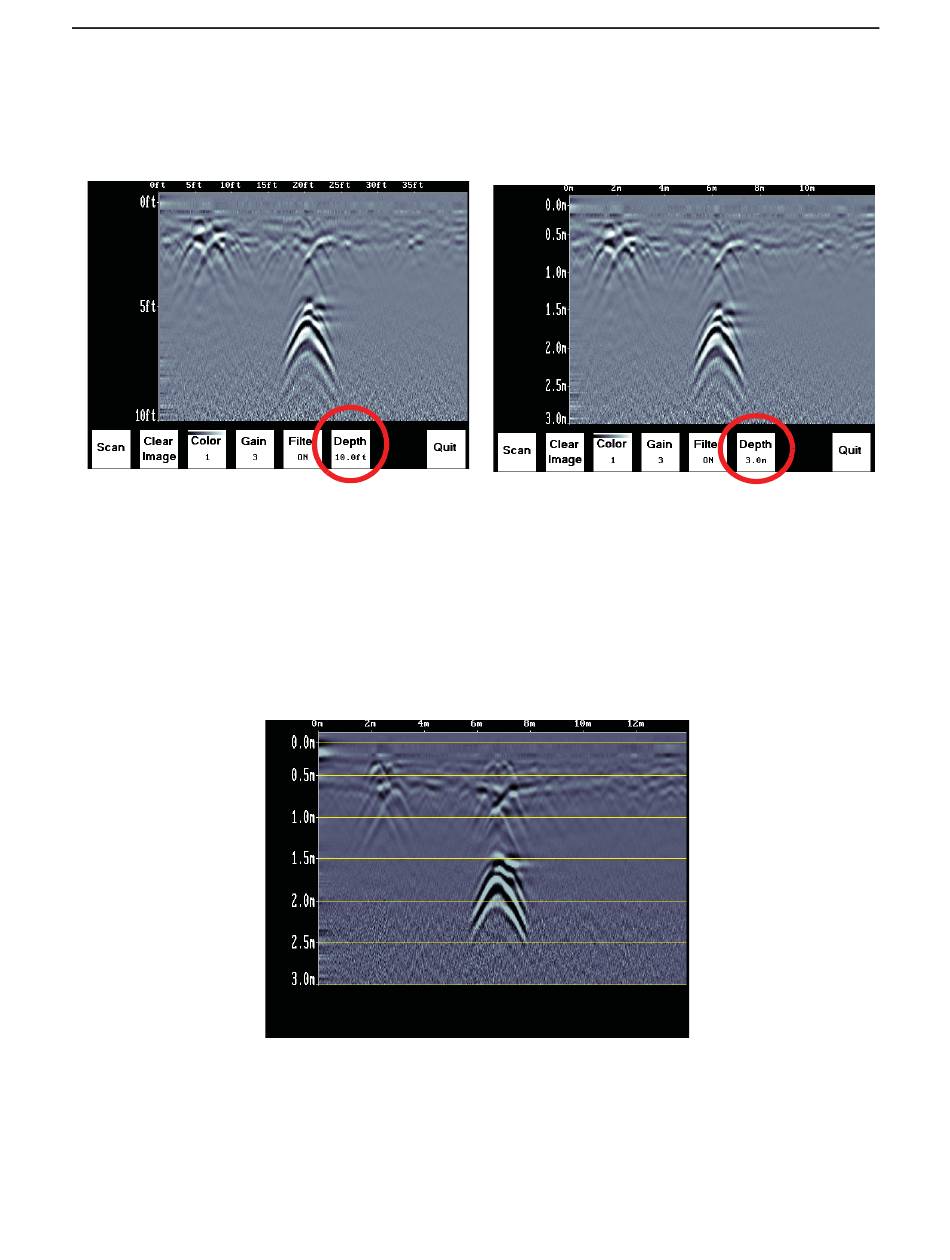

Units for the Position Axis, Depth Axis and Depth Indicator can be either Meters or Feet.

12.1.4 Scale

The Scale button toggles to four different Scale options:
1) Lines means Depth Lines are plotted on the data image to assist with determining
the depth of targets (also see 12.3: p.58).
52
