6-SmartTow Configuration Assembly Noggin

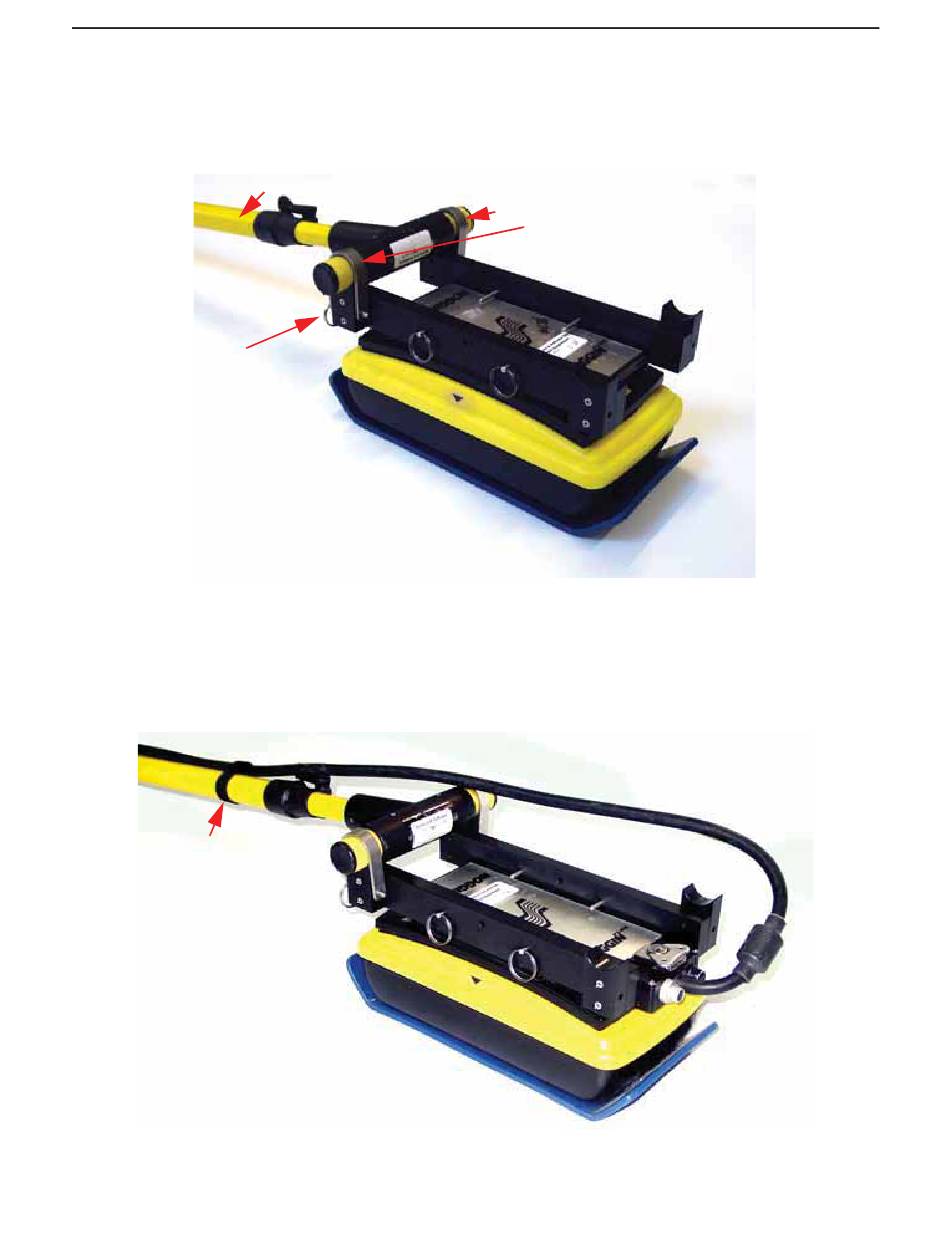

Attach the handle to the front of the SmartTow Brackets with the U-brackets and long metal pins.
The handle should be attached on the end of the Noggin away from the 37 socket cable
connection.
Handle
U Brackets
Long Pins
Connect the large black Noggin-to-DVL cable to the 37-socket connector on the Noggin and latch
into place, ensuring the cable is looped to provide some slack and it is routed along the top of the
SmartTow bracket. Secure the cable to the bracket and along the side of the handle using 2 or 3
Velcro straps.
Velcro Strap
