3-Noggin 100 Assembly

3
Noggin 100 Assembly
Unlike the higher frequency Noggins (250, 500 and 1000 MHz), the Noggin 100 comes with the
antennas and electronics as separate units that need to be assembled.
To assemble, space the 100 MHz antennas about 0.5 meters apart with the mounting blocks
facing up.
Place one end of the Noggin 100 electronics module over one of the antennas and press
downward until it is seated.

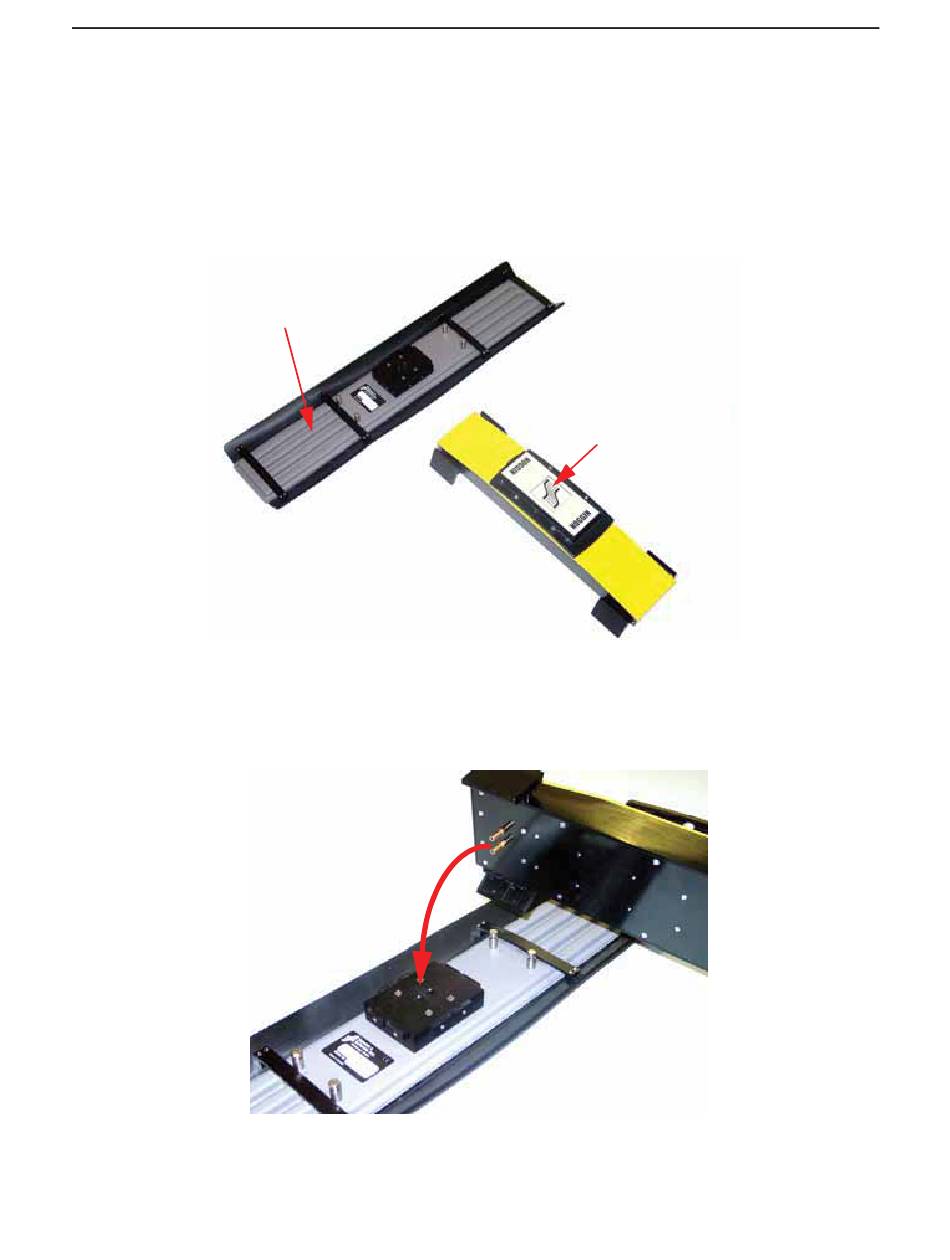

Figure: 3-2 Connecting the electronics to the 100 MHz antenna. The 2 brass sockets in the bottom of the electronics
Antenna
Figure: 3-1 Noggin 100 assembly of electronics to antenna.
mate with the 2 brass pins in the antenna mounting block.
System
Electronics
4
Noggin
