Noggin 12-Locate & Mark Mode
When scanning starts, the screen text or symbols are displayed on the screen to indicate the
buttons to press to Pause data collection (A), save the current screen to an Image file (B) or add
a numbered Fiducial marker at the current position (1 to 8).

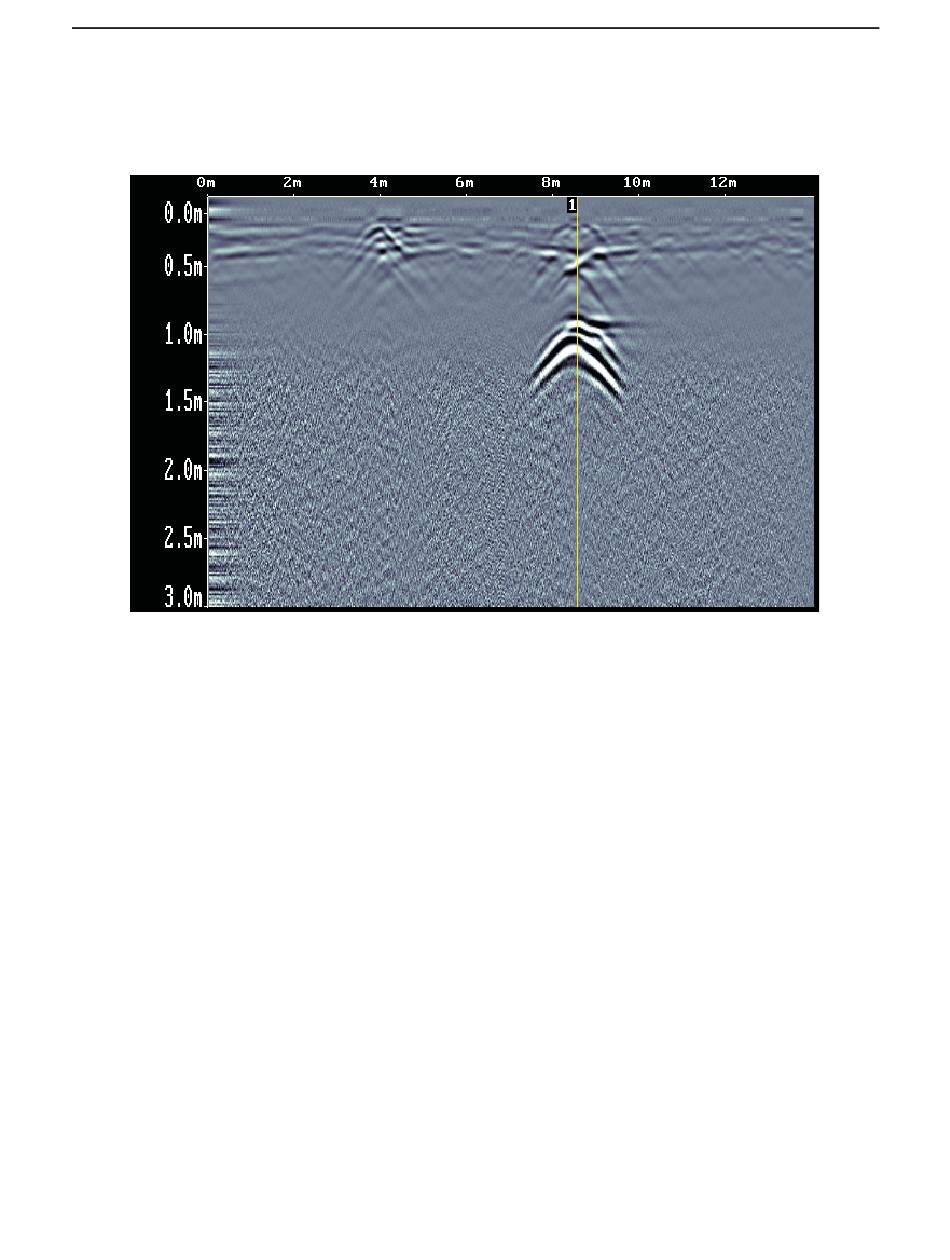

Figure: 12-1 Pressing the 1 to 8 buttons adds a Fiducial, a vertical line in the data image with the number on top.
When the B button is pressed to save an image to the Compact Flash card inserted into the DVL
(10.1: p.45), the image number appears on the bottom of the screen with a message to press
any button to continue.
A message will appear on the screen if there is no Compact Flash card in the DVL. Images are
only saved when a card is present.
See 12.7: p.73 for information on viewing the data images on a PC.
Pressing the Pause button opens the Image Settings Screen to change the current Color
Palette, Depth, Filter and Gain (12.4: p.63).
Stopping and pulling the GPR system backwards along the same path automatically opens the
Locating Screen (12.3: p.58) used to pinpoint the position and depth of a target.
