6-SmartTow Configuration Assembly

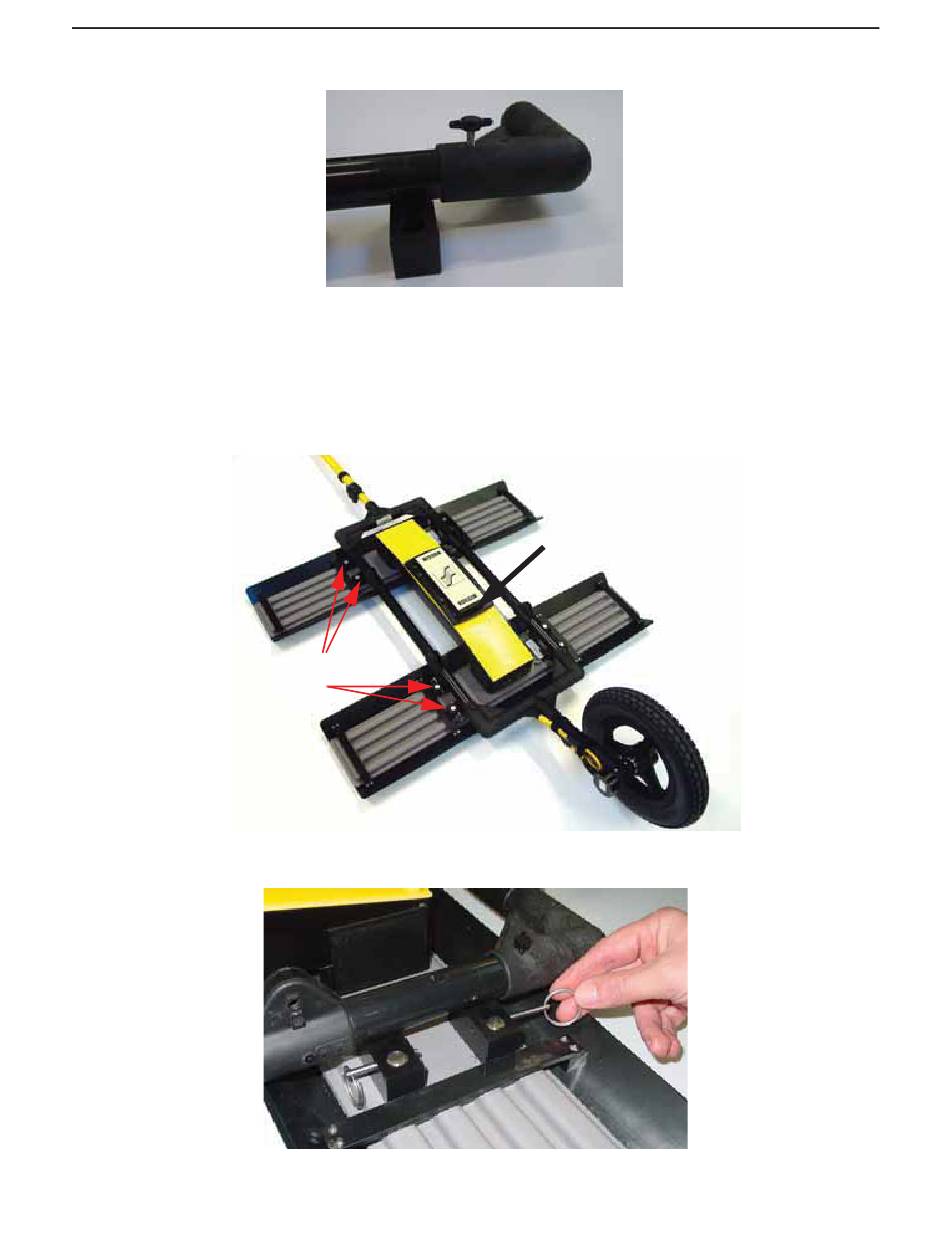

Figure: 6-4 Close-up of thumbscrews used to assemble the Noggin 100 SmartTow frame. Be careful not to strip the
threads!
Place the SmartTow frame over the Noggin 100, aligning the antenna post blocks on the frame
with the antenna mounting posts on the 100 MHz antennas. Ensure the 37 socket cable
connection on the Noggin 100 electronics faces the odometer end of the frame and NOT the
handle end.
37 socket connector
Mounting Posts
Figure: 6-5 Place the SmartTow frame over the Noggin 100 system with the 8 antenna mounting posts inserted in the
post blocks. Ensure the 37-socket connection on the Noggin 100 faces the odometer wheel.
Figure: 6-6 Secure the SmartTow frame to the Noggin 100 by inserting the metal pins into each of the 8 post blocks.
