Sensors & Software Noggin 100 User Manual page 53

Noggin

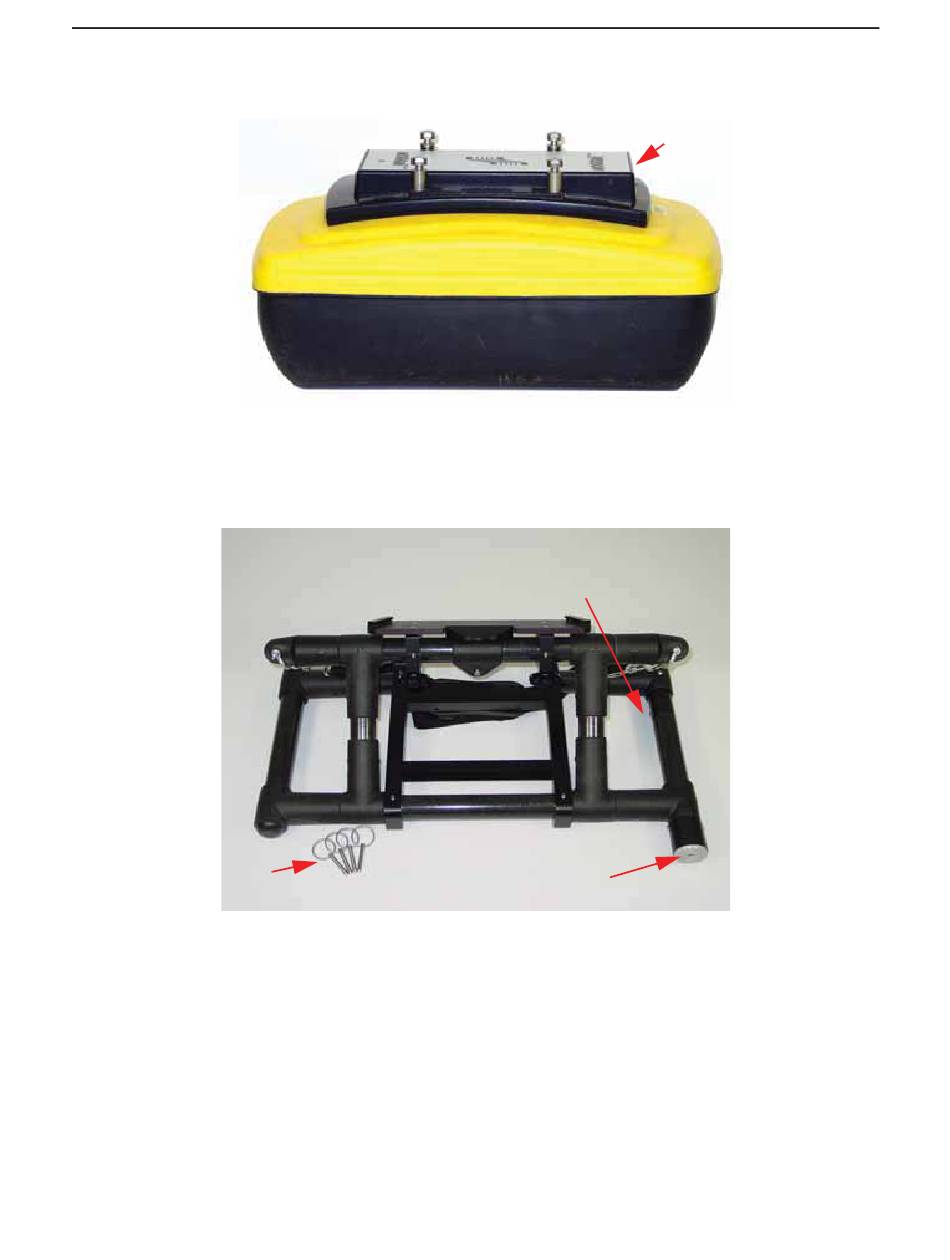

Figure: 8-6 The Noggin used with the Rock Noggin can be either a Noggin 500 (shown here) or a Noggin 1000. The
connections are identical for both systems. The 4 silver mounting posts visible here are used when attaching the frame
Pins
Figure: 8-7 The Rock Noggin frame. On the bottom of the right handle, note the grey speaker that is used to sound
an audible tone as data are collected. Also, on the underside of the right handle, note that Smart button (not visible in
this view) used to collect data. The frame is attached to the Noggin using the 4 metal pins shown (see below). The Dig-
ital Video Logger (DVL) clips onto the shelf at the top of the frame (see Figure 8-11).
8-Rock Noggin Configuration Assembly (Noggin 500 & 1000 only)
to the Noggin (see Figure 8-8).
SmartButton
(underneath)
Speaker
39
Connector
