Noggin 100

Unlike the higher frequency Noggins, the Noggin 100 comes with the antennas and electronics
as separate units that need to be assembled. Assemble the Noggin 100 electronics and
antennas (3: p.4).
The Noggin 100 separation bars need to be assembled before attaching them to the SmartCart
(Figure 5-7, right). For details, see the separate document "Noggin SmartCart Separation Bar
Assembly".
Place the SmartCart over the Noggin 100, aligning the antenna post blocks on the frame with the
antenna mounting posts on the 100 MHz antennas. Ensure the 37 socket cable connection on
the Noggin 100 electronics faces the back (handle end) of the SmartCart.

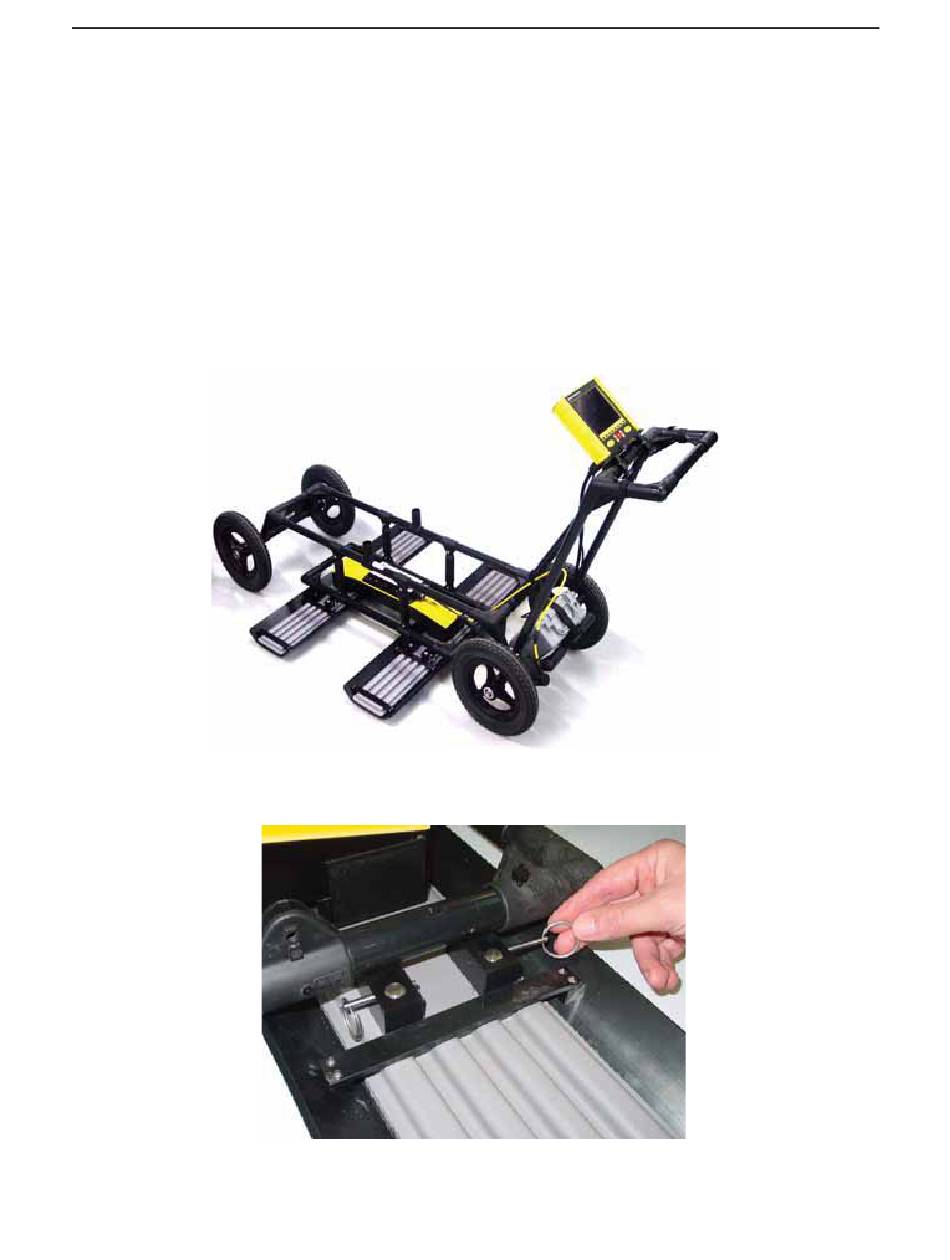

Figure: 5-11 After attaching the separation bars, place the SmartCart over the Noggin 100 system with the 8 antenna
mounting posts inserted in the post blocks. The 37 socket receptacle on the Noggin 100 electronics must face the back
of the SmartCart for the cable to connect properly.
Figure: 5-12 Secure the SmartCart Separation Bars to the Noggin 100 by inserting the pins into each of the 8 post
blocks.
