6-SmartTow Configuration Assembly
Noggin
Latch the 37 pin end of the Noggin-to-DVL cable to the receptacle on the Noggin 100 electronics.
Then route the cable along the frame and up the handle, keeping it away from the electronics
and the antennas. Use the velcro straps to secure the cable to the frame and handle (Figure 6-
7). Ensure that the cable does not sag and contact the electronics or antennas as this will cause
noise in the GPR data. The cable should have a little slack to reduce any stresses on the cable
during data collection.
Connect the yellow odometer cable to the receptacle on the Noggin end of the Noggin-to-DVL
cable. Again, use the velcro straps to route the odometer cable, keeping it away from the
electronics and the antennas (Figure 6-7).
Odometer Cable
Velcro Strap

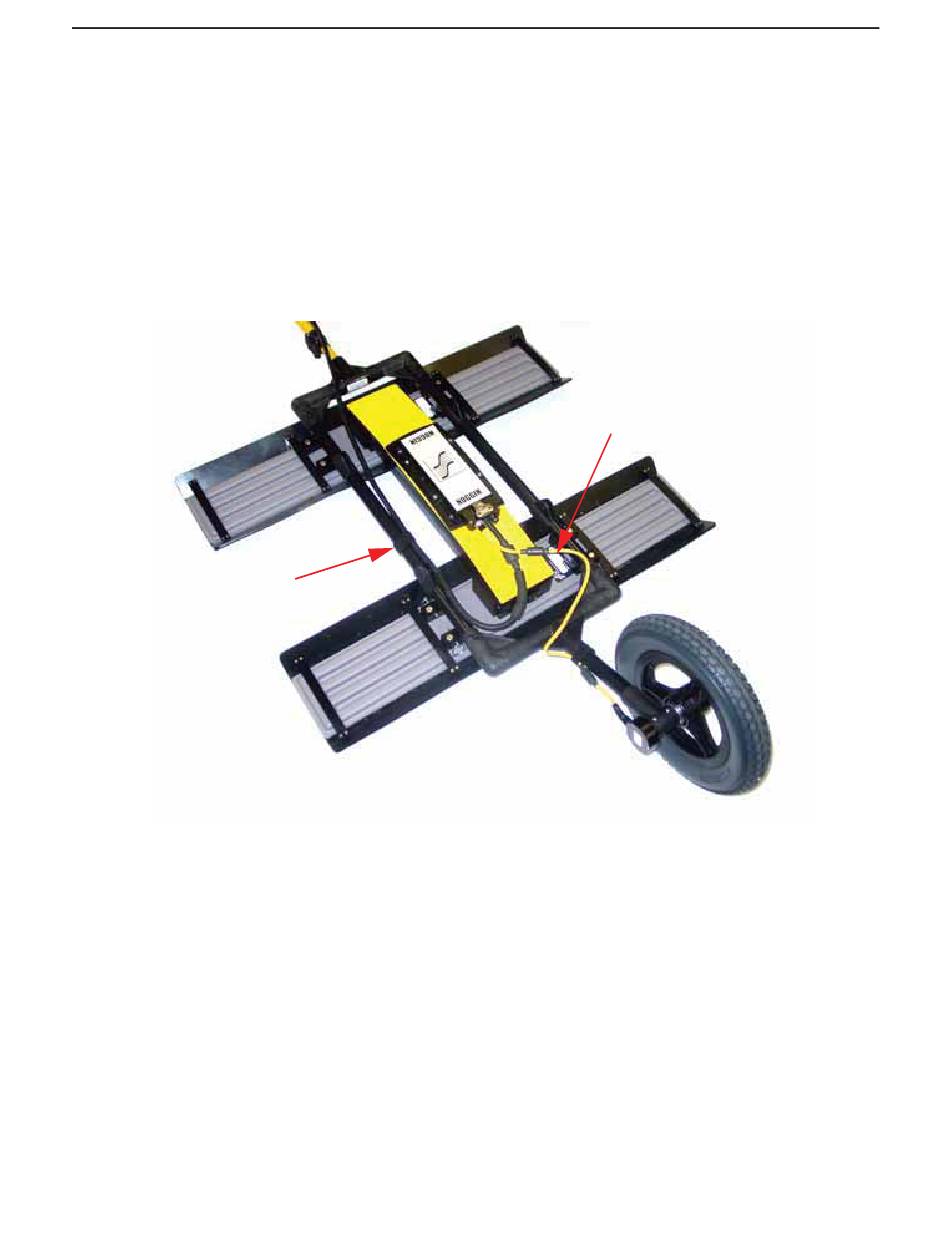

Figure: 6-7 Connect the Noggin-to-DVL cable to the Noggin 100 electronics with the latch. The yellow odometer
cable connects to the small round receptacle on the back of the Noggin-to-DVL cable.
Latch the other end of the Noggin-to-DVL cable to the back of the DVL.
With the SmartTow completely assembled, connect the round 4-pin battery cable to the
receptacle on the SmartCart battery and then go to 11: p.48.
